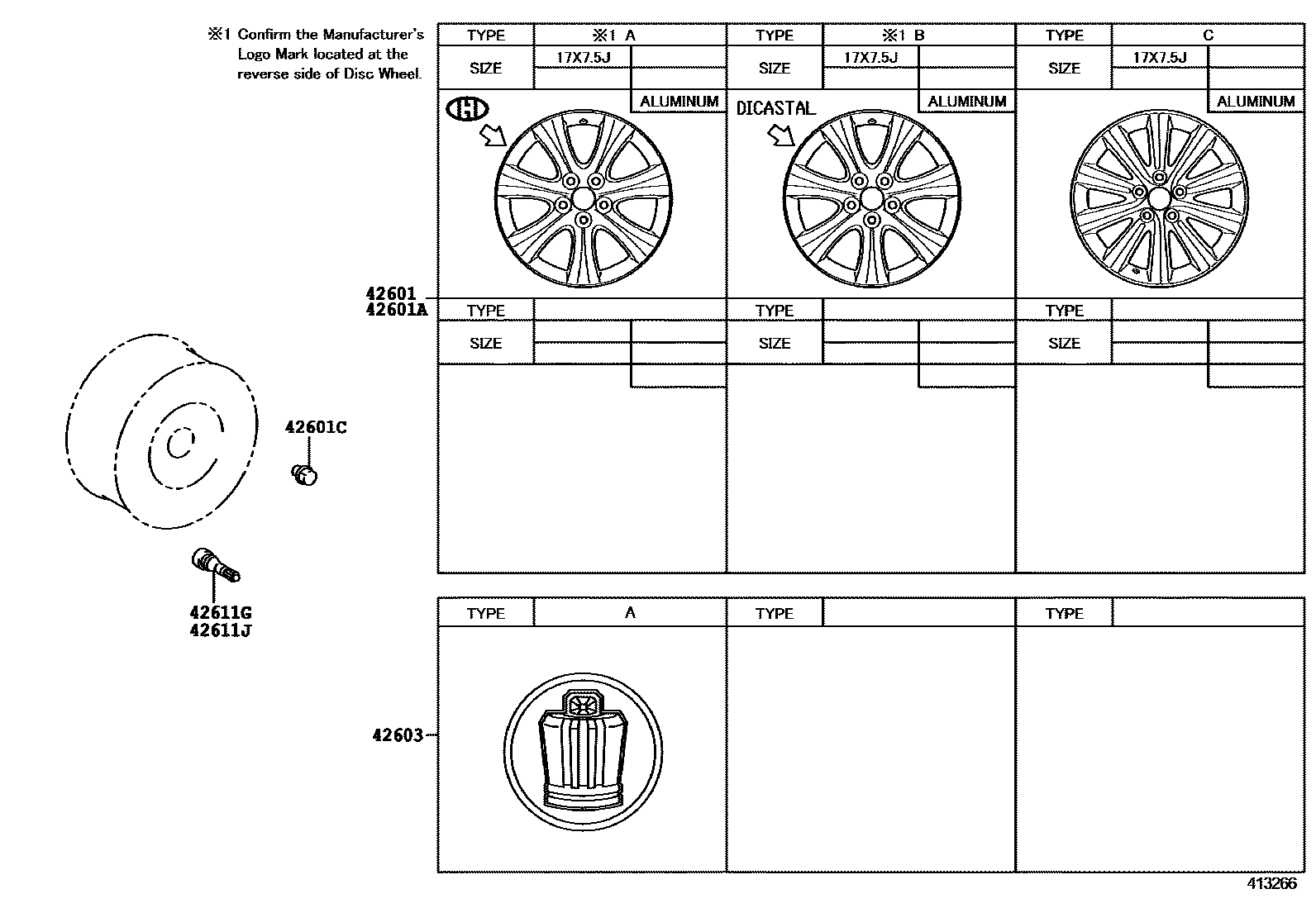

DISC WHEEL & WHEEL CAP

0001 1 0002 1

42601WHEEL, DISC

main42611-0N030×4iGRS202201207

17X7.5J, #,TYPE A:REFER ILLUST.

main42611-0N040×4iGRS208200912-201207

17X7.5J, #,TYPE C:REFER ILLUST.

main42611-0N050×4iGRS202201207

17X7.5J, #,TYPE B:REFER ILLUST.

42601AWHEEL, DISC (FOR SPARE)

main42611-0N030iGRS202201207

17X7.5J, #,TYPE A:REFER ILLUST.

main42611-0N040iGRS208201207

17X7.5J, #,TYPE C:REFER ILLUST.

main42611-0N050iGRS202,UZS200200912-201207

17X7.5J, #,TYPE B:REFER ILLUST.

42601CNUT, HUB (FOR AXLE)

main90942-C1001×20iGRS20#,UZS200200912-201207

42603ORNAMENT SUB-ASSY, WHEEL HUB

main42603-0N010×4iGRS20#,UZS200200912-201207

*ALU,TYPE A:REFER ILLUST.

42611GVALVE (FOR TUBELESS TIRE)

main90942-05028×4iGRS20#,UZS200200912-201207

42611JVALVE (FOR TUBELESS TIRE SPARE)

main90942-05028iGRS20#,UZS200200912-201207

6 parts on this diagram · 2 diagrams in section
