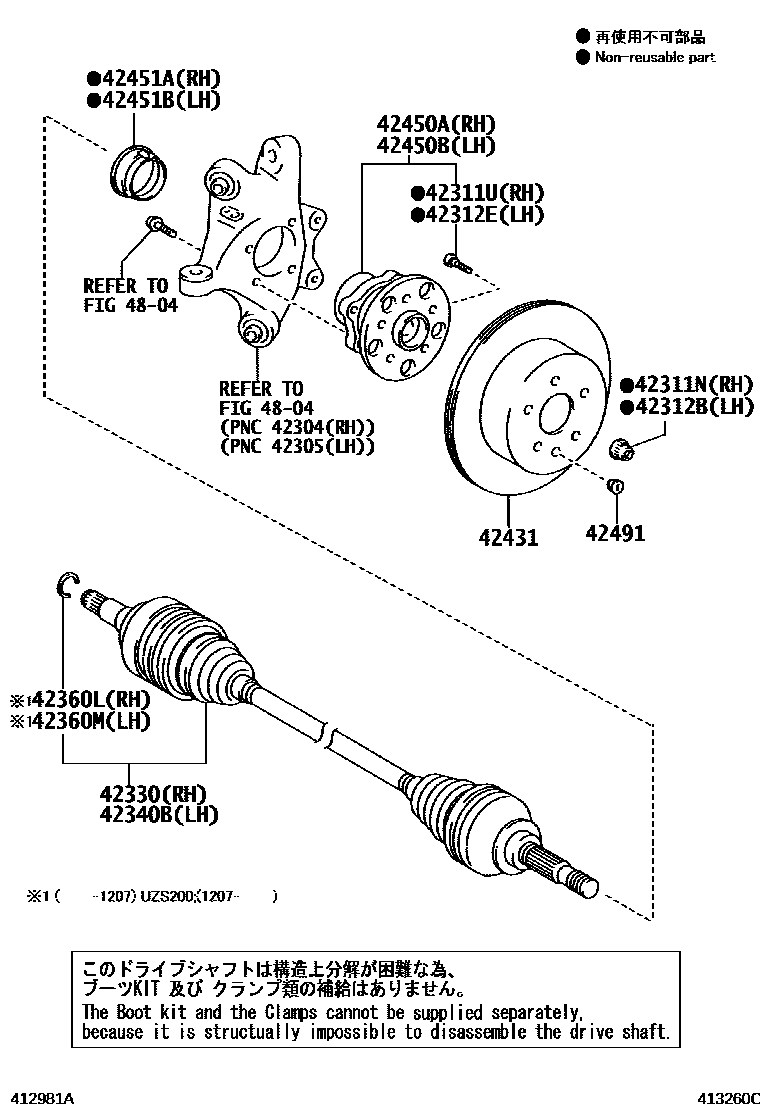

REAR AXLE SHAFT & HUB

42311NNUT(FOR REAR AXLE SHAFT RH)

main90177-26001iGRS20#,UZS200200912-201207

42311UBOLT, HUB(FOR REAR AXLE RH)

main90942-02070iGRS20#,UZS200200912-201207

42312BNUT(FOR REAR AXLE SHAFT LH)

main90177-26001iGRS20#,UZS200200912-201207

42312EBOLT, HUB(FOR REAR AXLE LH)

main90942-02070iGRS20#,UZS200200912-201207

42330SHAFT ASSY, REAR DRIVE, RH

main42330-0N022iGRS20#200912-201008

main42330-0N023iGRS20#201009-201501

main42330-30160iUZS200200912-201207

42340BSHAFT ASSY, REAR DRIVE, LH

main42340-0N022iGRS20#200912-201008

main42340-0N023iGRS20#201009-201501

main42340-30160iUZS200200912-201207

42360LRING, SHAFT SNAP (FOR REAR DRIVE SHAFT INBOARD JOINT RH)

main90521-34003iUZS200200912-201207

42360MRING, SHAFT SNAP (FOR REAR DRIVE SHAFT INBOARD JOINT LH)

main90521-34003iUZS200200912-201207

42431DISC, REAR

main42431-0N020iUZS200200912-201207

main42431-0P010iGRS20#200912-201501

42450AHUB & BEARING ASSY, REAR AXLE, RH

main42410-0N010iGRS20#,UZS200200912-201207

42450BHUB & BEARING ASSY, REAR AXLE, LH

main42410-0N010iGRS20#,UZS200200912-201207

42451ADEFLECTOR, REAR WHEEL BEARING DUST, NO.1 RH

main42451-30020iGRS20#,UZS200200912-201501

42451BDEFLECTOR, REAR WHEEL BEARING DUST, NO.1 LH

main42451-30020iGRS20#,UZS200200912-201501

42491PLUG, SHOE ADJUSTING HOLE (FOR PARKING BRAKE)

main47491-50010iGRS20#,UZS200200912-201501

4804REAR SPRING & SHOCK ABSORBER

→ Go to FIG 48-04

15 parts on this diagram · 1 diagram in section
