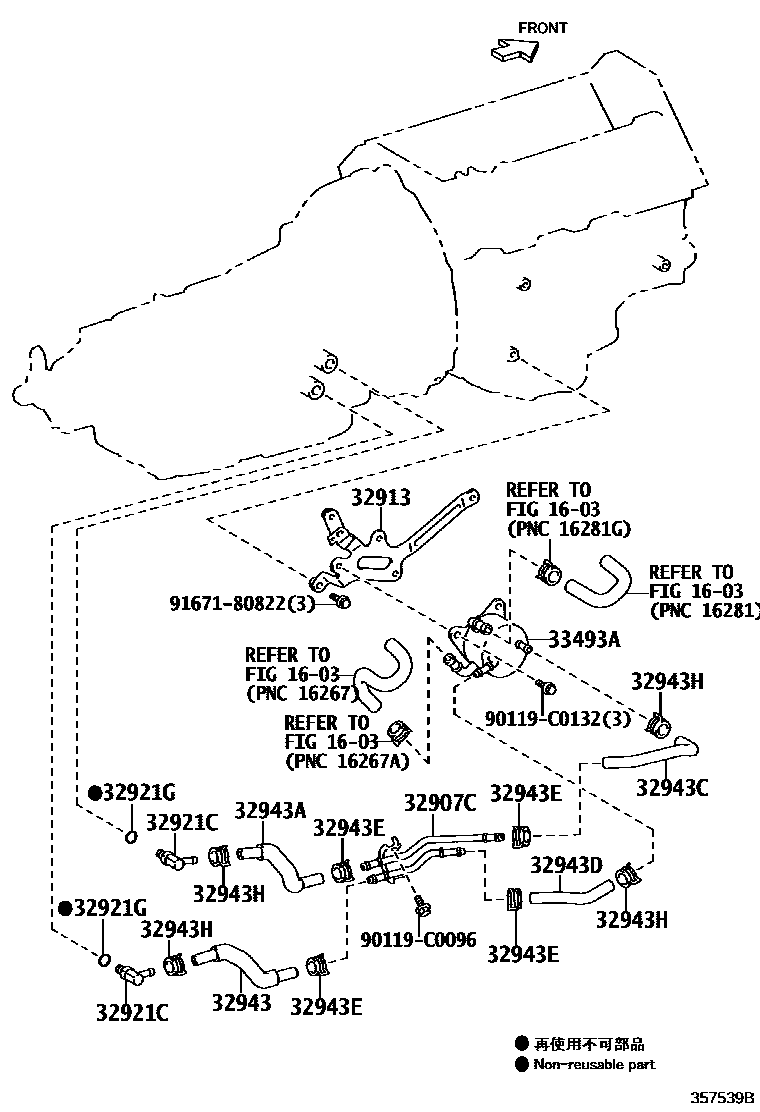

OIL COOLER & TUBE (ATM)

0001 1A761E 0002 1A960E

1603RADIATOR & WATER OUTLET

→ Go to FIG 16-03

32907CTUBE SUB-ASSY, OIL COOLER W/O HOSE, NO.1

main32907-0N010iUZS200200912-201207

32913BRACKET, OIL COOLER

main32913-30050iUZS200200912-201207

32921CUNION(FOR OIL COOLER TUBE)

main90407-14033×2iUZS200200912-201207

32921GRING, O(FOR OIL COOLER TUBE UNION)

main90301-11030×2iUZS200200912-201207

32943HOSE, TRANSMISSION OIL COOLER, NO.1

main32943-0N010iUZS200200912-201207

32943AHOSE, TRANSMISSION OIL COOLER, NO.2

main32943-0N020iUZS200200912-201207

32943CHOSE, TRANSMISSION OIL COOLER, NO.3

main32943-0N030iUZS200200912-201207

32943DHOSE, TRANSMISSION OIL COOLER, NO.4

main32943-0N040iUZS200200912-201207

32943ECLIP, NO.3(FOR OIL COOLER HOSE)

main90466-16004×4iUZS200200912-201207

32943HCLIP, NO.4(FOR OIL COOLER HOSE)

main90466-16004×4iUZS200200912-201207

33493ACOOLER, TRANSMISSION OIL(ATF WARMER)

main33493-30020iGRS20#200912-201207

main33493-30030iUZS200200912-201207

90119C0096

main90119-C0096

90119C0132

main90119-C0132

9167180822

main91671-80822

15 parts on this diagram · 2 diagrams in section
