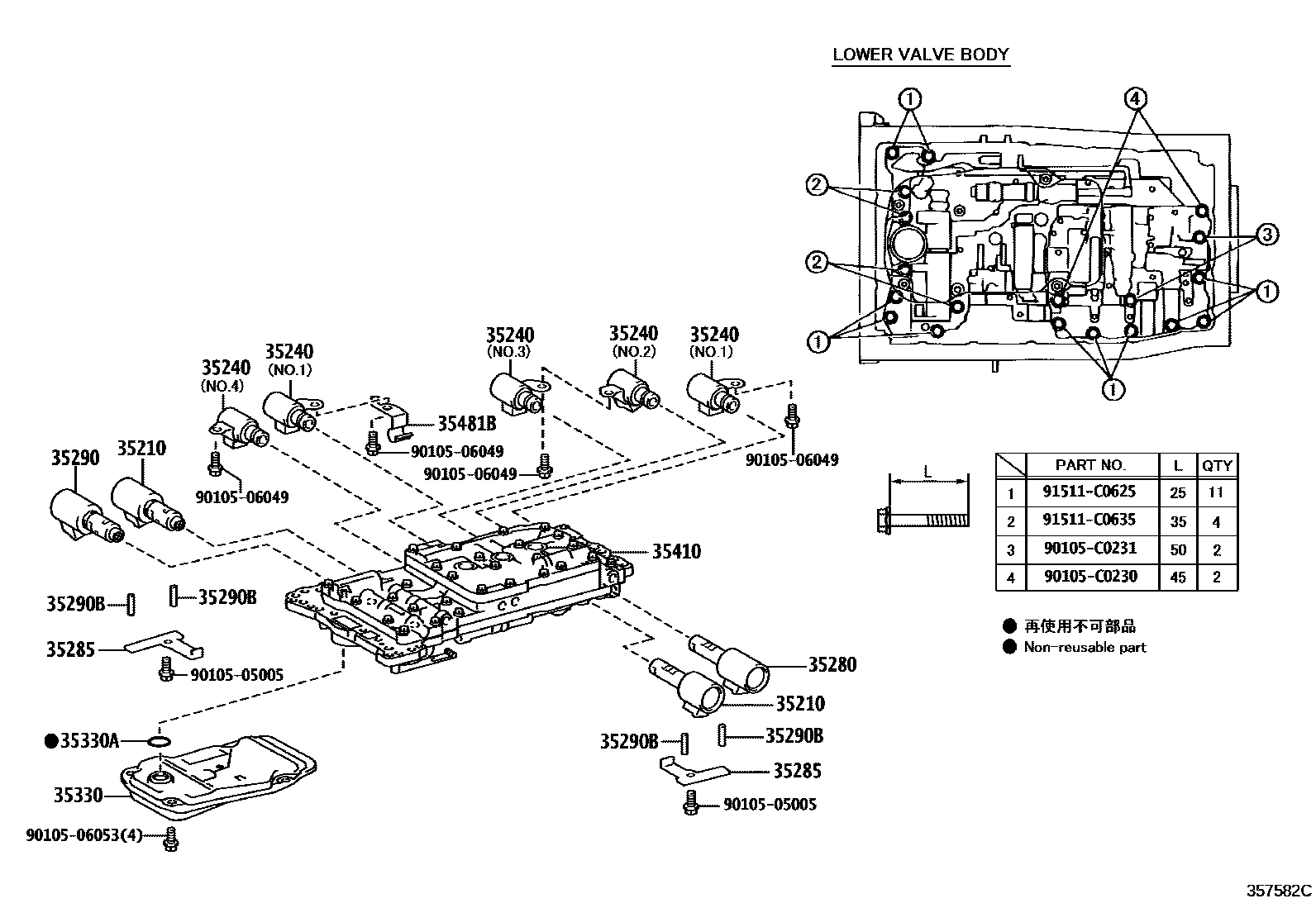

VALVE BODY & OIL STRAINER (ATM)

0001 1A960E 0002 1A761E 0003 1A761E,A960E

35210SOLENOID ASSY, CLUTCH CONTROL, NO.1

main35210-50010×2iGRS20#,UZS200200912-201207

35240SOLENOID ASSY, AUTOMATIC TRANSMISSION 3WAY

main35240-50030×2iGRS20#201207

NO.1

main35240-50040iGRS20#201207

NO.2

main35240-50050iGRS20#,UZS200200912-201207

NO.3

main35240-50060iGRS20#201207

NO.4

35280SOLENOID ASSY, LOCK UP CONTROL

main35280-30050iGRS20#,UZS200200912-201207

35285PLATE, SOLENOID LOCK

main35285-50020×2iGRS20#,UZS200200912-201207

35290SOLENOID ASSY, LINE PRESSURE CONTROL

main35290-34010iGRS20#,UZS200200912-201207

35290BPIN, STRAIGHT (FOR LINE PRESSURE CONTOROL SOLENOID)

main90250-03045×4iGRS20#,UZS200200912-201207

35330STRAINER ASSY, VALVE BODY OIL

main35330-0N010iGRS20#201211

main35330-30090iGRS20#200912-201207

main35330-50020iUZS200200912-201207

35330ARING, O (FOR OIL STRAINER)

main90301-31014iUZS200200912-201207

main90301-C0021iGRS20#200912-201207

35410BODY ASSY, TRANSMISSION VALVE

main35410-0P010iGRS20#200912-201207

main35410-0P011iGRS20#201410

main35410-50120iUZS200200912-201207

35481BCLAMP, VALVE BODY WIRE HARNESS

main35481-50040iGRS20#,UZS200200912-201207

9010505005

main90105-05005

9010506049

main90105-06049

9010506053

main90105-06053

90105C0230

main90105-C0230

90105C0231

main90105-C0231

91511C0625

main91511-C0625

91511C0635

main91511-C0635

17 parts on this diagram · 3 diagrams in section
