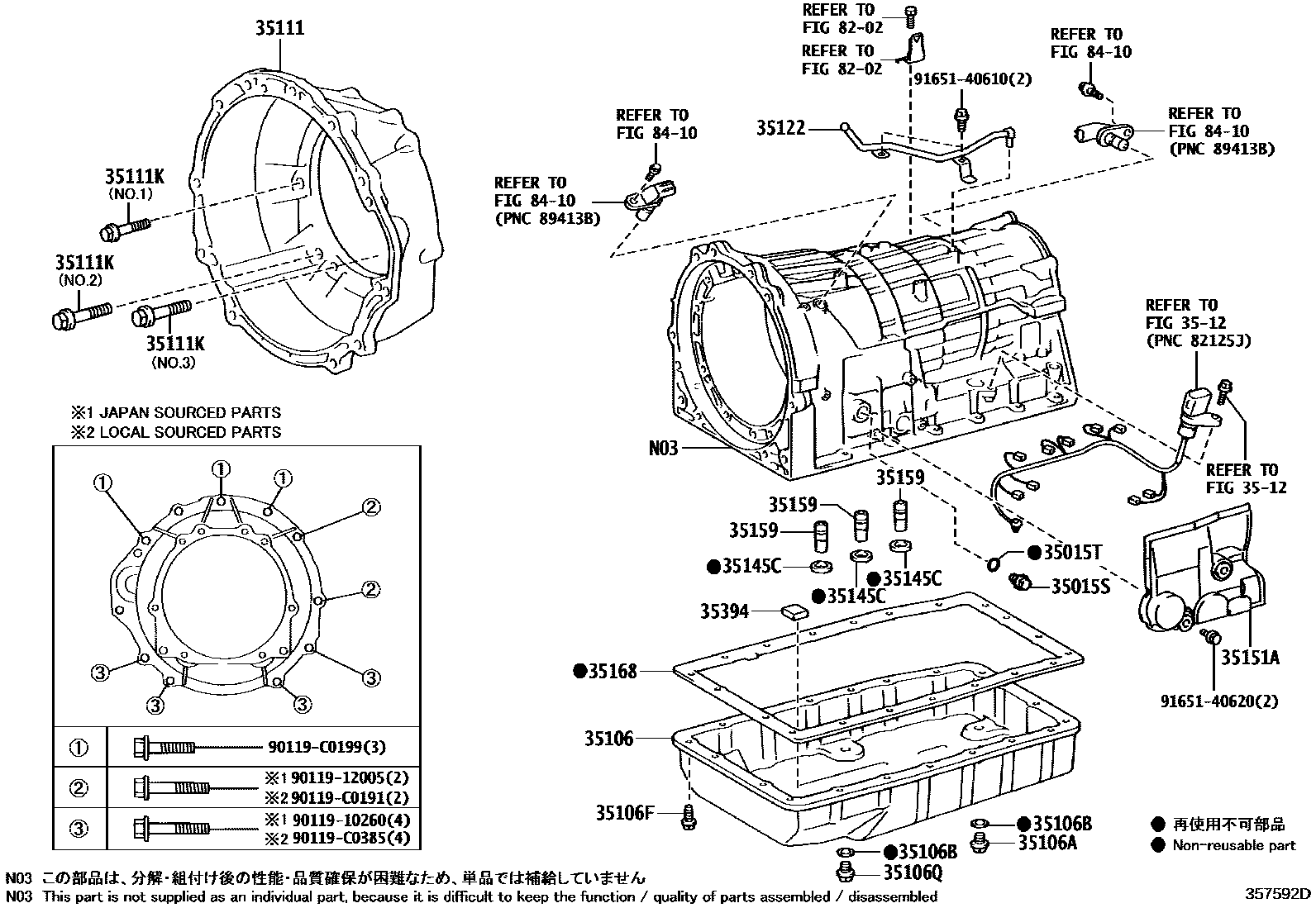

TRANSMISSION CASE & OIL PAN (ATM)

0001 1A960E 0002 1A761E

35015SPLUG, STRAIGHT(FOR TRANSMISSION CASE ADAPTER)

main90341-18059iGRS20#200912-201207

35015TRING, O(FOR TRANSMISSION CASE ADAPTER)

main90301-15004iUZS200200912-201207

main90301-C0010iGRS20#200912-201207

sub90301-15004

35106PAN SUB-ASSY, AUTOMATIC TRANSMISSION OIL

main35106-0P010iGRS20#200912-201207

sub35106-22120

main35106-50040iUZS200200912-201207

35106APLUG SUB-ASSY, DRAIN (ATM)

main90341-10011iGRS20#200912-201207

35106BGASKET, DRAIN PLUG (ATM)

main35178-30010iGRS20#,UZS200200912-201207

35106FBOLT (FOR AUTOMATIC TRANSMISSION OIL PAN)

main90119-06117iGRS20#200912-201207

sub90119-06173

main90119-06173iUZS200200912-201207

35106QPLUG (FOR AUTOMATIC TRANSMISSION OIL PAN)

main90341-10021iGRS20#,UZS200200912-201207

35111HOUSING, AUTOMATIC TRANSMISSION

main35111-0P010iGRS20#200912-201207

sub35111-22110

main35111-50020iUZS200200912-201207

35111KBOLT (FOR TRANSMISSION HOUSING & CASE SETTING)

main90119-10232iGRS20#201207

*10-1.5PX35-30,NO.1

main90119-10232iGRS20#,UZS200200912-201207

*10-1.5PX35-30

main90119-10947iGRS20#,UZS200200912-201207

*10-1.50PX35-29.3

main90119-10947iGRS20#201207

*10-1.50PX35-29.3,NO.3

main90119-12378iGRS20#,UZS200200912-201207

*12-1.75PX38-30

main90119-12378iGRS20#201207

*12-1.75PX38-30,NO.2

3512

35122TUBE, BREATHER (FOR AUTOMATIC TRANSAXLE)

main90930-03171iUZS200200912-201207

main90930-03181iGRS20#200912-201207

35145CGASKET, TRANSAXLE CASE

main35145-60020iGRS20#,UZS200200912-201207

35151ACOVER, TRANSAXLE CASE, UPPER

main35151-22020iGRS20#200912-201207

main35151-30040iUZS200200912-201207

35159GASKET, BRAKE DRUM

main35159-60010iGRS20#200912-201207

35168GASKET, AUTOMATIC TRANSMISSION OIL PAN

main35168-22020iGRS20#200912-201207

main35168-60010iUZS200200912-201207

35394MAGNET, OIL CLEANER (FOR TRANSMISSION)

main35394-0P010iGRS20#200912-201207

sub35394-30011

main35394-30011iUZS200200912-201207

8202

8410

9011910260

main90119-10260

9011912005

main90119-12005

90119C0191

main90119-C0191

90119C0199

main90119-C0199

90119C0385

main90119-C0385

9165140610

main91651-40610

9165140620

main91651-40620

25 parts on this diagram · 2 diagrams in section
