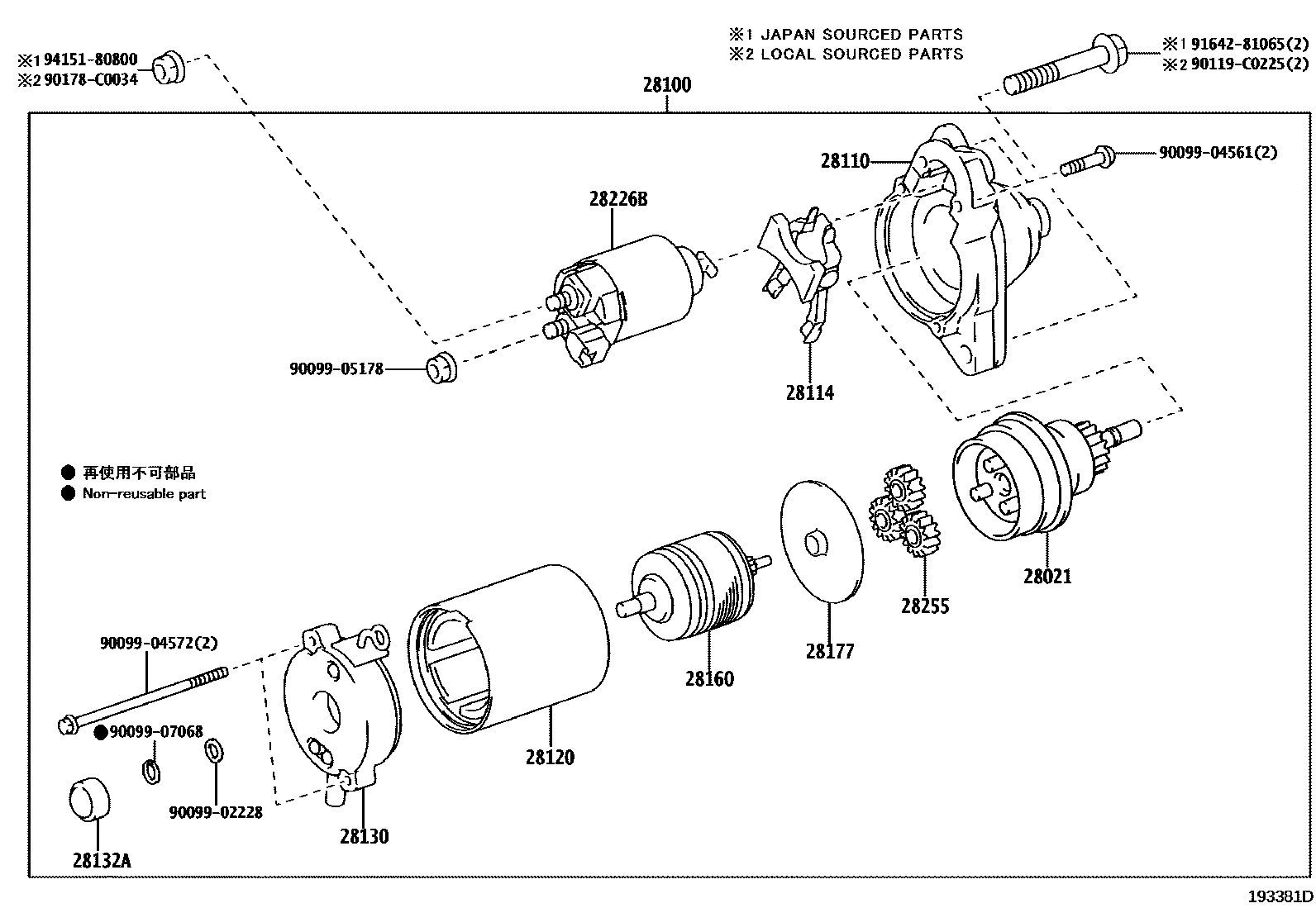

STARTER

0001 112V 1.7KW 0002 112V 2.0KW

28021CLUTCH SUB-ASSY, STARTER CENTER BEARING

main28021-0P010i3GRFE,5GRFE..GRS20#201103-201207

main28021-21060i3GRFE,5GRFE..GRS20#200912-201103

28100STARTER ASSY

main28100-0P011i3GRFE,5GRFE..GRS20#200912-201207

12V 1.7KW

main28100-50110i3UZFE..UZS200200912-201207

12V 2.0KW

28110HOUSING ASSY, STARTER DRIVE

main28110-31040i3GRFE,5GRFE..GRS20#200912-201207

28114PIN, STARTER DRIVE LEVER SET

main28114-21060i3GRFE,5GRFE..GRS20#200912-201207

28120YOKE ASSY, STARTER

main28120-0H120i3GRFE,5GRFE..GRS20#200912-201207

main28120-54380i3UZFE..UZS200200912-201207

28130FRAME ASSY, STARTER COMMUTATOR END

main28130-0P010i3GRFE,5GRFE..GRS20#200912-201207

28132ACOVER, STARTER COMMUTATOR END FRAME

main28132-28040i3GRFE,5GRFE..GRS20#200912-201207

28160ARMATURE ASSY, STARTER

main28160-21060i3GRFE,5GRFE..GRS20#200912-201207

main28160-75120i3UZFE..UZS200200912-201207

28177PLATE(FOR STARTER ARMATURE)

main28177-28040i3GRFE,5GRFE..GRS20#200912-201207

28226BSTARTER KIT, REPAIR SERVICE

main28226-22061i3GRFE,5GRFE..GRS20#200912-201207

28255GEAR, PLANET

main28255-20020i3GRFE,5GRFE..GRS20#200912-201207

9009902228

main90099-02228

9009904561

main90099-04561

9009904572

main90099-04572

9009905178

main90099-05178

9009907068

main90099-07068

90119C0225

main90119-C0225

90178C0034

main90178-C0034

9164281065

main91642-81065

9415180800

main94151-80800

20 parts on this diagram · 2 diagrams in section
