STANDARD TOOL

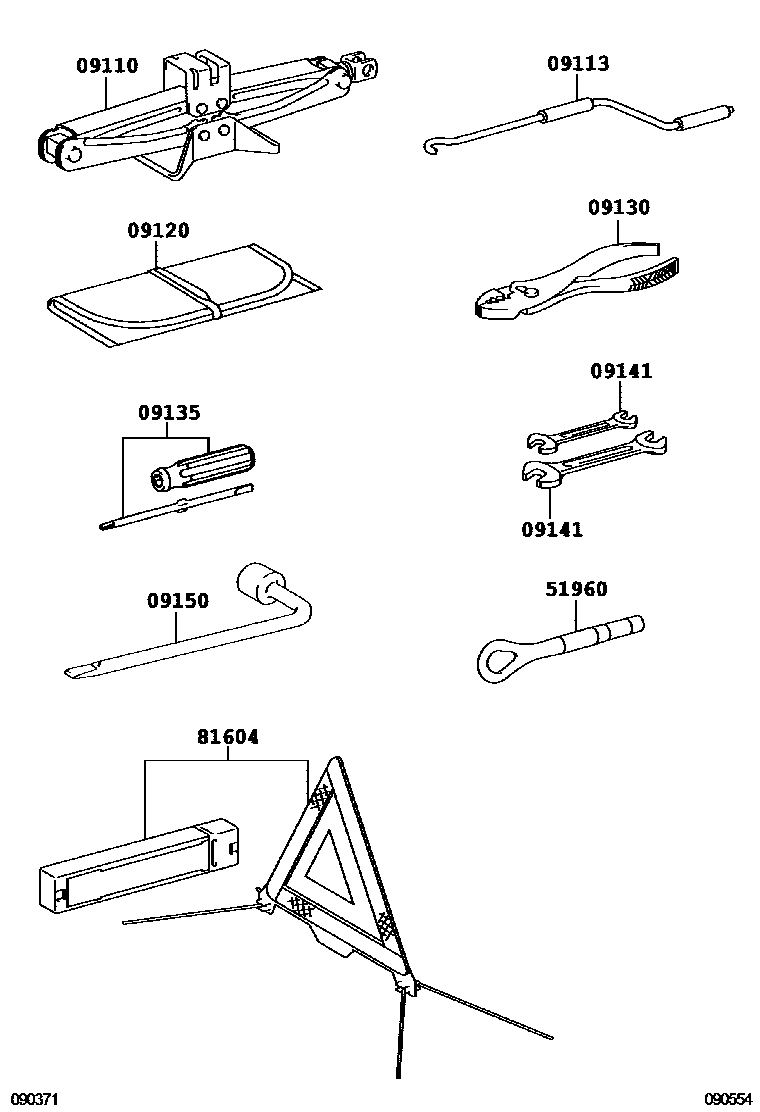

Parts diagram

09110JACK ASSY

main09111-0N011i200912-201207

09113HANDLE, JACK

main09113-0N010i200912-201207

09120BAG, TOOL

main09120-0N010i200912-201207

09130PLIERS

main09130-0N010i200912-201207

09135DRIVER, SCREW

main09135-0N010i200912-201207

09141SPANNER

main09141-0N010i200912-201207

8 X 10

main09141-0N020i200912-201207

12 X 14

09150WRENCH, HUB NUT BOX

main09150-0D020i200912-201207

51960HOOK ASSY, FRONT

main51961-0N020i200912-201207

81604REFLECTOR SET, TRIANGLE

main81604-02030i200912-201207

9 parts on this diagram · 1 diagram in section
