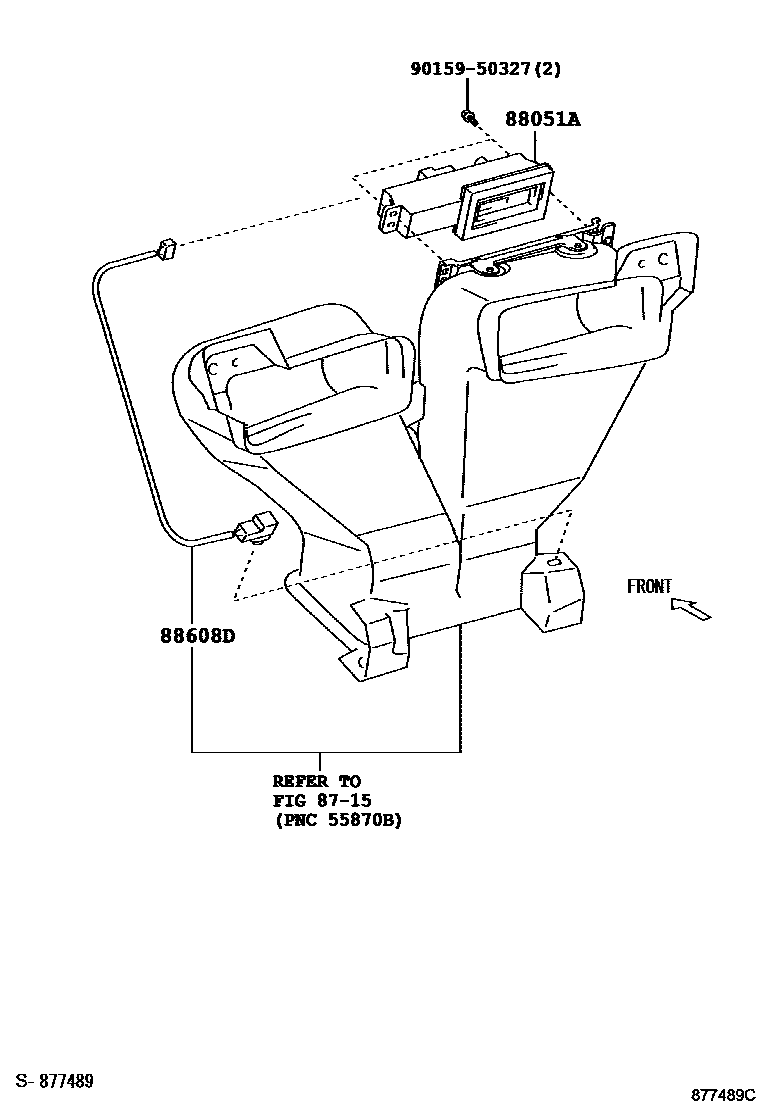

AIR PURIFIER OR ION GENERATOR

8715HEATING & AIR CONDITIONING - CONTROL & AIR DUCT

→ Go to FIG 87-15

88051AGENERATOR SUB-ASSY,ION

main88051-22010iGRS18#..25ROY,ROY,ROYEX,ROYG200502-200911

88608DHARNESS SUB-ASSY, WIRING AIR INDICATER, NO.2

main88608-0N020iGRS18#..25ROY,ROY,ROYEX,ROYG200502-200911

9015950327

main90159-50327

4 parts on this diagram · 1 diagram in section
