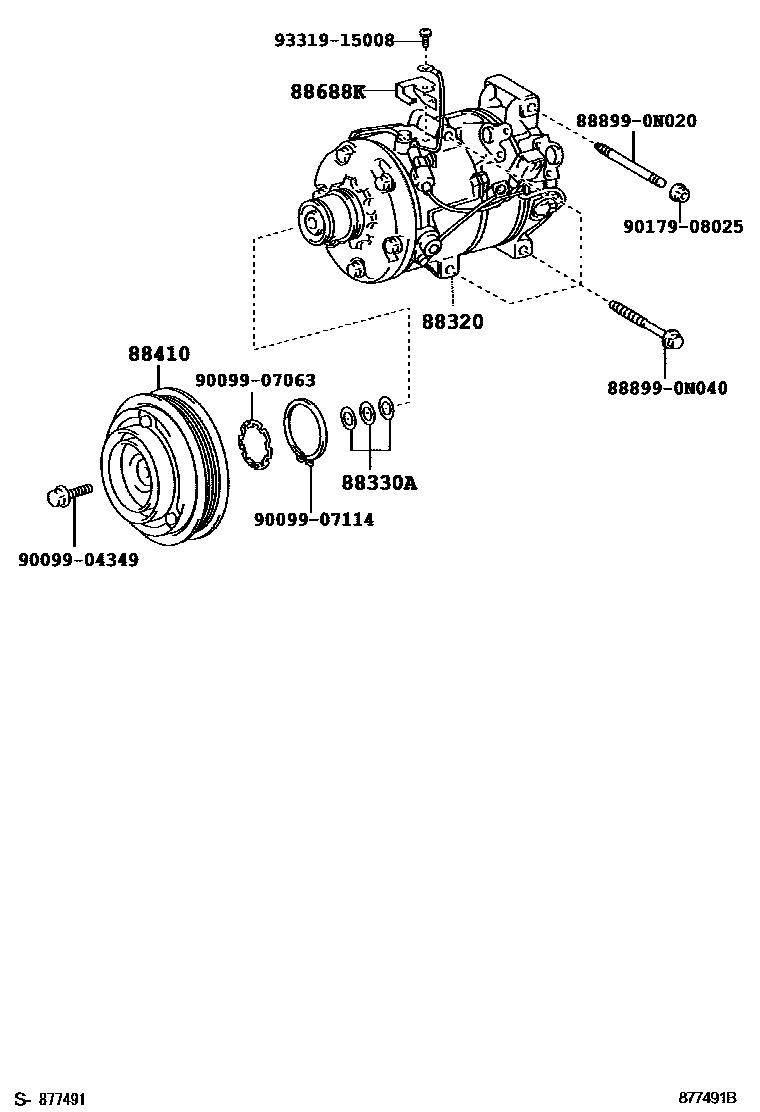

HEATING & AIR CONDITIONING - COMPRESSOR

88320COMPRESSOR ASSY, COOLER

main88320-3A270iGRS18#200502-200601

main88320-3A300iGRS18#200601-200911

88330AWASHER (FOR MAGNET CLUTCH)

main88335-14020iGRS18#200502-200911

88410CLUTCH ASSY, MAGNET

main88410-3A280iGRS18#200502-200601

main88410-3A290iGRS18#200601

88688KBRACKET, COOLER COMPRESSOR

main88688-33460iGRS18#200601

888990N020COVER, EVAPORATOR

main88899-0N020

888990N040COVER, EVAPORATOR

main88899-0N040

9009904349

main90099-04349

9009907063

main90099-07063

9009907114

main90099-07114

9017908025

main90179-08025

9331915008

main93319-15008

11 parts on this diagram · 1 diagram in section
