MIRROR

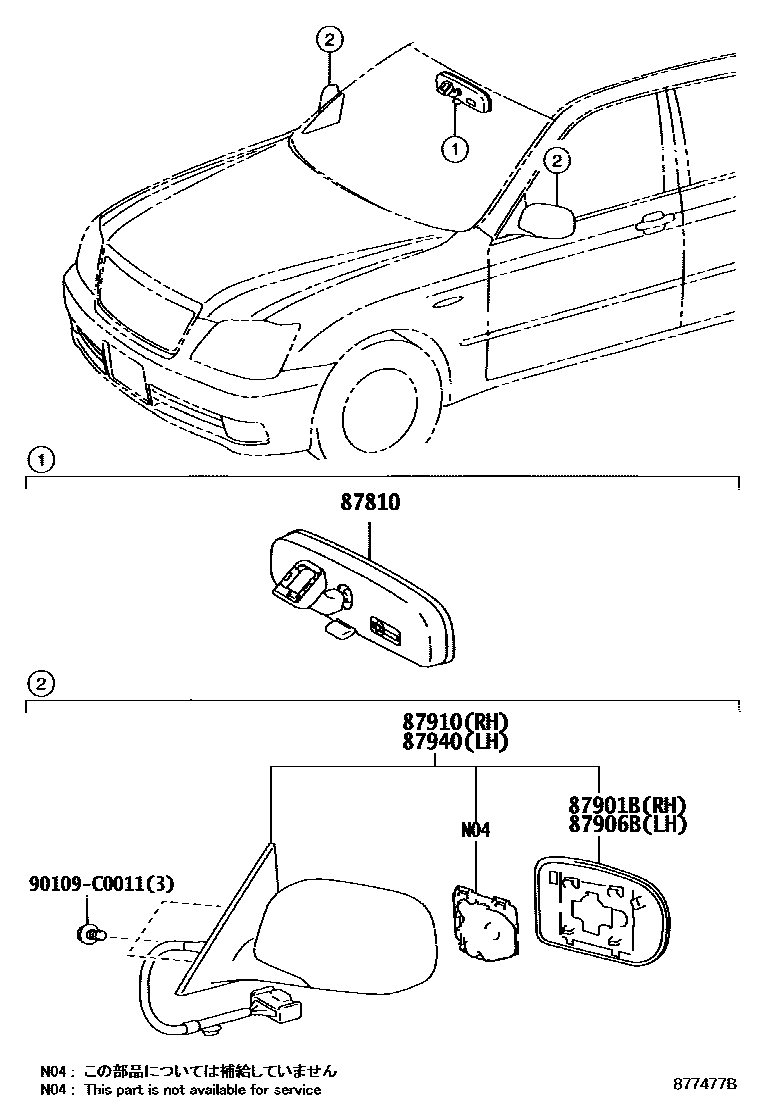

Parts diagram

87810MIRROR ASSY, INNER REAR VIEW

main87810-0N010i200502-200611

main87810-0N011i200611

87901BMIRROR SUB-ASSY, OUTER REAR VIEW, RH

main87931-30710i200502

87906BMIRROR SUB-ASSY, OUTER REAR VIEW, LH

main87961-30A00i200502

87910MIRROR ASSY, OUTER REAR VIEW, RH

main87910-0N010i200502-200611

PAINT REQ.

main87910-0N011-A0i200611-200911

WHITE PEARL CS.,062

main87910-0N011-B0i200611-200911

SILVER ME.,1C0

main87910-0N011-C0i200611-200911

BLACK,202

main87910-0N011-D0i200611-200911

BLACKISH RED MC.,3R0

main87910-0N011-J0i200611-200911

DARK BLUE MC.,8P8

main87910-0N020i200502-200611

PAINT REQ.; PAINT REQ.,S PACKAGE&WIRELESS DOOR LOCK-W(SMART)

main87910-0N021-A0i200611-200911

WHITE PEARL CS.,062

main87910-0N021-B0i200611-200911

SILVER ME.,1C0

main87910-0N021-C0i200611-200911

BLACK,202

main87910-0N021-D0i200611-200911

BLACKISH RED MC.,3R0

main87910-0N021-J0i200611-200911

DARK BLUE MC.,8P8

87940MIRROR ASSY, OUTER REAR VIEW, LH

main87940-0N010i200502-200611

PAINT REQ.

main87940-0N011-A0i200611-200911

WHITE PEARL CS.,062

main87940-0N011-B0i200611-200911

SILVER ME.,1C0

main87940-0N011-C0i200611-200911

BLACK,202

main87940-0N011-D0i200611-200911

BLACKISH RED MC.,3R0

main87940-0N011-J0i200611-200911

DARK BLUE MC.,8P8

main87940-0N020i200502-200611

PAINT REQ.; PAINT REQ.,S PACKAGE&WIRELESS DOOR LOCK-W(SMART)

main87940-0N021-A0i200611-200911

WHITE PEARL CS.,062

main87940-0N021-B0i200611-200911

SILVER ME.,1C0

main87940-0N021-C0i200611-200911

BLACK,202

main87940-0N021-D0i200611-200911

BLACKISH RED MC.,3R0

main87940-0N021-J0i200611-200911

DARK BLUE MC.,8P8

90109C0011

main90109-C0011

6 parts on this diagram · 1 diagram in section
