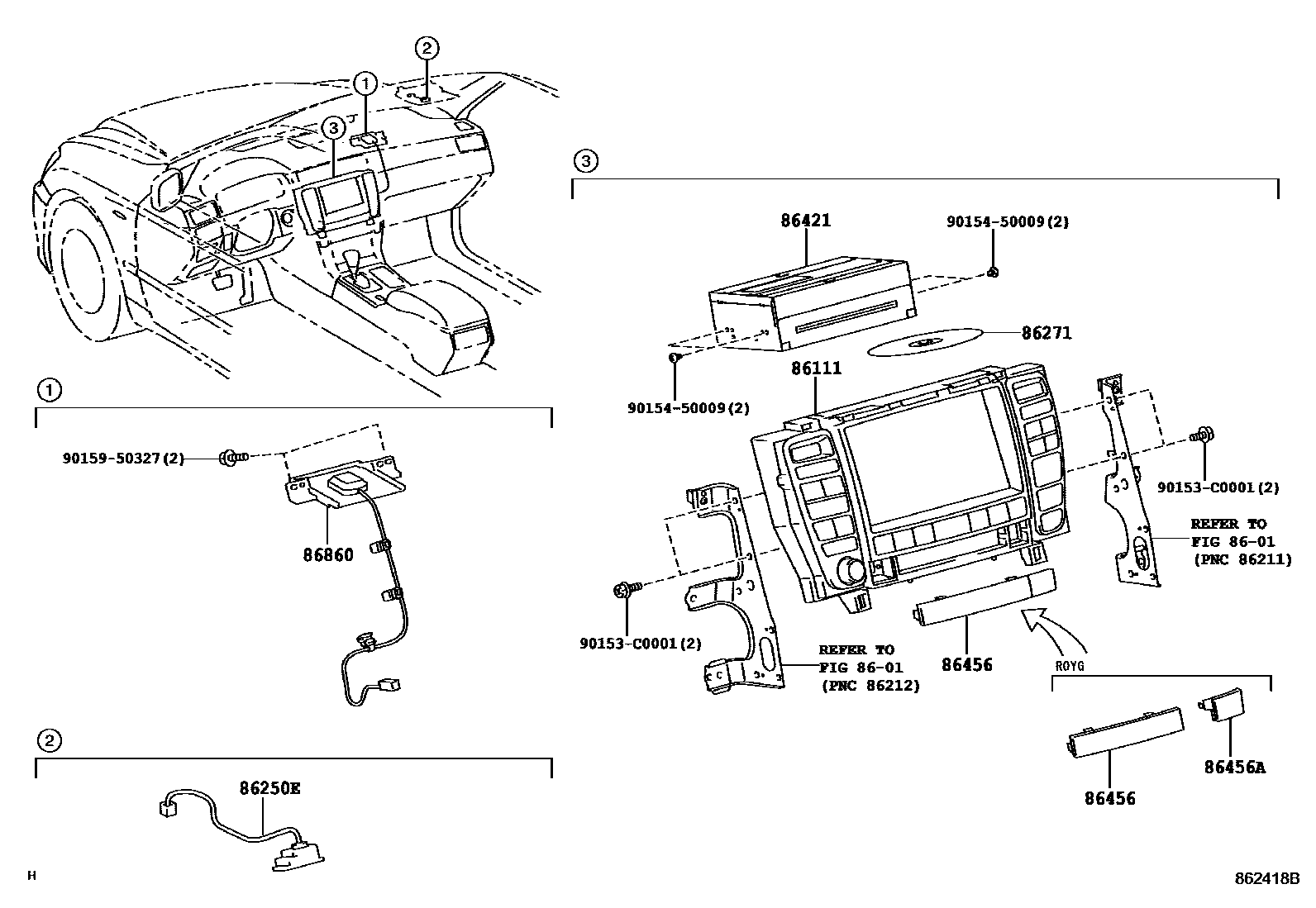

NAVIGATION & FRONT MONITOR DISPLAY

8601

86111MULTI-DISPLAY

main86111-30370iGRS182..ROY,ROYG200502-200908

DENSO

main86111-30371iGRS188..25ROY200909-200911

DENSO

sub86111-30372

86250EMICROPHONE ASSY, AMPLIFIER

main86250-30060iGRS182..ROY200502-200911

L PACKAGE

86271DISC, DISC PLAYER

main86807-0N011iGRS182..ROY,ROYG200502-200503

S PACKAGE

main86807-0N012iGRS182..ROY,ROYG200504-200509

S PACKAGE

main86807-0N013iGRS182..ROY,ROYG200510-200602

S PACKAGE

main86807-0W021iGRS182..ROY,ROYG200603-200607

S PACKAGE

main86807-0W022iGRS182..ROY,ROYG200608-200707

S PACKAGE

main86807-0W023iGRS182..ROY,ROYG200708-200804

main86807-0W024iGRS182..ROY,ROYG200805-200904

main86807-0W025iGRS188..25ROY200905-200909

08 MEMORIAL PACKAGE

main86807-0W026iGRS188..25ROY200910

08 MEMORIAL PACKAGE

sub86807-0W027

86421BOARD, NAVIGATION MODULE

main86421-30030iGRS182..ROY,ROYG200502

86456COVER, MULTI-MEDIA MODULE

main86456-30020iGRS182..ROY200502-200911

main86456-30030iGRS182..ROYG200502-200911

86456ACOVER, MULTI-MEDIA MODULE, NO.2

main86456-30040iGRS182..ROYG200502

86860ANTENNA ASSY, NAVIGATION

main86860-30150iGRS182..ROY200502

L PACKAGE

90153C0001

main90153-C0001

9015450009

main90154-50009

9015950327

main90159-50327

11 parts on this diagram · 1 diagram in section
