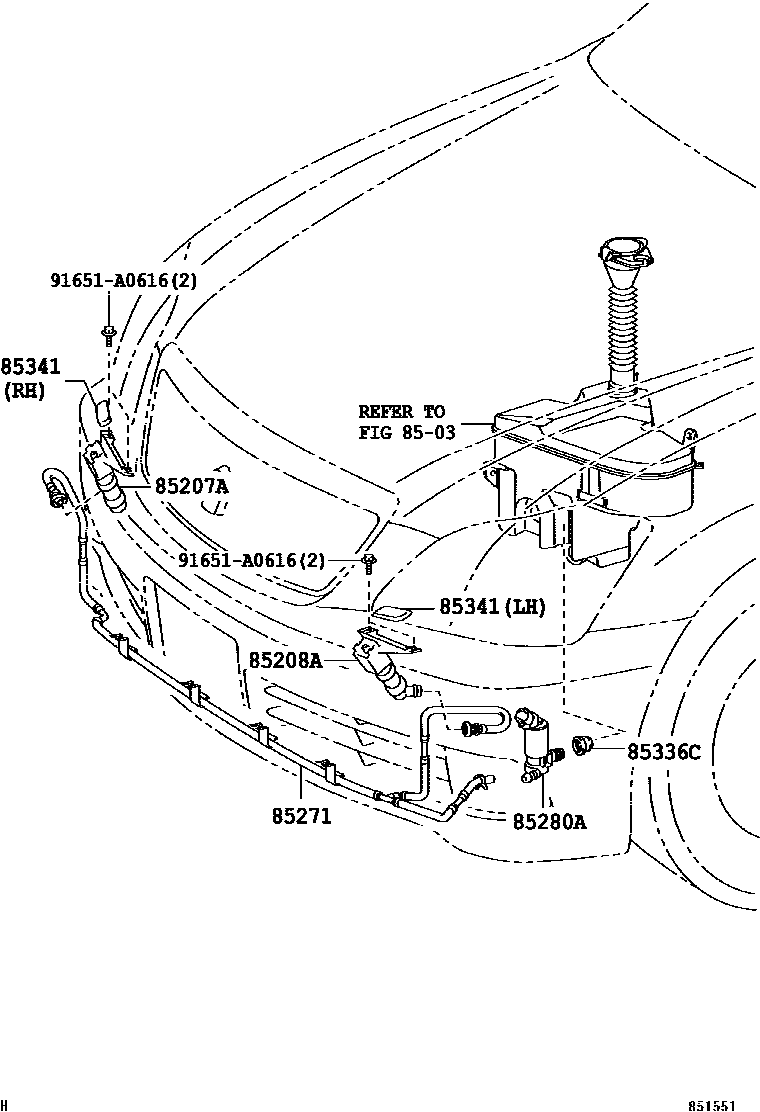

HEADLAMP CLEANER

8503WINDSHIELD WASHER

→ Go to FIG 85-03

85207AACTUATOR SUB-ASSY, HEADLAMP WASHER, RH

main85207-0N010iGRS18#200502-200911

85208AACTUATOR SUB-ASSY, HEADLAMP WASHER, LH

main85208-0N010iGRS18#200502-200911

85271HOSE, HEADLAMP CLEANER, NO.1

main85271-0N010iGRS18#200502-200911

85280AMOTOR AND PUMP ASSY, HEADLAMP CLEANER

main85280-30040iGRS18#200502-200911

85336CPACKING, HEADLAMP CLEANER MOTOR

main85295-0N010iGRS18#200502-200911

85341NOZZLE, HEADLAMP CLEANER WASHER

main85381-0N010-A0iGRS18#200502-200911

WHITE PEARL CS.,062,RH

main85381-0N010-B0iGRS18#200502-200911

SILVER ME.,1C0,RH

main85381-0N010-C0iGRS18#200502-200911

BLACK,202,RH

main85381-0N010-D0iGRS18#200502-200911

BLACKISH RED MC.,3R0,RH

main85381-0N010-J0iGRS18#200502-200911

DARK BLUE MC.,8P8,RH

main85382-0N010-A0iGRS18#200502-200911

WHITE PEARL CS.,062,LH

main85382-0N010-B0iGRS18#200502-200911

SILVER ME.,1C0,LH

main85382-0N010-C0iGRS18#200502-200911

BLACK,202,LH

main85382-0N010-D0iGRS18#200502-200911

BLACKISH RED MC.,3R0,LH

main85382-0N010-J0iGRS18#200502-200911

DARK BLUE MC.,8P8,LH

91651A0616

main91651-A0616

8 parts on this diagram · 1 diagram in section
