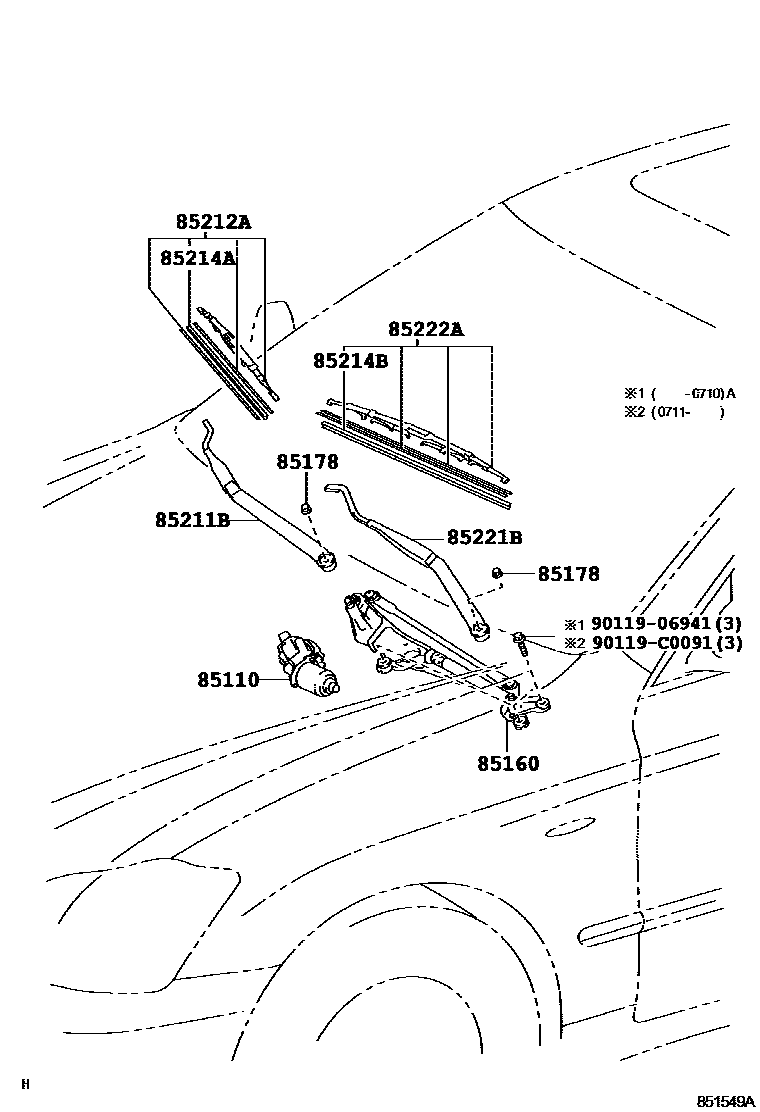

WINDSHIELD WIPER

85110MOTOR ASSY, WINDSHIELD WIPER

main85110-0N010iGRS18#200703

main85110-30500iGRS18#200502-200702

85160LINK ASSY, WINDSHIELD WIPER

main85150-0N010iGRS18#200502

85178NUT (FOR FRONT WIPER ARM SETTING)

main90176-10005iGRS18#200502

85211BARM, FRONT WIPER, RH

main85211-30640iGRS18#200502

85212ABLADE, FR WIPER, RH

main85212-30400iGRS182200502-200508

main85212-30401iGRS18#200509

85214ARUBBER, WIPER, RH

main85214-46010iGRS182200502-200508

main85214-46011iGRS18#200509

85214BRUBBER, WIPER, LH

main85214-50100iGRS18#200502

85221BARM, FRONT WIPER, LH

main85221-30540iGRS18#200502

85222ABLADE, FR WIPER, LH

main85222-30570iGRS18#200502

9011906941

main90119-06941

90119C0091

main90119-C0091

11 parts on this diagram · 1 diagram in section
