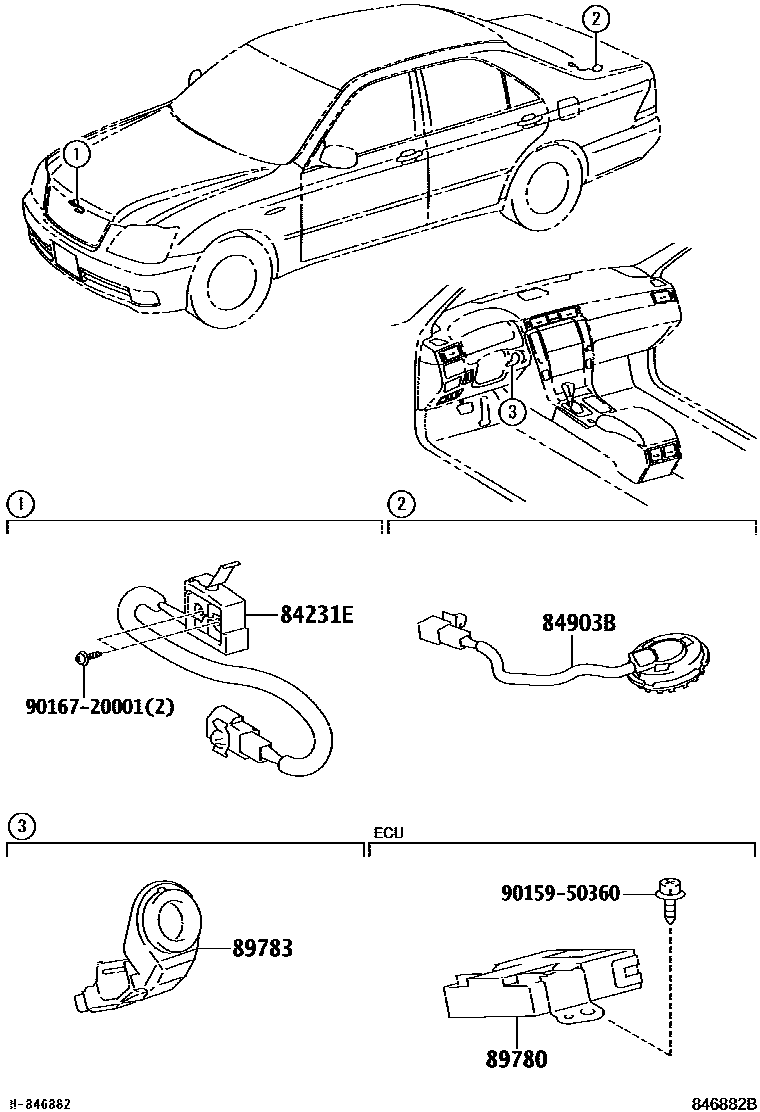

ANTI-THEFT DEVICE

84231ESWITCH, COURTESY(FOR SECURITY)

main84231-0N010iGRS18#200502-200911

84903BSWITCH SUB-ASSY, DOOR UNLOCK

main84903-50210iGRS18#200502-200911

89780COMPUTER ASSY, TRANSPONDER KEY

main89780-0N010iGRS182..ROY,ROYG200502-200909

main89780-0N011iGRS182..ROY,ROYG200910

main89780-0N020iGRS18#..25,25ROY,ROYEX200502

89783AMPLIFIER, TRANSPONDER KEY

main89783-0N010iGRS18#..25,25ROY,ROYEX200502-200907

main89783-0N011iGRS18#..25,25ROY,ROYEX200908

9015950360

main90159-50360

9016720001

main90167-20001

6 parts on this diagram · 1 diagram in section
