ABS & VSC

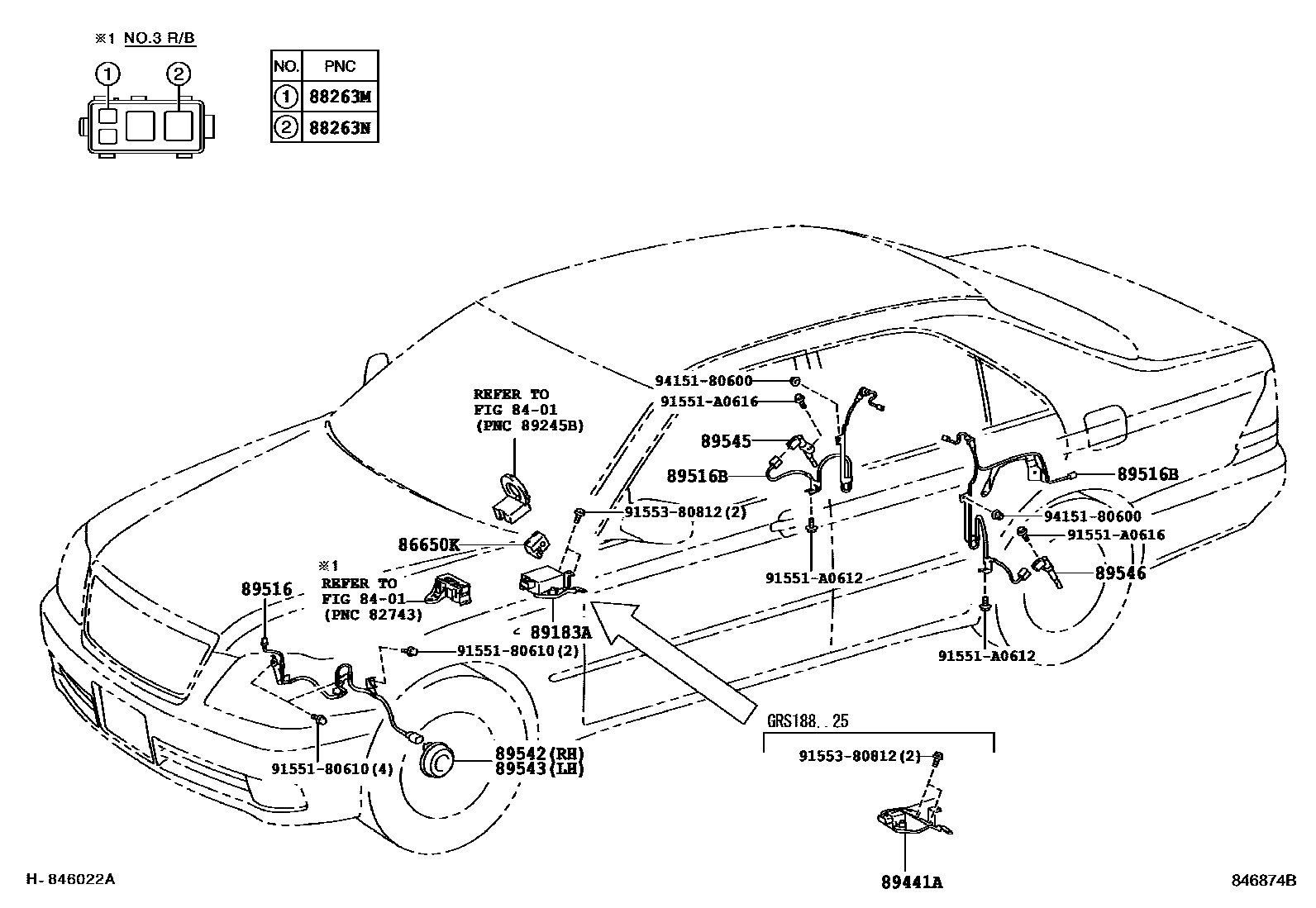

8401SWITCH & RELAY & COMPUTER

→ Go to FIG 84-01

86650KBUZZER ASSY, SKID CONTROL

main86652-48010iGRS18#..25ROY,ROY,ROYEX,ROYG200502

88263MRELAY, ABS SOLENOID

main88263-32070iGRS18#..25ROY,ROY,ROYEX,ROYG200502-200911

88263NRELAY, ABS MOTOR

main88263-21010iGRS18#..25ROY,ROY,ROYEX,ROYG200502-200911

89183ASENSOR, YAWRATE

main89180-22020iGRS18#..25ROY,ROY,ROYEX,ROYG200502

89441ASENSOR, DECELERATION

main89440-22040iGRS188..25200510

89516WIRE, SKID CONTROL SENSOR

main89516-0N010iGRS18#200502-200911

RH

main89516-0N020iGRS18#200502-200911

LH

89516BWIRE, SKID CONTROL SENSOR

main89516-0N030iGRS18#200502

RH

main89516-0N040iGRS18#200502

LH

89542SENSOR, SPEED, FRONT RH

main89542-30260iGRS18#200502-200911

89543SENSOR, SPEED, FRONT LH

main89543-30260iGRS18#200502-200911

89545SENSOR, SPEED, REAR RH

main89545-30070iGRS18#200502-200911

89546SENSOR, SPEED, REAR LH

main89546-30070iGRS18#200502-200911

9155180610

main91551-80610

91551A0612

main91551-A0612

91551A0616

main91551-A0616

9155380812

main91553-80812

9415180600

main94151-80600

17 parts on this diagram · 1 diagram in section
