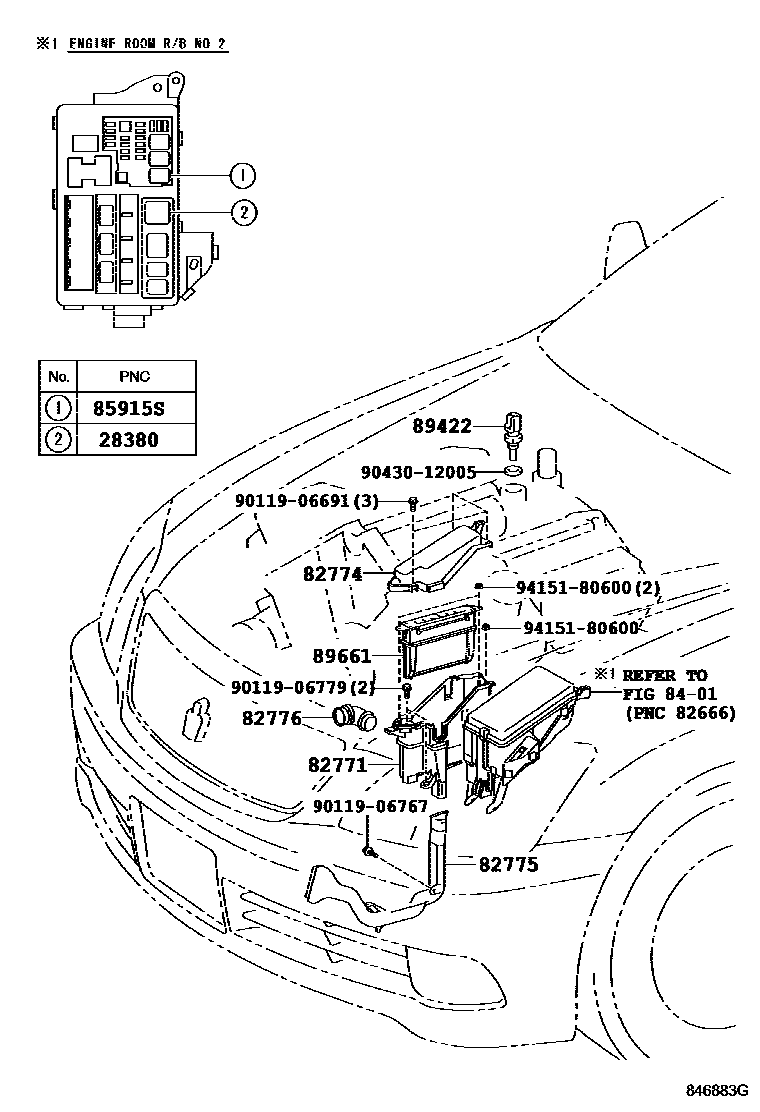

ELECTRONIC FUEL INJECTION SYSTEM

28380RELAY ASSY, FUEL PUMP

main90987-03003i3GRFE,5GRFE..GRS18#200502-200911

82771BOX, ENGINE ROOM ECU

main82771-30040iGRS18#200502-200911

82774COVER, ENGINE ROOM ECU

main82774-30050iGRS18#200502

82775DUCT, ENGINE ROOM ECU INLET

main82775-0N010iGRS18#200502

82776DUCT, ENGINE ROOM ECU OUTLET

main82776-0N010iGRS18#200502

8401SWITCH & RELAY & COMPUTER

→ Go to FIG 84-01

85915SRELAY, HEATER (FOR AIR FUEL RATIO SENSOR)

main90987-T2005iGRS18#200502-200911

89422SENSOR, WATER TEMPERATURE (FOR E.F.I.)

main89422-0D010iGRS18#200804

main89422-33030iGRS18#200502-200804

89661COMPUTER, ENGINE CONTROL

main89661-0N060supersedes 89661-0N101iGRS182200611-200612

EXHAUST EMISSION CONTROL-BEJING ECE STEP3(OBD),P/N LABEL=896610N060

main89661-0N061supersedes 89661-0N101iGRS182200710-200901

BEIJING OR GUANGZHOU SPEC,P/N LABEL=896610N061

main89661-0N070supersedes 89661-0N071iGRS188200612-200710

BEIJING OR GUANGZHOU SPEC,P/N LABEL=896610N070

main89661-0N071iGRS188200710-200901

BEIJING OR GUANGZHOU SPEC,P/N LABEL=896610N071

9011906691

main90119-06691

9011906767

main90119-06767

9011906779

main90119-06779

9043012005

main90430-12005

9415180600

main94151-80600

14 parts on this diagram · 1 diagram in section
