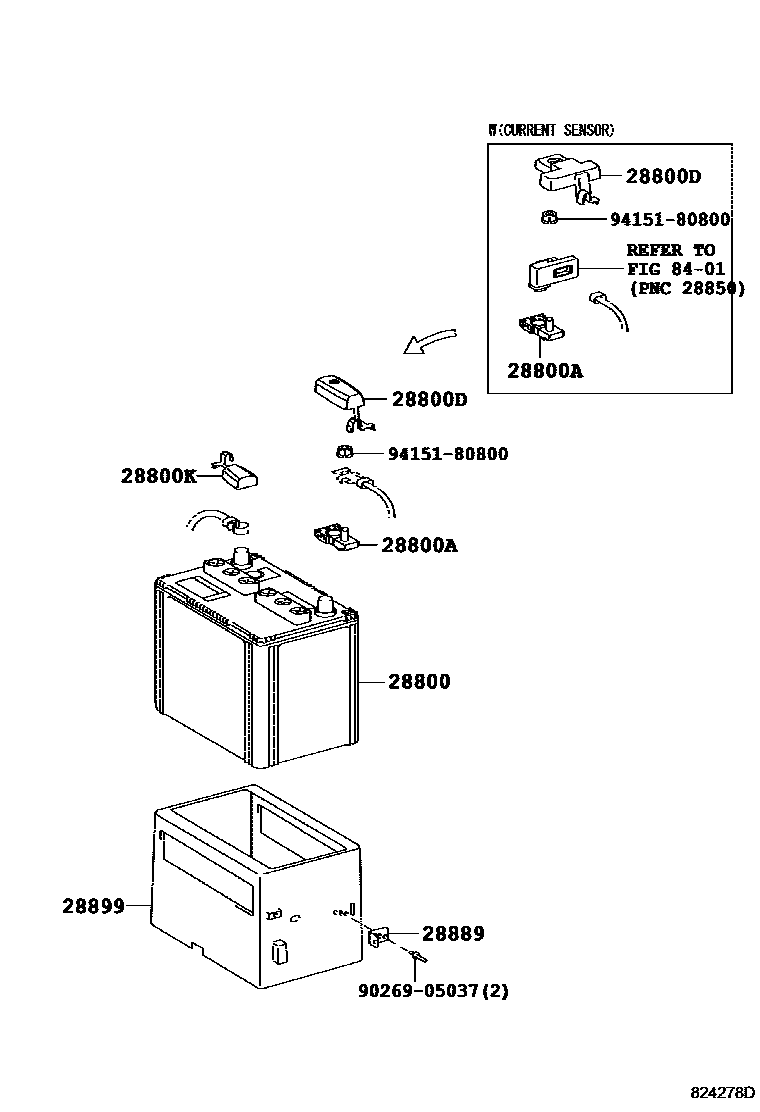

BATTERY & BATTERY CABLE

28800BATTERY

main28800-0P020i3GRFE,5GRFE..GRS18#200502

80D26R

28800ATERMINAL, BATTERY POSITIVE

main90982-05062i3GRFE,5GRFE..GRS18#200502

28800DCOVER, CONNECTOR(FOR BATTERY TERMINAL)

main82821-30660i3GRFE..GRS182200502

main82821-50470i5GRFE..GRS188200510

28800KCOVER, CONNECTOR(FOR BATTERY TERMINAL NEGATIVE)

main82821-50450i3GRFE,5GRFE..GRS18#200502

28889BRACKET, BATTERY WIRE CLAMP

main28889-31010i3GRFE,5GRFE..GRS18#200502-200911

28899INSULATOR, BATTERY

main28899-0P010i3GRFE,5GRFE..GRS18#200502

8401SWITCH & RELAY & COMPUTER

→ Go to FIG 84-01

9026905037

main90269-05037

9415180800

main94151-80800

9 parts on this diagram · 1 diagram in section
