GR
›
330210
›

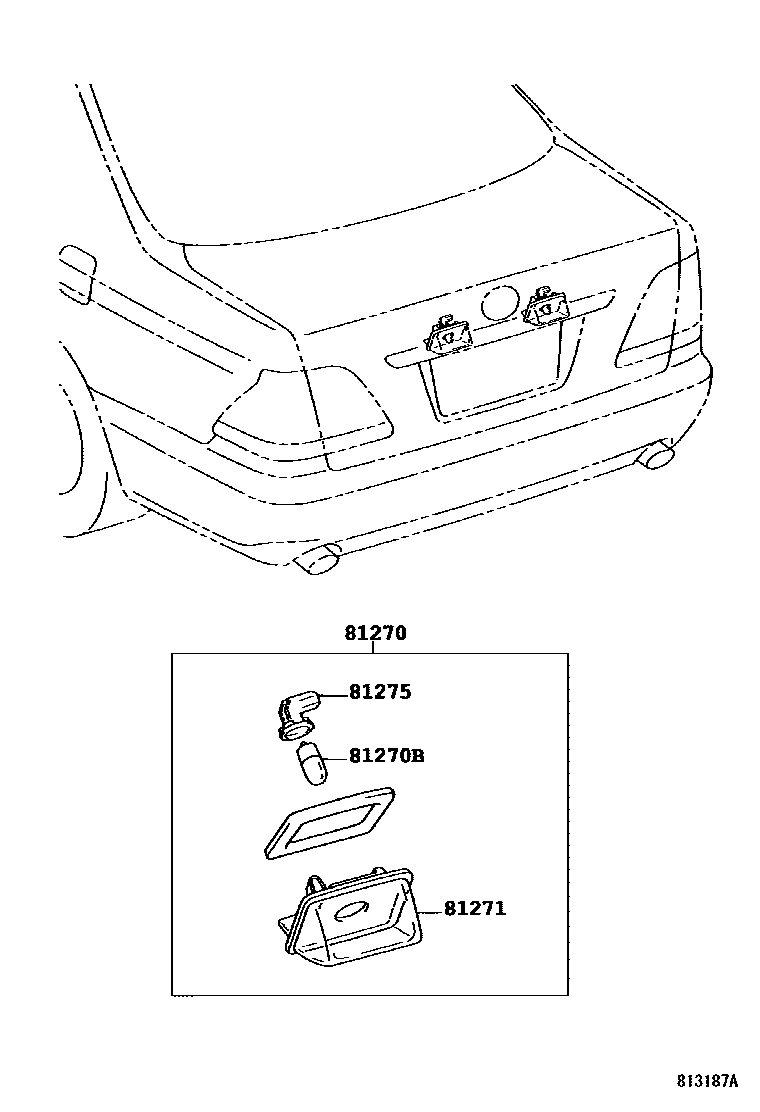

REAR LICENSE PLATE LAMP
REAR LICENSE PLATE LAMP
81270
LAMP ASSY, LICENSE PLATE
main
81270-0D020
×2
i
GRS18#
200502-200611
main
81270-0D021
×2
i
GRS18#
200611
81270B
BULB (FOR LICENSE PLATE LAMP)
main
99132-12050
×2
i
GRS18#
200502
12V 5W
81271
LENS, LICENSE PLATE LAMP
main
81271-0D020
×2
i
GRS18#
200502-200611
main
81271-0D021
×2
i
GRS18#
200611
81275
SOCKET AND WIRE, LICENSE PLATE LAMP
main
81275-0D020
×2
i
GRS18#
200502
4 parts on this diagram · 1 diagram in section
