FOG LAMP

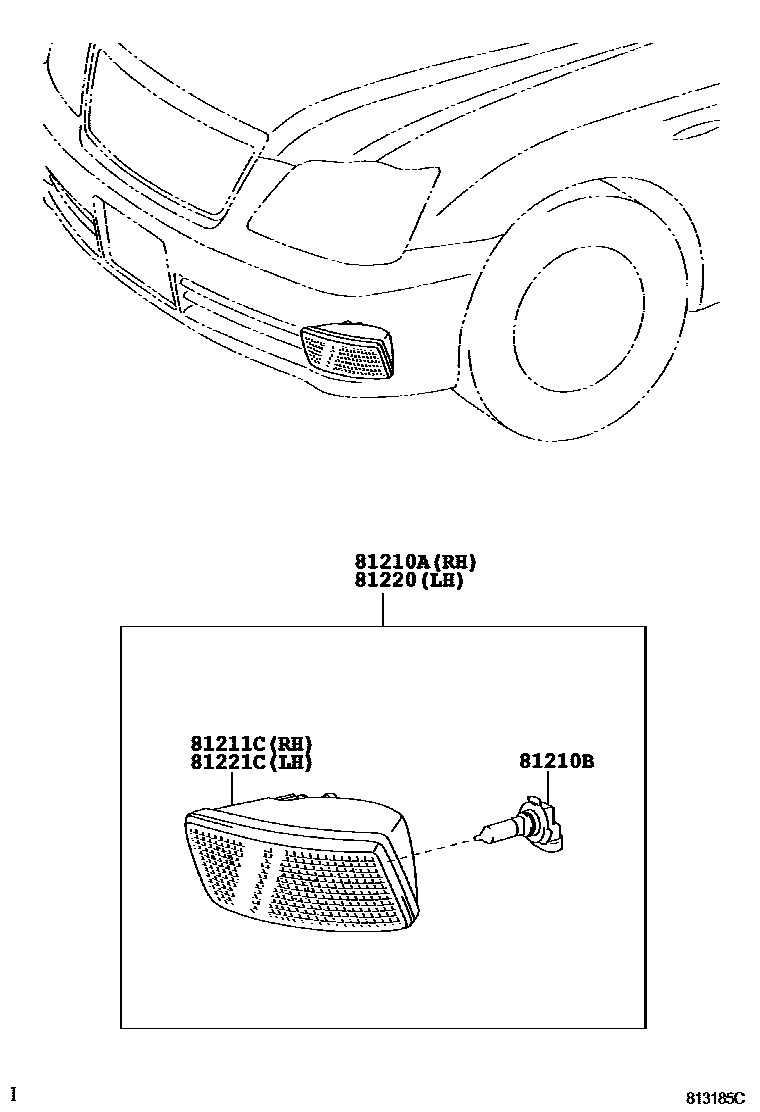

Parts diagram

81210ALAMP ASSY, FOG, RH

main81210-0N010i200502-200611

main81210-0N011i200611-200809

main81210-0N050i200809-200911

81210BBULB, FOG LAMP

main90981-13047×2i200502-200809

12V 51W,HALOGEN

81211CLAMP UNIT, FOG LAMP, RH

main81211-0N010i200502-200809

main81211-0N050i200809

81220LAMP ASSY, FOG, LH

main81220-0N010i200502-200611

main81220-0N011i200611-200809

main81220-0N050i200809-200911

81221CLAMP UNIT, FOG LAMP, LH

main81221-0N010i200502-200809

main81221-0N050i200809

5 parts on this diagram · 1 diagram in section
