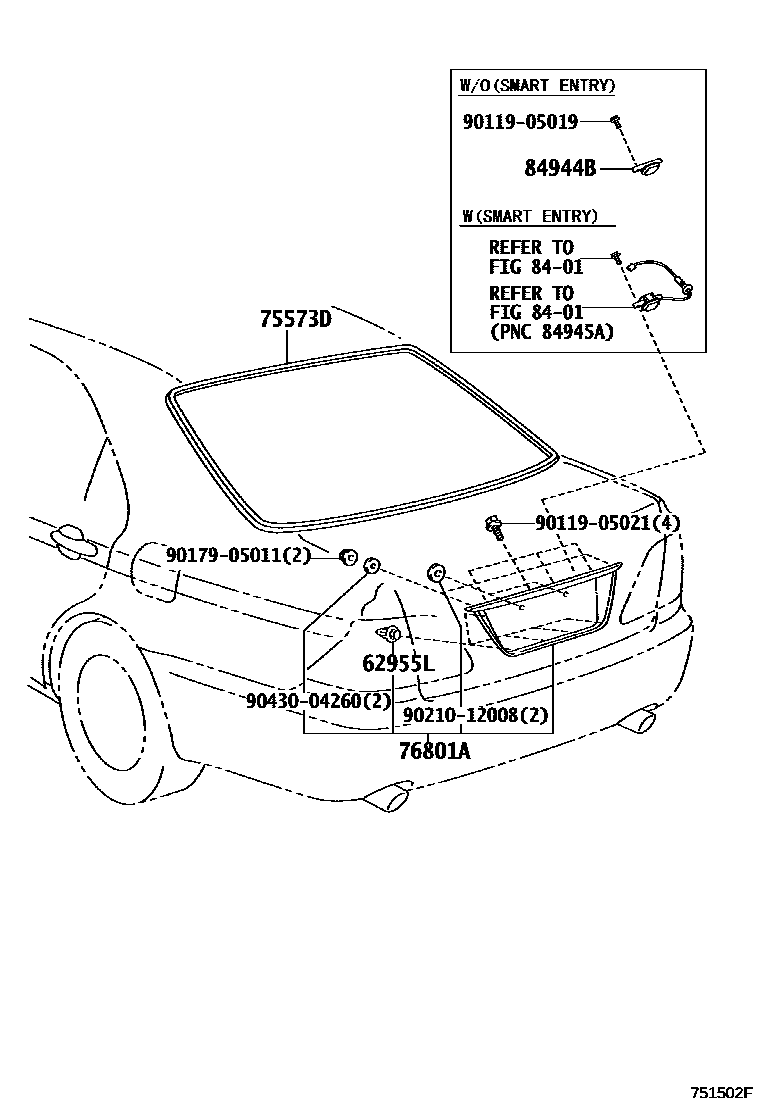

REAR MOULDING

62955LRETAINER, QUARTER VENT LOUVER

main62955-20040×6iGRS18#200502

75573DMOULDING, BACK WINDOW, OUTSIDE

main75573-0N010iGRS18#200502-200911

76801AGARNISH SUB-ASSY, LUGGAGE COMPARTMENT DOOR, OUTSIDE

main76801-0N010-A0iGRS18#..25,25ROY,ROYEX200502-200911

WHITE PEARL CS.,062

main76801-0N010-B0iGRS18#..25,25ROY,ROYEX200502-200911

SILVER ME.,1C0

main76801-0N010-C0iGRS18#..25,25ROY,ROYEX200502-200911

BLACK,202

main76801-0N010-D0iGRS18#..25,25ROY,ROYEX200502-200911

BLACKISH RED MC.,3R0

main76801-0N010-J0iGRS18#..25,25ROY,ROYEX200502-200911

DARK BLUE MC.,8P8

main76801-0N020-A0iGRS182..ROY,ROYG200502-200911

WHITE PEARL CS.,062

main76801-0N020-B0iGRS182..ROY,ROYG200502-200911

SILVER ME.,1C0

main76801-0N020-C0iGRS182..ROY,ROYG200502-200911

BLACK,202

main76801-0N020-D0iGRS182..ROY,ROYG200502-200911

BLACKISH RED MC.,3R0

main76801-0N020-J0iGRS182..ROY,ROYG200502-200911

DARK BLUE MC.,8P8

8401SWITCH & RELAY & COMPUTER

→ Go to FIG 84-01

84944BCOVER, LUGGAGE ELECTRICAL KEY SWITCH

main84944-0N010iGRS18#..25,25ROY,ROYEX200502

9011905019

main90119-05019

9011905021

main90119-05021

9017905011

main90179-05011

9021012008

main90210-12008

9043004260

main90430-04260

10 parts on this diagram · 1 diagram in section
