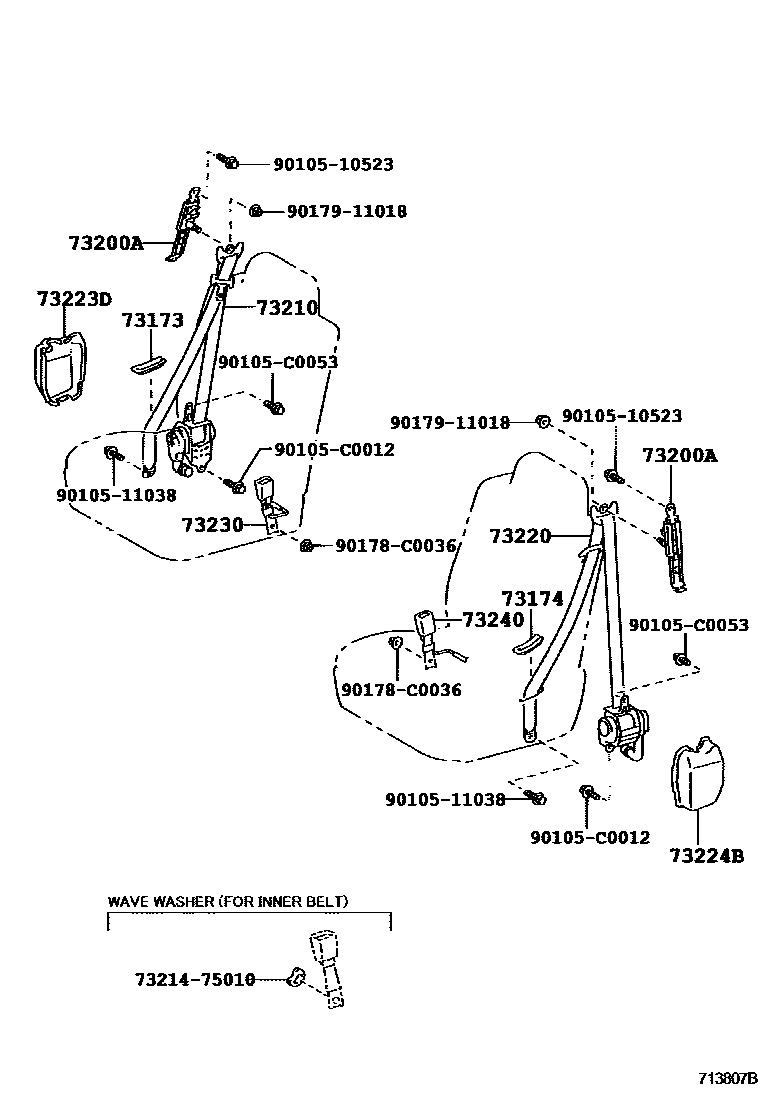

SEAT BELT & CHILD RESTRAINT SEAT

0001 1 0002 1

73173COVER, FRONT SEAT BELT HOLE, RH

main73173-0N010-A0iGRS18#200502-200911

IVORY,TRIM0#

main73173-0N010-C0iGRS18#200502-200911

BLACK,TRIM2#

73174COVER, FRONT SEAT BELT HOLE, LH

main73174-0N010-A0iGRS18#200502-200911

IVORY,TRIM0#

main73174-0N010-C0iGRS18#200502-200911

BLACK,TRIM2#

73200AADJUSTER ASSY, FRONT SHOULDER BELT ANCHOR

main73200-0N010×2iGRS18#200502

73210BELT ASSY, FRONT SEAT OUTER, RH

main73210-0N010-A0iGRS18#200502-200701

IVORY,TRIM0#

main73210-0N010-C1iGRS18#200502-200701

BLACK,TRIM2#

main73210-0N011-A0iGRS18#200702-200911

IVORY,TRIM0#

main73210-0N011-C1iGRS18#200702-200911

BLACK,TRIM2#

73220BELT ASSY, FRONT SEAT OUTER, LH

main73220-0N010-A0iGRS18#200502-200701

IVORY,TRIM0#

main73220-0N010-C1iGRS18#200502-200701

BLACK,TRIM2#

main73220-0N011-A0iGRS18#200702-200911

IVORY,TRIM0#

main73220-0N011-C1iGRS18#200702-200911

BLACK,TRIM2#

73223DCOVER, FRONT SEAT BELT RETRACTOR, RH

main73223-0N010iGRS18#200502

73224BCOVER, FRONT SEAT BELT RETRACTOR, LH

main73224-0N010iGRS18#200502

73230BELT ASSY, FRONT SEAT INNER, RH

main73230-0N010-A0iGRS18#200502-200911

IVORY,TRIM0#

main73230-0N010-C0iGRS18#200502-200911

BLACK,TRIM2#

73240BELT ASSY, FRONT SEAT INNER, LH

main73230-0N020-A0iGRS18#200502-200911

IVORY,TRIM0#

main73230-0N020-C0iGRS18#200502-200911

BLACK,TRIM2#

7321475010PLATE, FRONT SEAT BELT ANCHOR

main73214-75010

9010510523

main90105-10523

9010511038

main90105-11038

90105C0012

main90105-C0012

90105C0053

main90105-C0053

90178C0036

main90178-C0036

9017911018

main90179-11018

16 parts on this diagram · 2 diagrams in section
