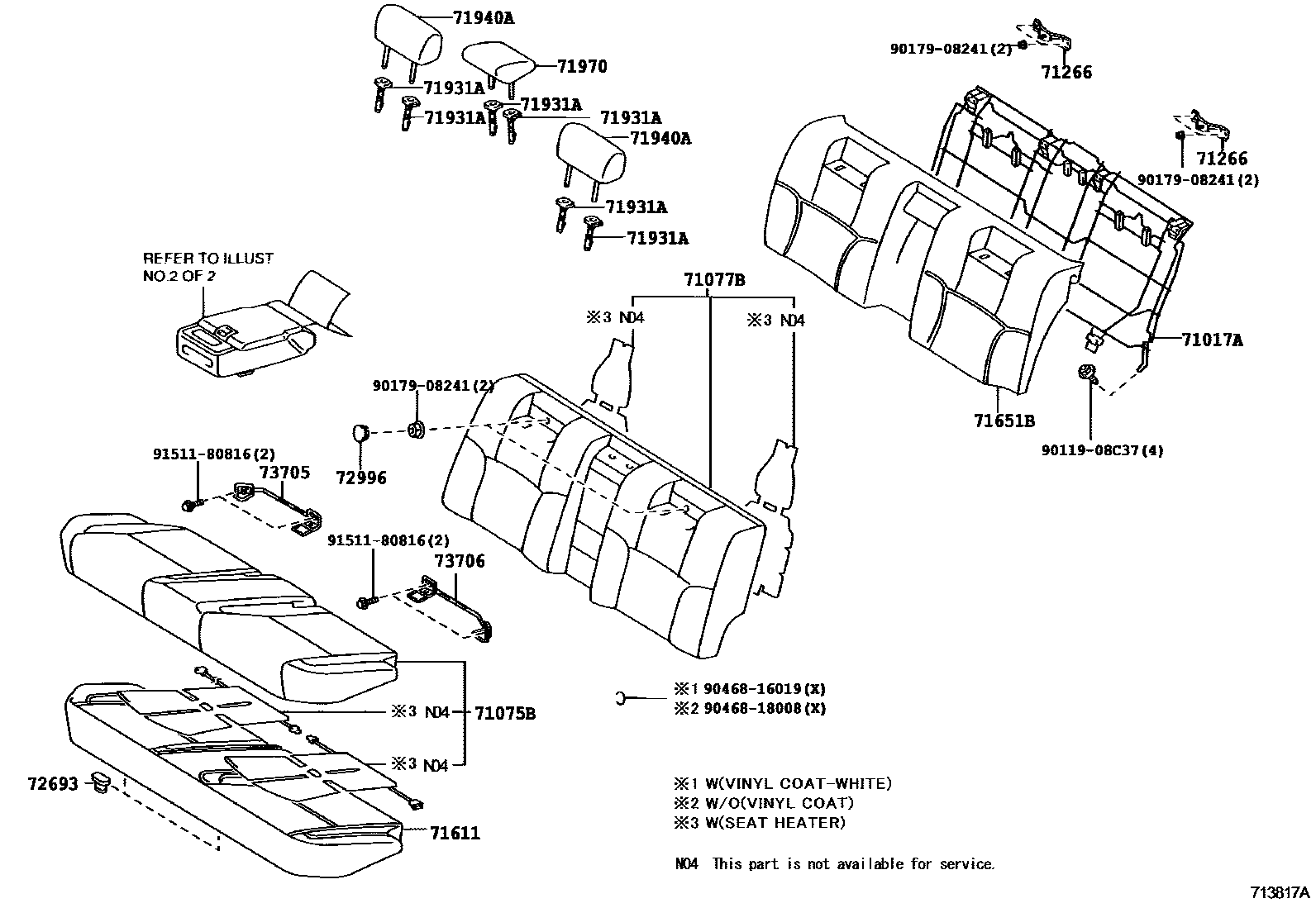

REAR SEAT & SEAT TRACK
71017FRAME SUB-ASSY, REAR SEATBACK, RH
71017AFRAME SUB-ASSY, REAR SEATBACK
71075BCOVER, REAR SEAT CUSHION (FOR BENCH TYPE)
NEW IVORY,TRIM0#
BLACK,TRIM2#
NEW IVORY,TRIM0#
BLACK,TRIM2#
IVORY,TRIM0#
BLACK,TRIM2#
IVORY,TRIM0#
BLACK,TRIM2#
SEAT COVER MATERIAL-LEATHER W/PERFORATION,NEW IVORY,TRIM0#; WITH(ACCESSORY GOLD EMBLEM),NEW IVORY,TRIM0#
A PACKAGE,BLACK,TRIM2#
71077BCOVER, REAR SEATBACK (FOR BENCH TYPE)
IVORY,TRIM0#
BLACK,TRIM2#
IVORY,TRIM0#
BLACK,TRIM2#
SEAT COVER MATERIAL-LEATHER,NEW IVORY,TRIM0#
SEAT COVER MATERIAL-LEATHER,BLACK,TRIM2#
SEAT COVER MATERIAL-LEATHER,NEW IVORY,TRIM0#
SEAT COVER MATERIAL-LEATHER,BLACK,TRIM2#
SEAT COVER MATERIAL-LEATHER W/PERFORATION,NEW IVORY,TRIM0#; WITH(ACCESSORY GOLD EMBLEM),NEW IVORY,TRIM0#
A PACKAGE,BLACK,TRIM2#
71266GUSSET, REAR SEATBACK FRAME
71611PAD, REAR SEAT CUSHION
71651BPAD, REAR SEATBACK(FOR BENCH TYPE)
71931ASUPPORT, REAR SEAT HEADREST
W(LOCK)&W(BUTTON),IVORY,TRIM0#
W(LOCK)&W(BUTTON),BLACK,TRIM2#
W(LOCK)&W(BUTTON),IVORY,TRIM0#
W(LOCK)&W(BUTTON),BLACK,TRIM2#
W(LOCK)&W/O(BUTTON),IVORY,TRIM0#
W(LOCK)&W/O(BUTTON),BLACK,TRIM2#
W/O(LOCK),IVORY,TRIM0#,CENTER
W/O(LOCK),BLACK,TRIM2#,CENTER
W(LOCK),IVORY,TRIM0#,CENTER
W(LOCK),BLACK,TRIM2#,CENTER
71940AHEADREST ASSY, REAR SEAT
NEW IVORY,TRIM0#
BLACK,TRIM2#
IVORY,TRIM0#
BLACK,TRIM2#
71970HEADREST ASSY, REAR SEAT
NEW IVORY,TRIM0#
BLACK,TRIM2#
NEW IVORY,TRIM0#
BLACK,TRIM2#
IVORY,TRIM0#
BLACK,TRIM2#
72693HOOK, REAR SEAT CUSHION LOCK
72996COVER, REAR SEATBACK, RH
IVORY,TRIM0#
BLACK,TRIM2#
73705BRACKET SUB-ASSY, CHILD RESTRAINT SEAT ANCHOR, RH
73706BRACKET SUB-ASSY, CHILD RESTRAINT SEAT ANCHOR, LH
9011908C37
main90119-08C37
9017908241
main90179-08241
9046816019
main90468-16019
9046818008
main90468-18008
9151180816
main91511-80816
19 parts on this diagram · 3 diagrams in section
