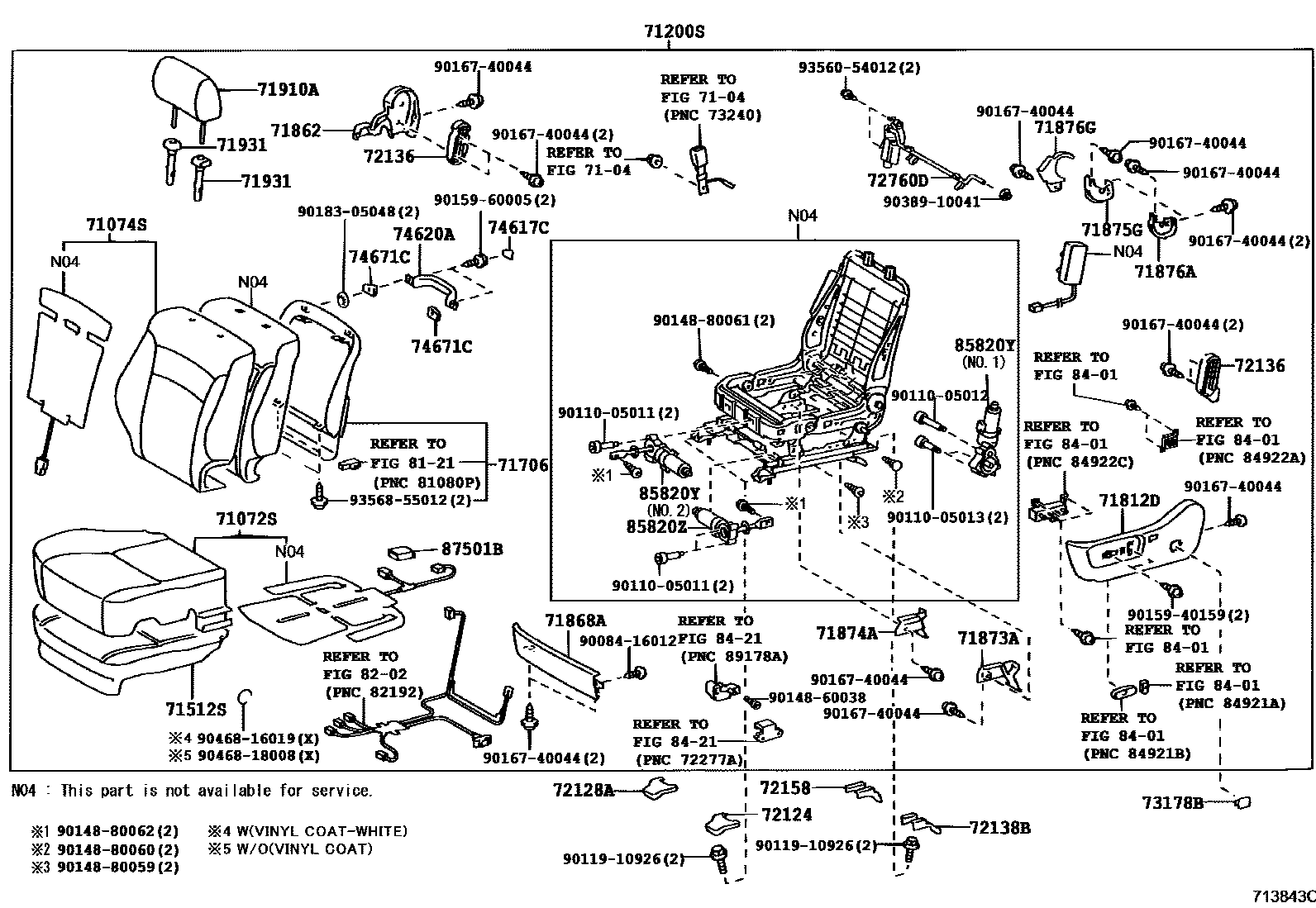

FRONT SEAT & SEAT TRACK

0001 1LH SEAT W(SRS SIDE AIR BAG) 0002 1LH SEAT 0003 1RH SEAT W(SRS SIDE AIR BAG) 0004 1RH SEAT 0005 1RH SEAT 0006 1RH SEAT

7104SEAT BELT & CHILD RESTRAINT SEAT

→ Go to FIG 71-04

71072SCOVER, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE)

main71072-0N010-A2iGRS182..ROY,ROYG200502-200707

NEW IVORY,TRIM0#

main71072-0N010-C1iGRS182..ROY,ROYG200502-200707

BLACK,TRIM2#

main71072-0N011-A2iGRS18#..25ROY,ROYEX200707-200911

NEW IVORY,TRIM0#

main71072-0N011-C1iGRS182..ROY,ROYG200707-200911

BLACK,TRIM2#

main71072-0N030-A1iGRS18#..25ROY,ROYEX200502-200911

IVORY,TRIM0#

main71072-0N030-C1iGRS188..25200502-200911

BLACK,TRIM2#

71074SCOVER, FRONT SEATBACK, LH(FOR SEPARATE TYPE)

main71074-0N010-A1iGRS182..ROY,ROYG200502-200911

NEW IVORY,TRIM0#

main71074-0N010-C0iGRS18#..25ROY,ROYEX200502-200911

BLACK,TRIM2#

main71074-0N030-A0iGRS188..25200502-200911

IVORY,TRIM0#

main71074-0N030-C0iGRS188..25200502-200911

BLACK,TRIM2#

71200SSEAT ASSY, FRONT LH

main71200-0N010-A2iGRS182..ROY,ROYG200502-200610

NEW IVORY,TRIM0#

main71200-0N010-C1iGRS182..ROY,ROYG200502-200610

BLACK,TRIM2#

main71200-0N011-A0iGRS182..ROY,ROYG200611-200709

NEW IVORY,TRIM0#

main71200-0N011-C0iGRS182..ROY,ROYG200611-200709

BLACK,TRIM2#

main71200-0N012-A0iGRS182..ROY,ROYG200710-200911

IVORY,TRIM0#

main71200-0N012-C0iGRS182..ROY,ROYG200710-200911

BLACK,TRIM2#

main71200-0N110-A0iGRS18#..25ROY,ROYEX200710-200911

IVORY,TRIM0#

main71200-0N110-C0iGRS18#..25ROY,ROYEX200710-200911

BLACK,TRIM2#

71512SPAD, FRONT SEAT CUSHION, LH (FOR SEPARATE TYPE)

main71512-0N010iGRS182..ROY200502

main71512-0N030iGRS18#..25ROY,ROYEX200502-200710

71706BOARD SUB-ASSY, FRONT SEATBACK, LH

main71705-0N010-A0iGRS182..ROY,ROYG200502-200709

IVORY,TRIM0#

main71705-0N010-C0iGRS182..ROY,ROYG200502-200709

BLACK,TRIM2#

main71705-0N011-A0iGRS18#..25ROY,ROY,ROYEX,ROYG200710-200911

IVORY,TRIM0#

main71705-0N011-C0iGRS18#..25ROY,ROY,ROYEX,ROYG200710-200911

BLACK,TRIM2#

main71705-0N030-A0iGRS18#..25,25ROY,ROYEX200502-200709

IVORY,TRIM0#

main71705-0N030-C0iGRS18#..25,25ROY,ROYEX200502-200709

BLACK,TRIM2#

main71705-0N031-A0iGRS188..25200710-200911

IVORY,TRIM0#

main71705-0N031-C0iGRS188..25200710-200911

BLACK,TRIM2#

71812DSHIELD, FRONT SEAT CUSHION, LH

main71812-0N010-A0iGRS18#200502-200911

IVORY,TRIM0#

main71812-0N010-C0iGRS18#200502-200911

BLACK,TRIM2#

71862SHIELD, FRONT SEAT CUSHION, INNER LH

main71862-0N010-A0iGRS18#200502-200911

IVORY,TRIM0#

main71862-0N010-C0iGRS18#200502-200911

BLACK,TRIM2#

71868ASHIELD, FRONT SEAT CUSHION, INNER NO.1 LH

main71868-0N010-A0iGRS18#200502-200911

IVORY,TRIM0#

main71868-0N010-C0iGRS18#200502-200911

BLACK,TRIM2#

71873SHIELD, FRONT SEAT CUSHION, LOWER RH

main71873-0N010iGRS18#200502

71873ASHIELD, FRONT SEAT CUSHION, LOWER

main71873-0N050iGRS18#200502

71874SHIELD, FRONT SEAT CUSHION, LOWER LH

main71874-0N010iGRS18#200502

71874ASHIELD, FRONT SEAT CUSHION, LOWER LH

main71874-0N030iGRS18#200502

71875GCOVER, RECLINING ADJUSTER INSIDE, RH (FOR LH SEAT)

main71875-0N070iGRS18#200502

71876COVER, RECLINING ADJUSTER INSIDE, LH

main71876-0N010iGRS18#200502

71876ACOVER, RECLINING ADJUSTER INSIDE, LH

main71876-0N030iGRS18#200502

71876GCOVER, RECLINING ADJUSTER INSIDE, LH (FOR LH SEAT)

main71876-0N050-A0iGRS18#200502-200911

IVORY,TRIM0#

main71876-0N050-C0iGRS18#200502-200911

BLACK,TRIM2#

71910AHEADREST ASSY, FRONT SEAT

main71910-0N010-A1iGRS182..ROY200502-200709

NEW IVORY,TRIM0#,LH SEAT

main71910-0N010-A1iGRS182..ROYG200502-200709

NEW IVORY,TRIM0#

main71910-0N010-C0iGRS182..ROY200502-200709

BLACK,TRIM2#

main71910-0N010-C0iGRS182..ROY200502-200709

BLACK,TRIM2#,LH SEAT

main71910-0N011-A1iGRS18#..25ROY,ROY,ROYEX200710-200911

NEW IVORY,TRIM0#

main71910-0N011-C0iGRS18#..25ROY,ROY,ROYEX200710-200911

BLACK,TRIM2#

main71910-0N030-A0iGRS18#..25,25ROY,ROYEX200502-200709

IVORY,TRIM0#

main71910-0N030-C0iGRS18#..25,25ROY,ROYEX200502-200709

BLACK,TRIM2#

main71910-0N031-A0iGRS188..25200710-200911

IVORY,TRIM0#

main71910-0N031-C0iGRS188..25200710-200911

BLACK,TRIM2#

main71910-0N040-A1iGRS182..ROYG200502-200710

NEW IVORY,TRIM0#,RH SEAT

main71910-0N040-C0iGRS182..ROYG200502-200710

BLACK,TRIM2#,RH SEAT

71931SUPPORT, FRONT SEAT HEADREST

main71930-42020-A3iGRS18#..25,25ROY,ROY,ROYEX200502-200708

W(LOCK)&W(BUTTON),IVORY,TRIM0#,LH SEAT

main71930-42020-A3iGRS182..ROYG200502-200708

W(LOCK)&W(BUTTON),IVORY,TRIM0#

main71930-42020-C0iGRS182..ROYG200502-200708

W(LOCK)&W(BUTTON),BLACK,TRIM2#,LH SEAT

main71930-42020-C0iGRS182..ROYG200502-200708

W(LOCK)&W(BUTTON),BLACK,TRIM2#

main71930-52030-A1iGRS18#..25ROY,ROYEX200708-200911

W(LOCK)&W(BUTTON),IVORY,TRIM0#

main71930-52030-C0iGRS18#..25,ROY,ROYG200708-200911

W(LOCK)&W(BUTTON),BLACK,TRIM2#

main71930-91410-A0iGRS182..ROYG200502-200710

W(LOCK),IVORY,TRIM0#,RH SEAT

main71930-91410-C0iGRS182..ROYG200502-200710

W(LOCK),BLACK,TRIM2#,RH SEAT

main71931-42020-A3iGRS182..ROYG200502-200911

W(LOCK)&W/O(BUTTON),IVORY,TRIM0#

main71931-42020-C0iGRS18#..25,25ROY,ROY,ROYEX200502-200911

W(LOCK)&W/O(BUTTON),BLACK,TRIM2#

72124COVER, SEAT TRACK BRACKET, OUTER FRONT LH

main72123-0N010-A0iGRS18#200502-200911

IVORY,TRIM0#

main72123-0N010-C0iGRS18#200502-200911

BLACK,TRIM2#

72128ACOVER, SEAT TRACK BRACKET, INNER FRONT LH

main72123-0N010-A0iGRS18#200502-200911

IVORY,TRIM0#

main72123-0N010-C0iGRS18#200502-200911

BLACK,TRIM2#

72136SPACER, SEAT TRACK, LOWER NO.1

main72136-30010iGRS18#200502

DRIVER SEAT,LH

main72136-30030iGRS18#200502

PASSENGER SEAT,RH

main72136-30040iGRS18#200502

DRIVER SEAT,RH

72138BCOVER, SEAT TRACK, LH

main72137-0N010-A0iGRS18#200502-200911

IVORY,TRIM0#

main72137-0N010-C0iGRS18#200502-200911

BLACK,TRIM2#

72158COVER, SEAT TRACK BRACKET, INNER LH

main72157-0N010-A0iGRS18#200502-200911

IVORY,TRIM0#

main72157-0N010-C0iGRS18#200502-200911

BLACK,TRIM2#

72760DADJUSTER ASSY, LUMBAR SUPPORT, LH

main72760-30170iGRS18#200502

73178BCAP, SEAT BELT ANCHOR COVER

main73178-0N010-A0iGRS18#200502-200911

IVORY,TRIM0#

main73178-0N010-C0iGRS18#200502-200911

BLACK,TRIM2#

74617CPLUG, ASSIST GRIP

main74617-30060iGRS182..ROY,ROYG200502

74620AGRIP ASSY, ASSIST, REAR

main74620-0N010-A0iGRS182..ROY,ROYG200502-200911

IVORY,TRIM0#

main74620-0N010-C0iGRS182..ROY,ROYG200502-200911

BLACK,TRIM2#

74671CSUPPORT, ASSIST GRIP

main74671-0N010-A0iGRS18#..25ROY,ROY,ROYEX,ROYG200710-200911

IVORY,TRIM0#

main74671-0N010-C0iGRS18#..25ROY,ROY,ROYEX,ROYG200710-200911

BLACK,TRIM2#

main74671-30020-A0iGRS182..ROY,ROYG200502-200710

IVORY,TRIM0#

main74671-30020-C0iGRS182..ROY,ROYG200502-200710

BLACK,TRIM2#

8121INTERIOR LAMP

→ Go to FIG 81-21

8202WIRING & CLAMP

→ Go to FIG 82-02

8401SWITCH & RELAY & COMPUTER

→ Go to FIG 84-01

8421AIR BAG

→ Go to FIG 84-21

85820YMOTOR ASSY, POWER SEAT

main85801-60020iGRS18#200502

NO.1

main85801-60030iGRS18#200502

NO.2

85820ZMOTOR ASSY, POWER SEAT

main85801-60040iGRS18#200502

87501BCONTROL SUB-ASSY, SEAT HEATER, LH

main87501-0N010iGRS182..ROY,ROYG200502

9008416012

main90084-16012

9011005011

main90110-05011

9011005012

main90110-05012

9011005013

main90110-05013

9011910926

main90119-10926

9014860038

main90148-60038

9014880059

main90148-80059

9014880060

main90148-80060

9014880061

main90148-80061

9014880062

main90148-80062

9015940159

main90159-40159

9015960005

main90159-60005

9016740044

main90167-40044

9018305048

main90183-05048

9038910041

main90389-10041

9046816019

main90468-16019

9046818008

main90468-18008

9356054012

main93560-54012

9356855012

main93568-55012

55 parts on this diagram · 6 diagrams in section
