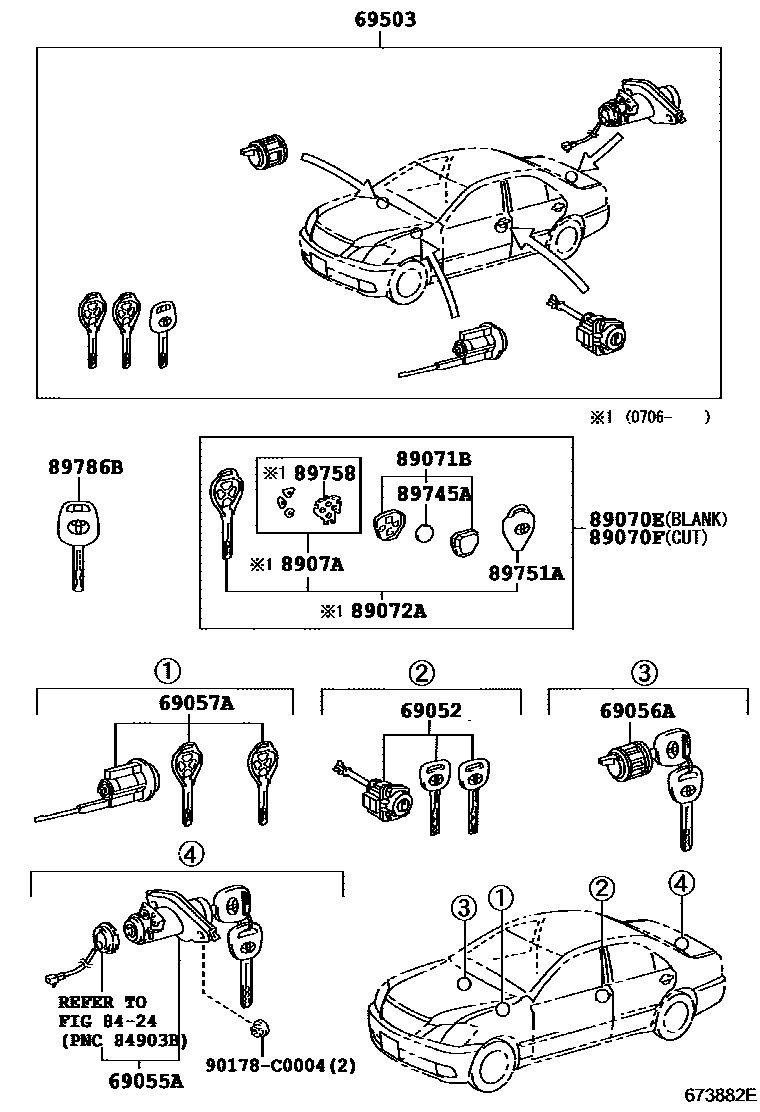

LOCK CYLINDER SET

0001 1 0002 1W(SMART ENTRY)

69052CYLINDER & KEY SET, DOOR LOCK, LH

main69052-0N010iGRS18#200502-200911

69055ACYLINDER & KEY SET, LUGGAGE COMPARTMENT LOCK

main69055-0N010iGRS18#200502

69056ACYLINDER & KEY SET, GLOVE COMPARTMENT LOCK

main69056-0N010iGRS18#200502

69057ACYLINDER & KEY SET, IGNITION SWITCH LOCK

main69057-0N010iGRS18#..25,25ROY,ROYEX200502-200707

main69057-0N011iGRS18#..25,25ROY,ROYEX200708

69503CYLINDER SET, LOCK

main69005-0N010iGRS18#..25,25ROY,ROYEX200502-200707

main69005-0N011iGRS18#..25,25ROY,ROYEX200708

main69005-0N020iGRS182..ROY,ROYG200502

8424ANTI-THEFT DEVICE

→ Go to FIG 84-24

89070ETRANSMITTER ASSY, DOOR CONTROL

main89070-30740iGRS18#..25,25ROY,ROYEX200502-200705

S PACKAGE&WIRELESS DOOR LOCK-W(SMART)

main89070-30741iGRS18#..25,25ROY,ROYEX200706

S PACKAGE&WIRELESS DOOR LOCK-W(SMART)

89070FTRANSMITTER ASSY, DOOR CONTROL (CUT KEY)

main89070-30750iGRS18#..25,25ROY,ROYEX200502-200705

S PACKAGE&WIRELESS DOOR LOCK-W(SMART)

main89070-30751iGRS18#..25,25ROY,ROYEX200706

S PACKAGE&WIRELESS DOOR LOCK-W(SMART)

89071BMODULE SET, TRANSMITTER SUB-ASSY, DOOR CONTROL

main89071-30160iGRS182..ROYEX200502-200708

S PACKAGE&WIRELESS DOOR LOCK-W(SMART)

main89071-33350iGRS18#..25,25ROY,ROYEX200708

S PACKAGE&WIRELESS DOOR LOCK-W(SMART)

89072AHOUSING SET, DOOR CONTROL TRANSMITTER

main89072-30270iGRS18#..25,25ROY,ROYEX200706

S PACKAGE&WIRELESS DOOR LOCK-W(SMART)

8907ASWITCH SET, TRANSMITTER

main8907A-33020iGRS182..ROYEX200708

S PACKAGE&WIRELESS DOOR LOCK-W(SMART)

89745ABATTERY, TRANSMITTER

main89745-48030iGRS18#..25,25ROY,ROYEX200502

S PACKAGE&WIRELESS DOOR LOCK-W(SMART)

main89745-50020iGRS182..ROY,ROYG200502

89751ACOVER, TRANSMITTER HOUSING

main89751-30040iGRS182..ROY,ROYG200502-200901

SUB KEY

main89751-30041iGRS182..ROY,ROYG200902

SUB KEY

main89751-30060iGRS18#..25,25ROY,ROYEX200502-200708

S PACKAGE&WIRELESS DOOR LOCK-W(SMART)

main89751-30061iGRS182..ROYEX200708

08 MEMORIAL PACKAGE

main89751-30061iGRS18#..25,25ROY,ROYEX200708

S PACKAGE&WIRELESS DOOR LOCK-W(SMART)

main89751-30061iGRS18#..25,25ROY,ROYEX200708

2.5 ROYAL SPECIAL VERSION

main89751-30090iGRS182..ROY,ROYG200502-200901

MASTER KEY

main89751-30091iGRS182..ROY,ROYG200902

MASTER KEY

89758PACKING, DOOR CONTROL TRANSMITTER

main89758-30010iGRS182..ROY,ROYG200502

main89758-33010iGRS18#..25,25ROY,ROYEX200708

S PACKAGE&WIRELESS DOOR LOCK-W(SMART)

main89758-33010iGRS18#..25,25ROY,ROYEX200708

08 MEMORIAL PACKAGE

main89758-33010iGRS18#..25,25ROY,ROYEX200708

2.5 ROYAL SPECIAL VERSION

89786BTRANSMITTER, TRANSPONDER KEY SUB

main89786-50160iGRS18#..25,25ROY,ROYEX200502

BLANK KEY

main89786-50180iGRS18#..25,25ROY,ROYEX200502

CUT KEY

90178C0004

main90178-C0004

16 parts on this diagram · 2 diagrams in section
