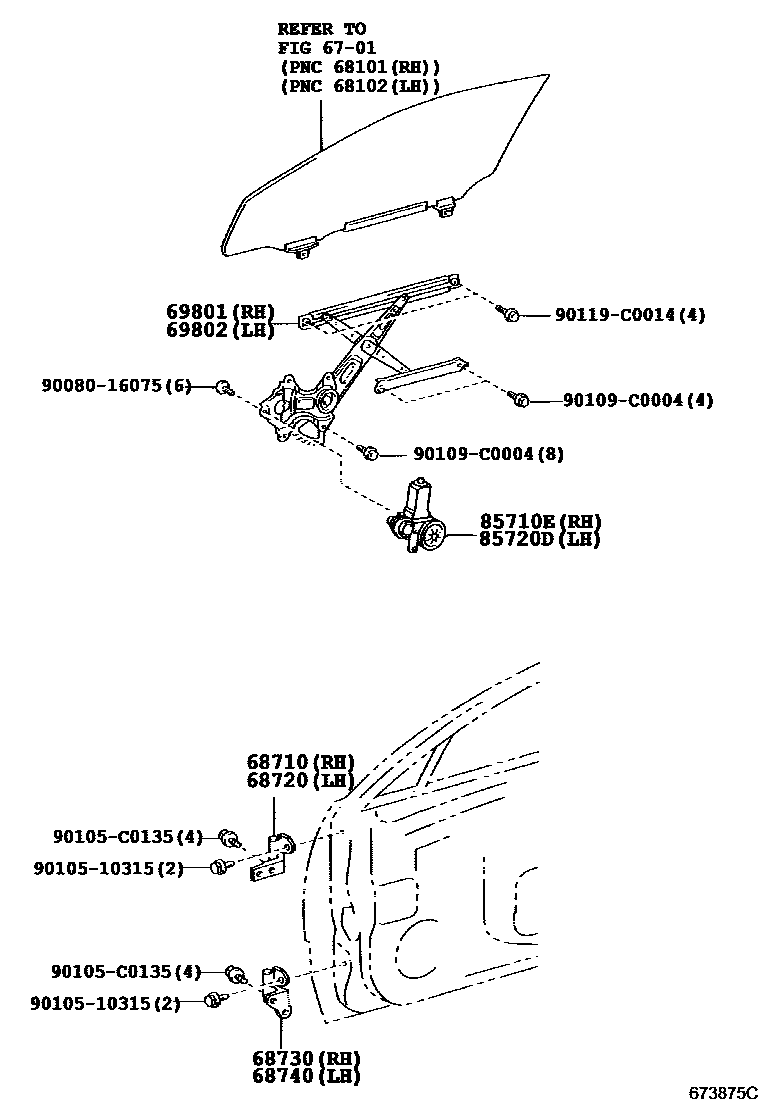

FRONT DOOR WINDOW REGULATOR & HINGE

6701FRONT DOOR PANEL & GLASS

→ Go to FIG 67-01

68710HINGE ASSY, FRONT DOOR, UPPER RH

main68710-0N010iGRS18#200502-200911

68720HINGE ASSY, FRONT DOOR, UPPER LH

main68720-0N010iGRS18#200502-200911

68730HINGE ASSY, FRONT DOOR, LOWER RH

main68730-0N010iGRS18#200502-200911

68740HINGE ASSY, FRONT DOOR, LOWER LH

main68740-0N010iGRS18#200502-200911

69801REGULATOR SUB-ASSY, FRONT DOOR WINDOW, RH

main69801-0N010iGRS18#200502

69802REGULATOR SUB-ASSY, FRONT DOOR WINDOW, LH

main69802-0N010iGRS18#200502

85710EMOTOR ASSY, POWER WINDOW REGULATOR, RH

main85710-0N010iGRS18#200502

85720DMOTOR ASSY, POWER WINDOW REGULATOR, LH

main85720-0N010iGRS18#200502

9008016075

main90080-16075

9010510315

main90105-10315

90105C0135

main90105-C0135

90109C0004

main90109-C0004

90119C0014

main90119-C0014

14 parts on this diagram · 1 diagram in section
