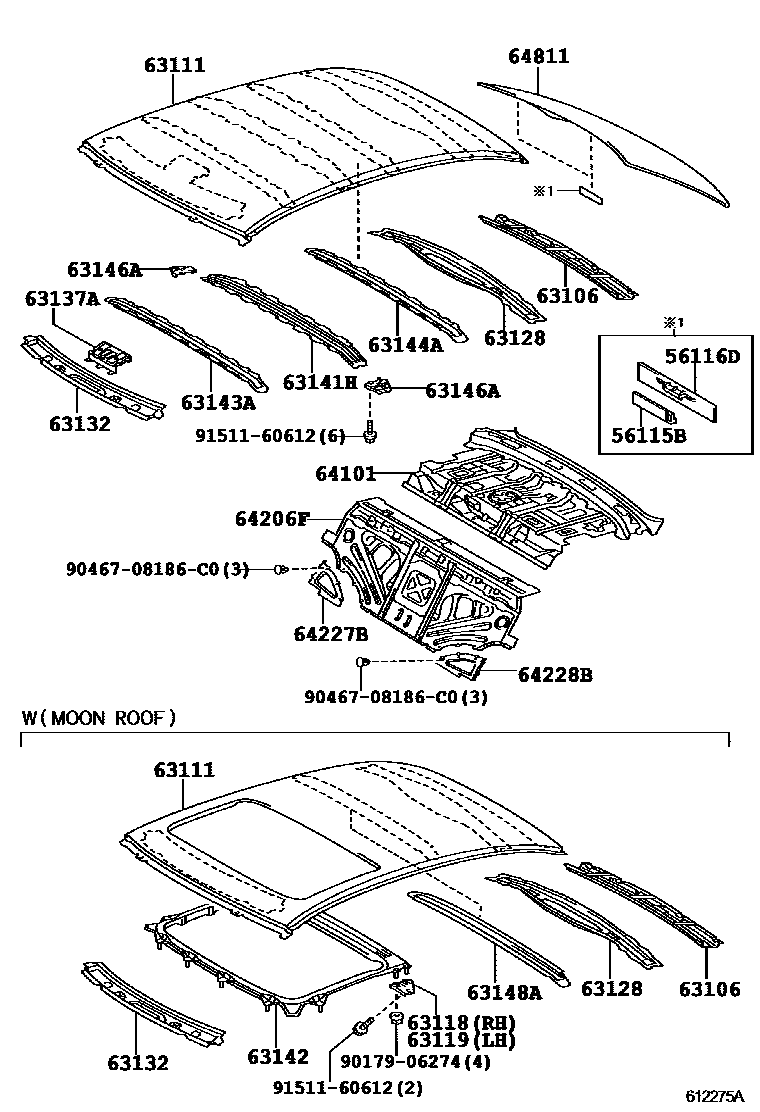

ROOF PANEL & BACK WINDOW GLASS

0001 1ROOF PANEL 0002 1MOON ROOF

56115BSTOPPER, BACK WINDOW GLASS, NO.1

main56115-30110×2iGRS18#200502

56116DSTOPPER, BACK WINDOW GLASS, NO.2

main56116-22050×2iGRS18#200502

63106REINFORCEMENT SUB-ASSY, ROOF PANEL, NO.4

main63106-30060iGRS18#200502-200911

63111PANEL, ROOF

main63111-0N010iGRS18#..25,25ROY,ROYEX200502-200911

main63111-0N020iGRS182..ROY,ROYG200502-200911

63118SUPPORT, ROOF PANEL, RH

main63118-30110iGRS182..ROY,ROYG200502-200911

63119SUPPORT, ROOF PANEL, LH

main63118-30110iGRS182..ROY,ROYG200502-200911

63128REINFORCEMENT, ROOF PANEL, NO.6

main63128-30020iGRS18#200502

63132PANEL, WINDSHIELD HEADER, INNER

main63132-30270iGRS18#200502

63137ABRACKET, DOME LAMP, NO.1

main63137-30230iGRS18#..25,25ROY,ROYEX200502

63141HREINFORCEMENT, ROOF PANEL, CENTER

main63141-30200iGRS18#..25,25ROY,ROYEX200502

63142REINFORCEMENT, ROOF PANEL, NO.2

main63142-0N902iGRS182..ROY,ROYG200502

63143AREINFORCEMENT, ROOF PANEL

main63143-30240iGRS18#..25,25ROY,ROYEX200502

63144AREINFORCEMENT, ROOF PANEL, NO.4

main63144-30170iGRS18#..25,25ROY,ROYEX200502

63146ABRACKET, ROOF PANEL REINFORCEMENT, NO.1

main63146-30100×2iGRS18#..25,25ROY,ROYEX200502-200911

63148AREINFORCEMENT, ROOF PANEL, NO.7

main63148-30100iGRS182..ROY,ROYG200502

64101PANEL SUB-ASSY, UPPER BACK

main64101-0N010iGRS18#..25,25ROY,ROY,ROYEX200502-200911

main64101-0N020iGRS182..ROYG200502-200911

64206FPANEL SUB-ASSY, ROOM PARTITION

main64206-0N010iGRS18#..25,25ROY,ROY,ROYEX200502-200911

main64206-0N020iGRS182..ROYG200502-200911

64227BEXTENSION, CENTER FLOOR TO BLACE, NO.1

main64227-0N010iGRS18#200502-200911

64228BEXTENSION, CENTER FLOOR TO BRACE, NO.2

main64228-0N010iGRS18#200502-200911

64811GLASS, BACK WINDOW

main64801-0N010iGRS18#200502

*UVCEHT,T=3.5,GREEN

9017906274

main90179-06274

9046708186C0

main90467-08186C0

9151160612

main91511-60612

23 parts on this diagram · 2 diagrams in section
