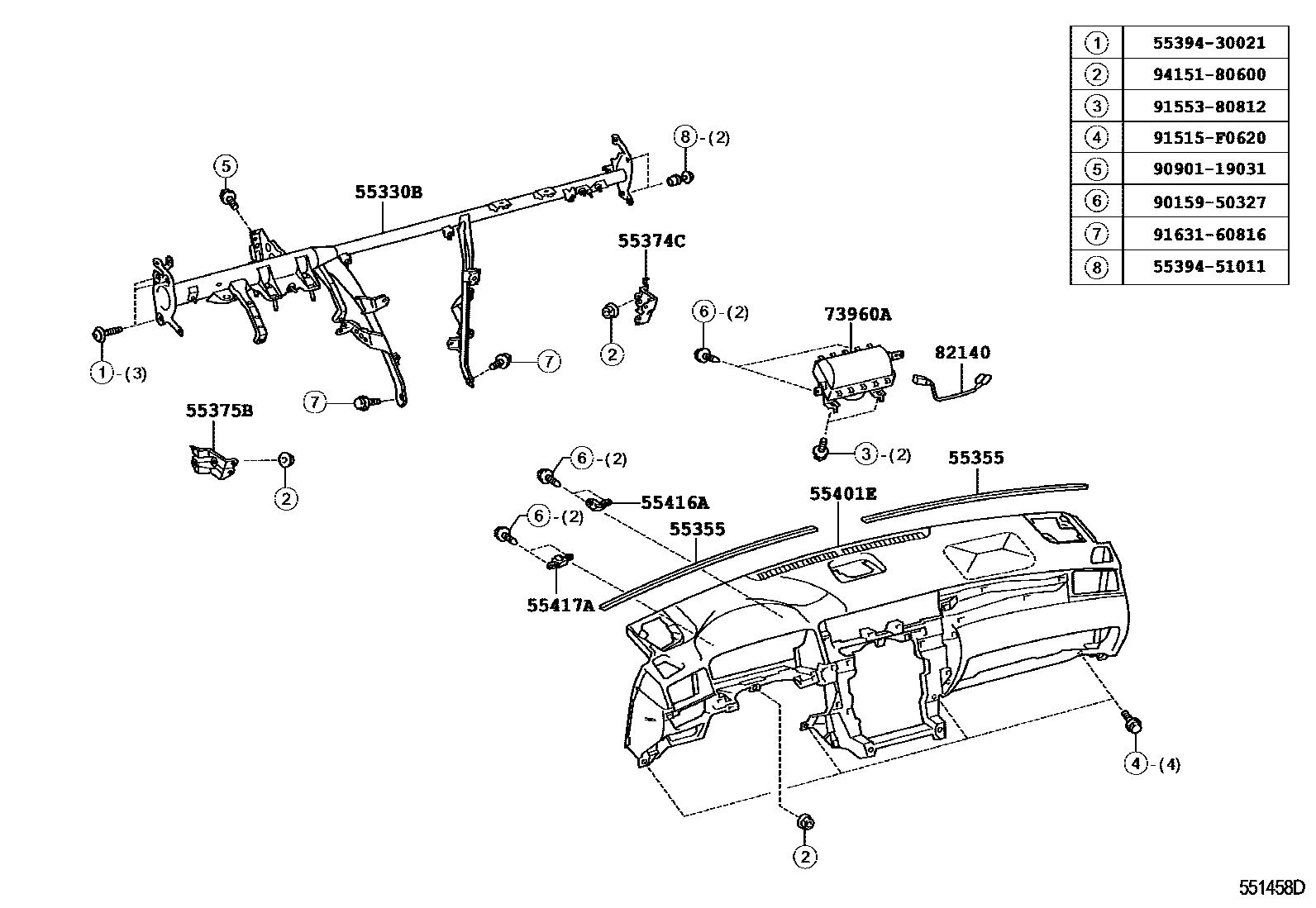

INSTRUMENT PANEL & GLOVE COMPARTMENT

0001 1 0002 1DRIVER SIDE 0003 1CENTER 0004 1PASSENGER SIDE

55330BREINFORCEMENT ASSY, INSTRUMENT PANEL

main55330-0N010iGRS18#200502

55355CUSHION, INSTRUMENT PANEL, NO.1

main55355-0N020iGRS18#200710

main55355-30060iGRS18#200502-200710

55374CBRACKET, INSTRUMENT PANEL LOWER MOUNTING, NO.1

main55374-0N010iGRS18#200502

55375BBRACKET, INSTRUMENT PANEL LOWER MOUNTING, NO.2

main55375-0N010iGRS18#200502

55401EPAD SUB-ASSY, INSTRUMENT PANEL SAFETY

main55401-0N010-C0iGRS18#200502-200808

BLACK,TRIM2#

main55401-0N010-E0iGRS18#200502-200808

ORCHID BROWN,TRIM0#

main55401-0N011-C0iGRS18#200809-200911

BLACK,TRIM2#

main55401-0N011-E0iGRS18#200809-200911

ORCHID BROWN,TRIM0#

55416ARETAINER, METER HOOD, NO.1

main55416-30150iGRS18#200502

55417ARETAINER, METER HOOD, NO.2

main55417-30070iGRS18#200502

73960AAIRBAG ASSY, INSTRUMENT PANEL PASSENGER W/O DOOR

main73960-0N010iGRS18#200502

82140WIRE ASSY, INSTRUMENT PANEL

main82140-0N010iGRS18#200502

5539430021BRACKET, INSTRUMENT PANEL TO PEDAL

main55394-30021

5539451011BRACKET, INSTRUMENT PANEL TO PEDAL

main55394-51011

9015950327

main90159-50327

9090119031

main90901-19031

91515F0620

main91515-F0620

9155380812

main91553-80812

9163160816

main91631-60816

9415180600

main94151-80600

17 parts on this diagram · 4 diagrams in section
