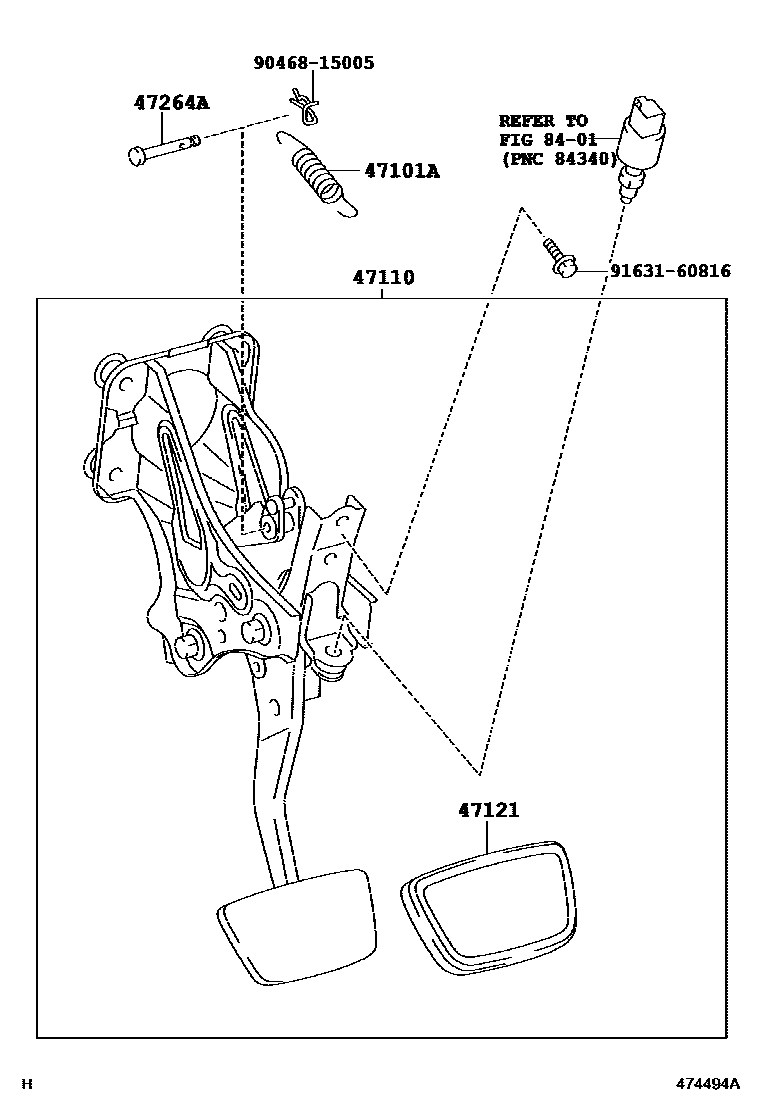

BRAKE PEDAL & BRACKET

0001 1 0002 1

47101ASPRING(FOR BRAKE PEDAL RETURN)

main90507-12011iGRS18#200502

47110SUPPORT ASSY, BRAKE PEDAL

main47110-0N010iGRS18#..25ROY,ROY,ROYEX,ROYG200502-200911

main47110-0N020iGRS188..25200510-200602

main47110-0N021iGRS188..25200603-200911

47121PAD, BRAKE PEDAL

main47121-50020iGRS18#200502

47264APIN(FOR PUSH ROD)

main90249-06180iGRS18#..25ROY,ROY,ROYEX,ROYG200502

main90249-08256iGRS188..25200510

8401SWITCH & RELAY & COMPUTER

→ Go to FIG 84-01

9046815005

main90468-15005

9163160816

main91631-60816
