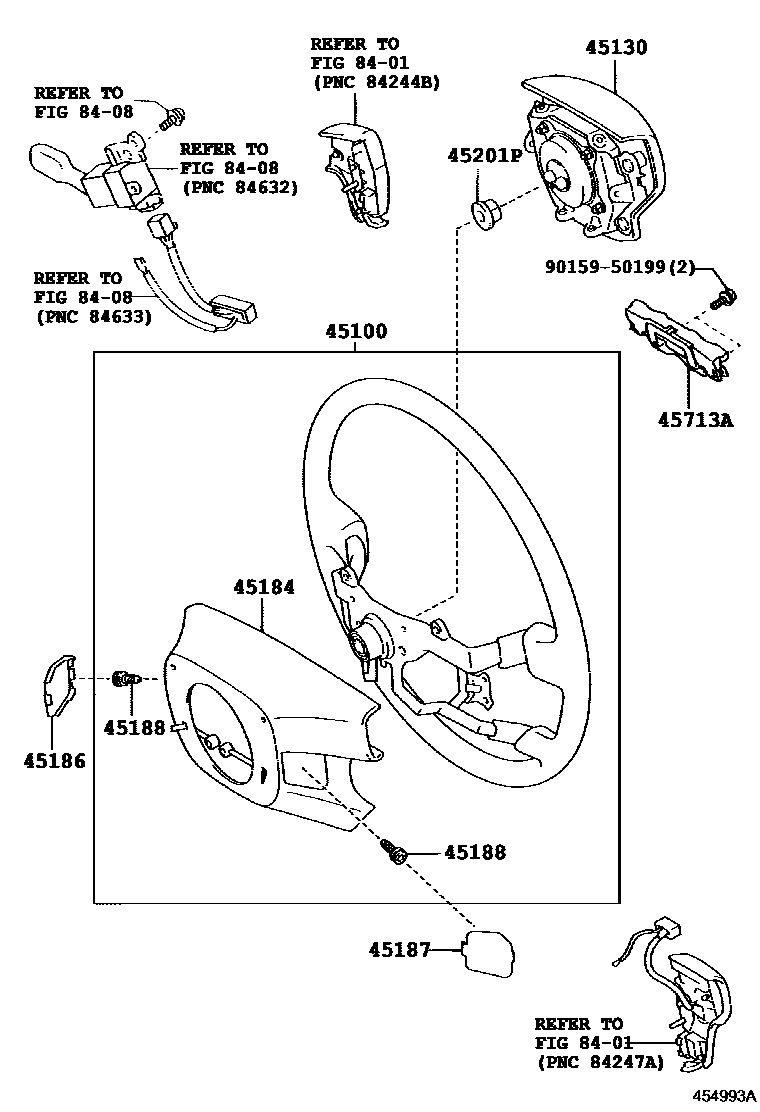

STEERING WHEEL

45100WHEEL ASSY, STEERING

main45100-0N010-C0iGRS188..25200502-200911

4-SPOKE,URETHANE,BLACK,TRIM2#

main45100-0N010-E0iGRS188..25200502-200911

4-SPOKE,URETHANE,ORCHID BROWN,TRIM0#

main45100-0N020-C0iGRS182..ROY,ROYG200502-200911

4-SPOKE,LEATHER,BLACK,TRIM2#

main45100-0N020-E0iGRS182..ROY,ROYG200502-200911

4-SPOKE,LEATHER,ORCHID BROWN,TRIM0#

45130BUTTON ASSY, HORN

main45130-0N011-C0iGRS18#200502-200911

BLACK,TRIM2#

main45130-0N011-E0iGRS18#200502-200911

ORCHID BROWN,TRIM0#

45184COVER, STEERING WHEEL BOSS, LOWER

main45184-0N010-C0iGRS18#200502-200911

BLACK,TRIM2#

main45184-0N010-E0iGRS18#200502-200911

ORCHID BROWN,TRIM0#

45186COVER, STEERING WHEEL, LOWER NO.2

main45186-0N010-C0iGRS18#..25ROY,ROY,ROYEX,ROYG200502-200911

BLACK,TRIM2#

main45186-0N010-E0iGRS18#..25ROY,ROY,ROYEX,ROYG200502-200911

ORCHID BROWN,TRIM0#

main45186-0N020-C0iGRS188..25200510-200911

BLACK,TRIM2#

main45186-0N020-E0iGRS188..25200510-200911

ORCHID BROWN,TRIM0#

45187COVER, STEERING WHEEL, LOWER NO.3

main45187-0N010-C0iGRS18#200502-200911

BLACK,TRIM2#

main45187-0N010-E0iGRS18#200502-200911

ORCHID BROWN,TRIM0#

45188SCREW, STEERING WHEEL PAD ATTACHING

main45188-60010×2iGRS18#200502

L=18

45201PNUT, STEERING WHEEL SET

main90178-C0025iGRS18#200710

main90179-12071iGRS18#200502-200709

45713ADAMPER, STEERING SHAKE

main45713-30150iGRS18#200502

8401SWITCH & RELAY & COMPUTER

→ Go to FIG 84-01

8408CRUISE CONTROL (AUTO DRIVE)

→ Go to FIG 84-08

9015950199

main90159-50199

11 parts on this diagram · 1 diagram in section
