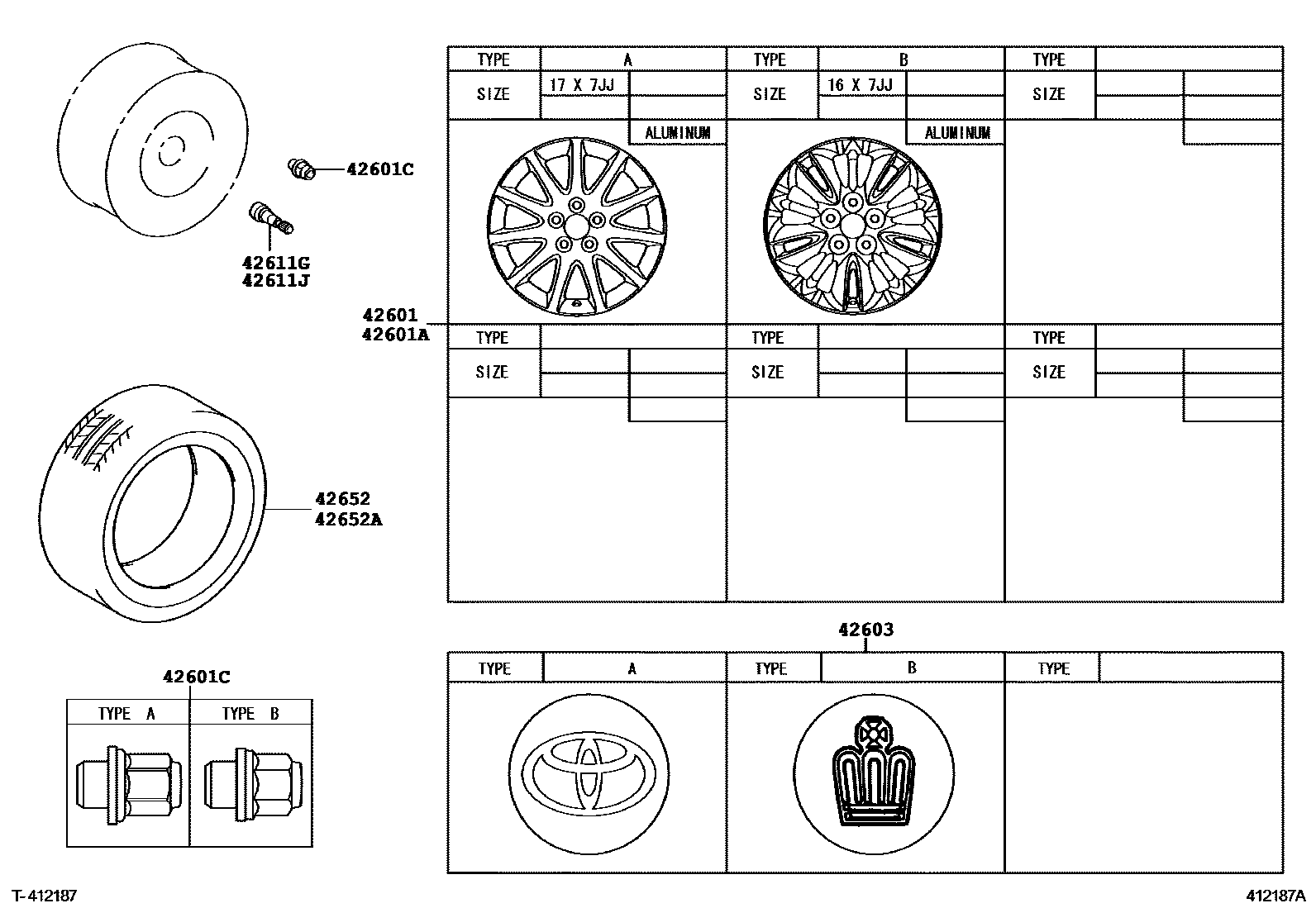

DISC WHEEL & WHEEL CAP

0001 1 0002 1

42601WHEEL, DISC

main42611-0N020iGRS18#..25,25ROY,ROY,ROYEX200502-200711

16X7JJ, #,TYPE B:REFER ILLUST.

main42611-0N021iGRS18#..25,25ROY,ROY,ROYEX200712

16X7JJ, #,TYPE B:REFER ILLUST.

main42611-3A250iGRS182..ROYG200502

17X7JJ, #,TYPE A:REFER ILLUST.

42601AWHEEL, DISC (FOR SPARE)

main42611-0N020iGRS18#..25,25ROY,ROY,ROYEX200502-200711

16X7JJ, #,TYPE B:REFER ILLUST.

main42611-0N021iGRS18#..25,25ROY,ROY,ROYEX200712

16X7JJ, #,TYPE B:REFER ILLUST.

main42611-3A250iGRS182..ROYG200502

17X7JJ, #,TYPE A:REFER ILLUST.

42601CNUT, HUB (FOR AXLE)

main90942-01033iGRS18#..25,25ROY,ROY,ROYEX200502-200906

TYPE B:REFER ILLUST.

main90942-01083iGRS182..ROYG200502

TYPE A:REFER ILLUST.

main90942-C1001iGRS18#..25,25ROY,ROY,ROYEX200906

TYPE B:REFER ILLUST.

42603ORNAMENT SUB-ASSY, WHEEL HUB

main42603-30530iGRS182..ROY200902

*ALU,TYPE B:REFER ILLUST.

main42603-30530iGRS182..ROY200902

*ALU,2.5 ROYAL SPECIAL VERSION,TYPE B:REFER ILLUST.

main42603-30570iGRS182..ROYG200502

*CHR,TYPE A:REFER ILLUST.

main42603-30580iGRS18#..25,25ROY,ROYEX200502-200902

*ALU,TYPE A:REFER ILLUST.

42611GVALVE (FOR TUBELESS TIRE)

main90942-05009iGRS18#..25,25ROY,ROY,ROYEX200502-200711

42611JVALVE (FOR TUBELESS TIRE SPARE)

main90942-05009iGRS182..ROYG200502-200711

42652TIRE

main42652-0N030iGRS18#..25,25ROY,ROY,ROYEX200502-200711

215/60R16,*B/S

main42652-0N040iGRS182..ROYG200502

215/55R17,*B/S

main42652-0N050iGRS18#..25,25ROY,ROY,ROYEX200502-200711

215/60R16,*D/L

42652ATIRE (FOR SPARE)

main42652-0N030iGRS18#..25,25ROY,ROY,ROYEX200502-200711

215/60R16,*B/S

main42652-0N040iGRS182..ROYG200502

215/55R17,*B/S

main42652-0N050iGRS18#..25,25ROY,ROY,ROYEX200502-200711

215/60R16,*D/L

8 parts on this diagram · 2 diagrams in section
