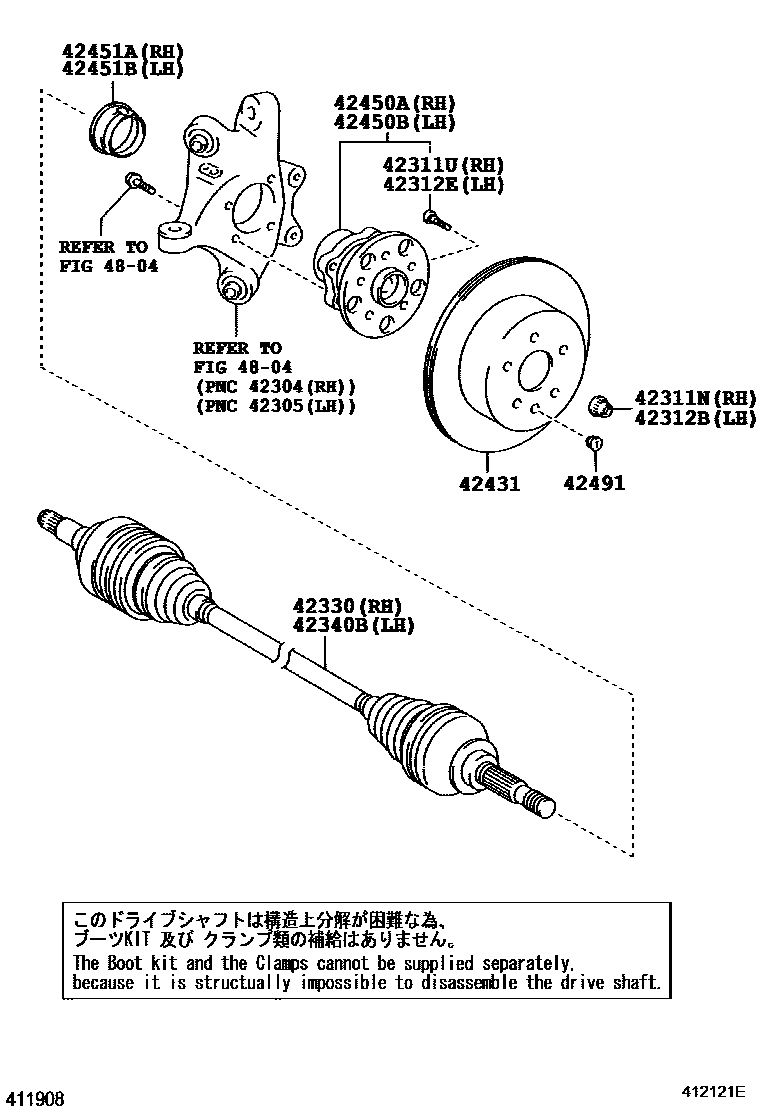

REAR AXLE SHAFT & HUB

42311NNUT(FOR REAR AXLE SHAFT RH)

main90177-26001iGRS18#200502

42311UBOLT, HUB(FOR REAR AXLE RH)

main90942-02070×5iGRS18#200502

42312BNUT(FOR REAR AXLE SHAFT LH)

main90177-26001iGRS18#200502

42312EBOLT, HUB(FOR REAR AXLE LH)

main90942-02070×5iGRS18#200502

42330SHAFT ASSY, REAR DRIVE, RH

main42330-0N020iGRS18#200502-200603

main42330-0N021iGRS18#200604-200611

main42330-0N022iGRS18#200612

42340BSHAFT ASSY, REAR DRIVE, LH

main42340-0N020iGRS18#200502-200603

main42340-0N021iGRS18#200604-200611

main42340-0N022iGRS18#200612

42431DISC, REAR

main42431-0N010×2iGRS18#200502-200610

main42431-0P010×2iGRS18#200611-200911

42450AHUB & BEARING ASSY, REAR AXLE, RH

main42410-0N010iGRS18#200502-200911

42450BHUB & BEARING ASSY, REAR AXLE, LH

main42410-0N010iGRS18#200502

42451ADEFLECTOR, REAR WHEEL BEARING DUST, NO.1 RH

main42451-30020iGRS18#200502

42451BDEFLECTOR, REAR WHEEL BEARING DUST, NO.1 LH

main42451-30020iGRS18#200502

42491PLUG, SHOE ADJUSTING HOLE (FOR PARKING BRAKE)

main47491-50010×2iGRS18#200502-200911

4804REAR SPRING & SHOCK ABSORBER

→ Go to FIG 48-04

13 parts on this diagram · 1 diagram in section
