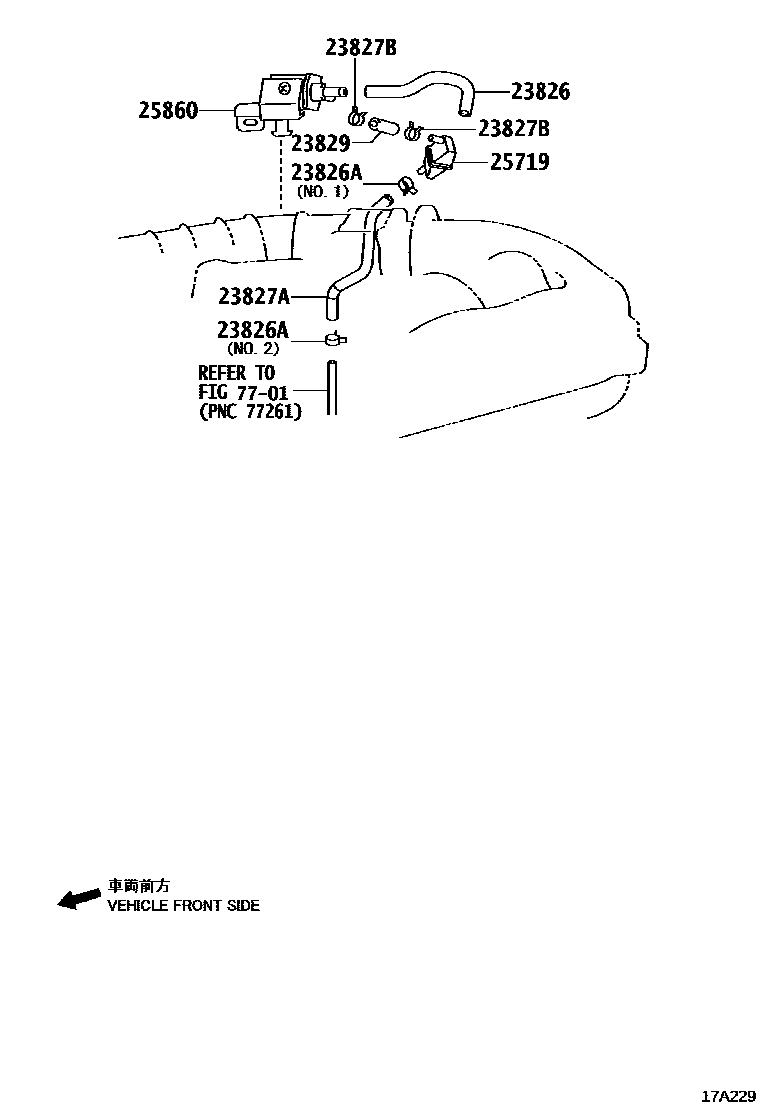

VACUUM PIPING

23826HOSE, FUEL VAPOR FEED, NO.1

main23826-0P120i3GRFE,5GRFE..GRS18#200711

main23826-31050i3GRFE,5GRFE..GRS18#200502-200710

23826ACLIP(FOR FUEL VAPOR FEED HOSE, NO.1)

main96132-41500i3GRFE,5GRFE..GRS18#200502-200911

NO.2

main96132-51300i3GRFE,5GRFE..GRS18#200502-200911

NO.1

23827AHOSE, FUEL VAPOR FEED, NO.2

main23827-0P080i3GRFE,5GRFE..GRS18#200808-200911

main23827-31060i3GRFE,5GRFE..GRS18#200502-200807

23827BCLIP(FOR FUEL VAPOR FEED HOSE, NO.2)

main96132-51300×2i3GRFE,5GRFE..GRS18#200502-200911

23829HOSE, FUEL VAPOR FEED, NO.3

main23829-0P060i3GRFE,5GRFE..GRS18#200711

main23829-31010i3GRFE,5GRFE..GRS18#200502-200711

25719TANK, VACUUM SURGE

main25719-31010i3GRFE,5GRFE..GRS18#200502

25860VALVE ASSY, VACUUM SWITCHING, NO.1

main25860-31040i3GRFE,5GRFE..GRS18#200502

7701FUEL TANK & TUBE

→ Go to FIG 77-01

8 parts on this diagram · 1 diagram in section
