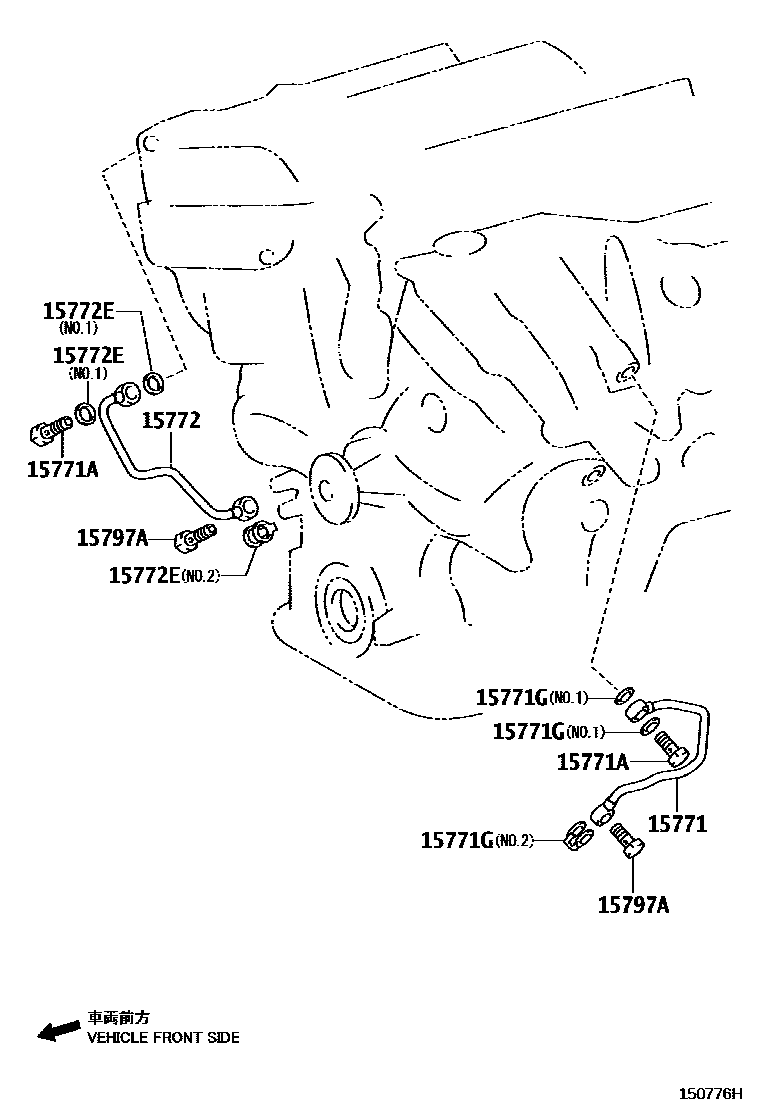

ENGINE OIL COOLER
15771PIPE, OIL, NO.1
(L)
(J)
15771AUNION(FOR OIL PIPE)
15771GGASKET
NO.1
NO.2
15772PIPE, OIL, NO.2
(L)
(J)
15772EGASKET(FOR OIL PIPE)
NO.1
NO.2
15797ABOLT, OIL CHECK VALVE
