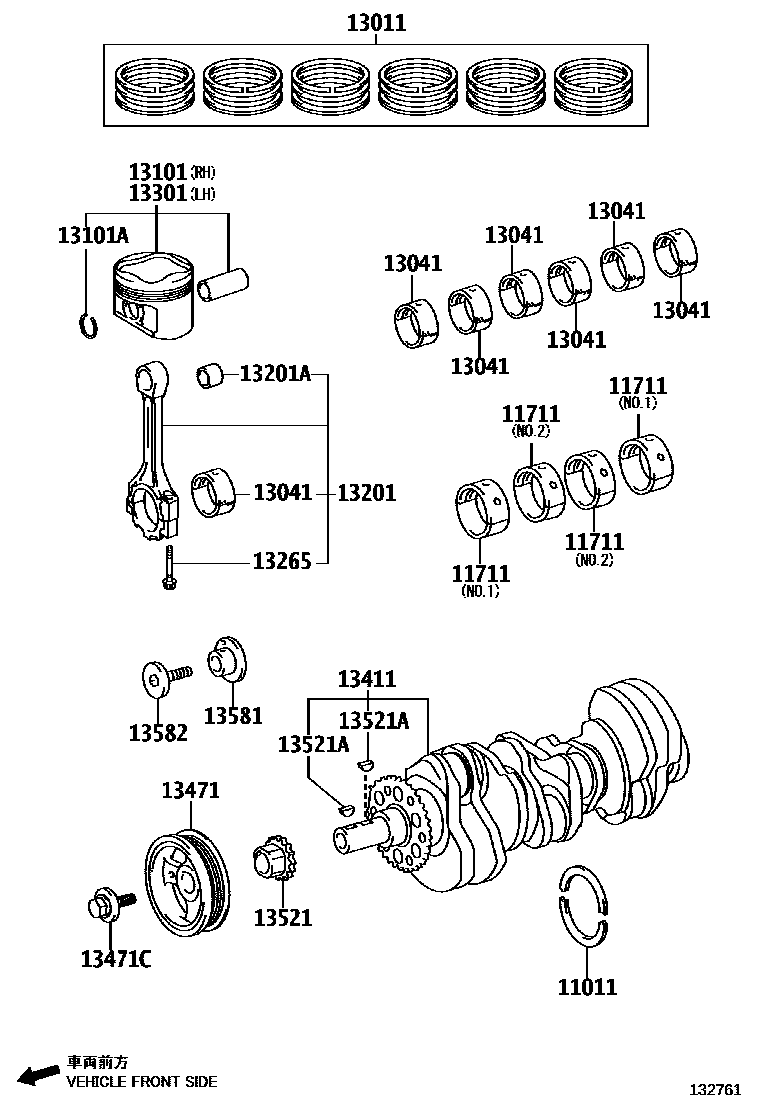

CRANKSHAFT & PISTON
11011WASHER SET, CRANKSHAFT THRUST
STD,(L)
STD,(J)
11711BEARING, CRANKSHAFT
MARK1,NO.2,(L):REFER R/M
MARK2,NO.2,(L):REFER R/M
MARK3,NO.2,(L):REFER R/M
MARK4,NO.2,(L):REFER R/M
MARK5,NO.2,(L):REFER R/M
MARK1,NO.2,(J):REFER R/M
MARK2,NO.2,(J):REFER R/M
MARK3,NO.2,(J):REFER R/M
MARK4,NO.2,(J):REFER R/M
MARK5,NO.2,(J):REFER R/M
MARK1,NO.1,(L):REFER R/M
MARK2,NO.1,(L):REFER R/M
MARK3,NO.1,(L):REFER R/M
MARK4,NO.1,(L):REFER R/M
MARK5,NO.1,(L):REFER R/M
MARK1,NO.1,(J):REFER R/M
MARK2,NO.1,(J):REFER R/M
MARK3,NO.1,REFER R/M
MARK4,NO.1,(J):REFER R/M
MARK5,NO.1,REFER R/M
13011RING SET, PISTON
STD
STD
13041BEARING, CONNECTING ROD
MARK1,(L):REFER R/M
MARK2,(L):REFER R/M
MARK3,(L):REFER R/M
MARK4,(L):REFER R/M
MARK1,(L):REFER R/M
MARK2,(L):REFER R/M
MARK3,(L):REFER R/M
MARK4,(L):REFER R/M
MARK1,(L):REFER R/M
MARK2,(L):REFER R/M
MARK3,(L):REFER R/M
MARK4,(L):REFER R/M
MARK1,REFER REPAIR MANUAL
MARK2,(J):REFER R/M
MARK3,(J):REFER R/M
MARK4,(J):REFER R/M
MARK1,(J):REFER R/M
MARK2,(J):REFER R/M
MARK3,(J):REFER R/M
MARK4,(J):REFER R/M
MARK1,(J):REFER R/M
MARK2,(J):REFER R/M
MARK3,(J):REFER R/M
MARK4,(J):REFER R/M
13101PISTON SUB-ASSY, W/PIN
STD
STD
13101ARING, HOLE SNAP(FOR PISTON PIN)
13201ROD SUB-ASSY, CONNECTING
13201ABUSH(FOR CONNECTING ROD SMALL END)
13265BOLT, CONNECTING ROD
13301PISTON SUB-ASSY, W/PIN, LH
STD
STD
13411CRANKSHAFT
13471PULLEY, CRANKSHAFT
(L)
(J)
13471CBOLT(FOR CRANKSHAFT PULLEY SET)
13521GEAR OR SPROCKET, CRANKSHAFT TIMING
13521AKEY(FOR CRANKSHAFT TIMING GEAR)
13581SHAFT, IDLE GEAR, NO.1
13582SHAFT, IDLE GEAR, NO.2
17 parts on this diagram · 1 diagram in section
