SHORT BLOCK ASSEMBLY

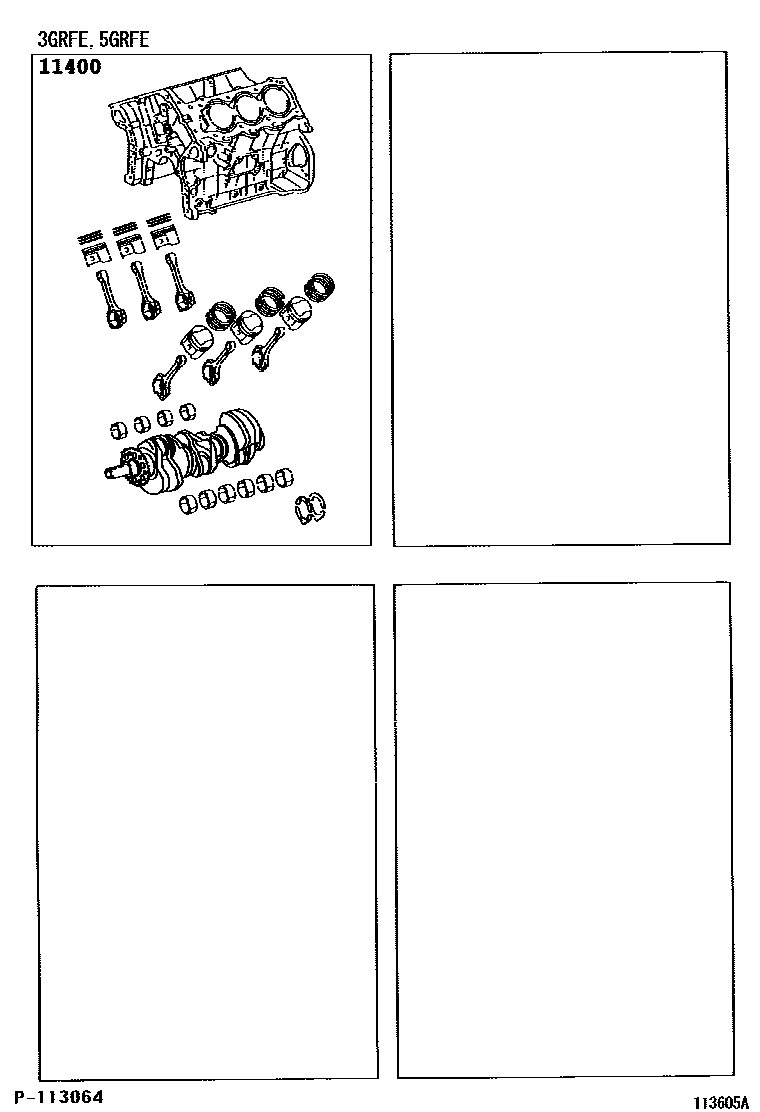

Parts diagram
11400BLOCK ASSY, SHORT
main11400-0P010i200502-200507
main11400-0P020i200507
main11400-0P030i200510

1 parts on this diagram · 1 diagram in section
