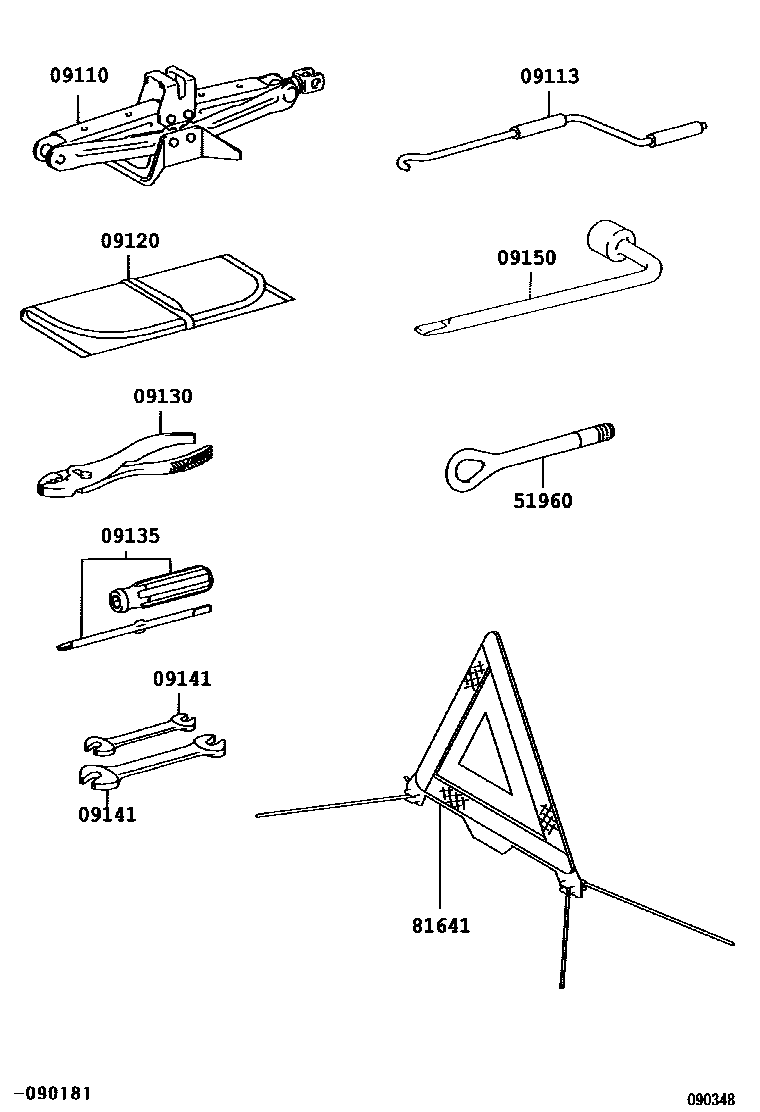

STANDARD TOOL

09110JACK ASSY

main09111-0N010200502-200709

main09111-0N011200710

09113HANDLE, JACK

main09113-0N010200502

09120BAG, TOOL

main09120-0N010200502

09130PLIERS

main09130-0N010200502

09135DRIVER, SCREW

main09135-0N010200502

09141SPANNER

main09141-0N010200502

main09141-0N020200502

09150WRENCH, HUB NUT BOX

main09150-0D010200502-200707

main09150-0D020200708

51960HOOK ASSY, FRONT

main51961-0N010200502-200711

main51961-0N011200712

81641REFLECTOR, TRIANGLE

main81641-02010200502

9 parts on this diagram · 1 diagram in section
