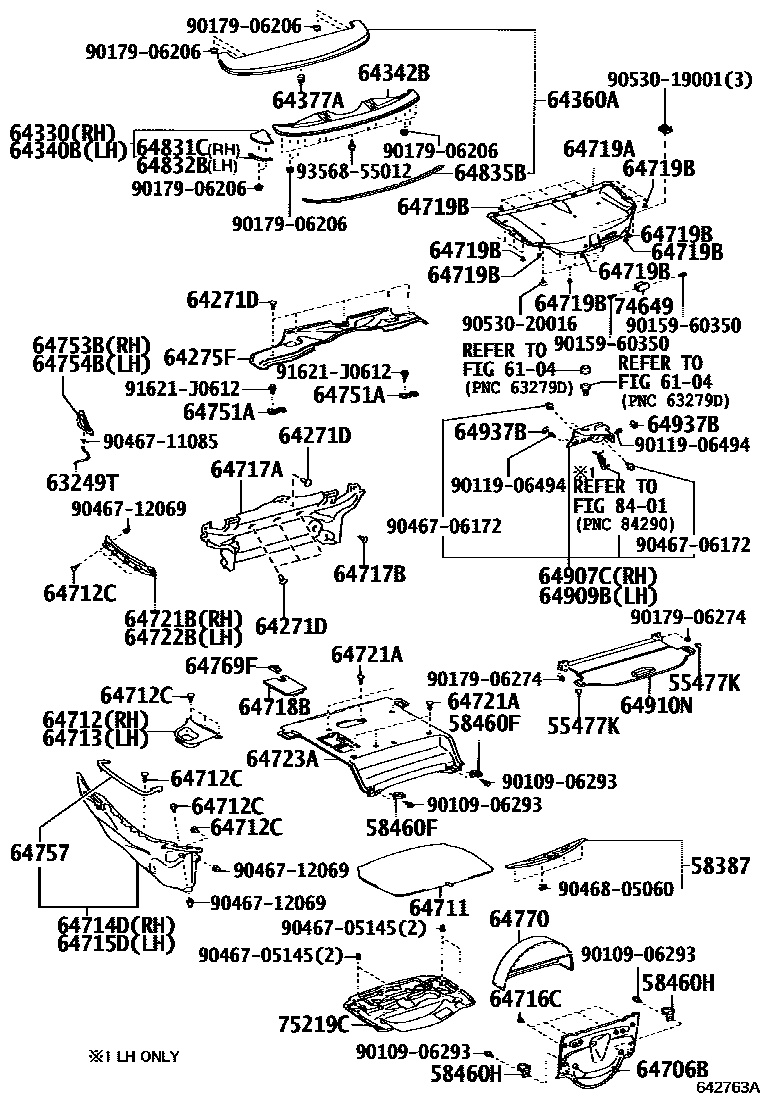

PACKAGE TRAY PANEL & LUGGAGE COMPARTMENT MAT
55477KCOVER, TONNEAU SERVICE HOLE
58387PLATE, REAR FLOOR FINISH
MD.CHARCOAL,TRIM0#,20,21
MD.CHARCOAL,TRIM0#,2#,4#,5#
MD.CHARCOAL,TRIM0#,2#,4#
58460FSTRIKER ASSY, LUGGAGE HOLD BELT
58460HSTRIKER ASSY, LUGGAGE HOLD BELT
6104
63249THOSE, REMOVABLE ROOF DRAIN
RH
LH
64271DCLIP(FOR BACK PANEL TRIM)
64275FCOVER, BACK PANEL TRIM
MEDIUM CHARCOAL,TRIM0#,20,21
MEDIUM CHARCOAL,TRIM0#,2#,4#,5#
MEDIUM CHARCOAL,TRIM0#,2#,4#
64330PANEL ASSY, PACKAGE TRAY TRIM
BLACK,TRIM0#,2#
BLACK,TRIM0#,20,21
BLACK,TRIM0#,2#,5#
DK.BROWN,TRIM4#
64340BPANEL ASSY, PACKAGE TRAY TRIM, NO.2
BLACK,TRIM0#,2#,5#
BLACK,TRIM0#,2#
BLACK,TRIM0#,20,21
DK.BROWN,TRIM4#
64342BCOVER, PACKAGE TRAY TRIM UNDER
64360APANEL ASSY, PACKAGE TRAY, CENTER
BLACK,TRIM0#,2#,5#
BLACK,TRIM0#,20,21
BLACK,TRIM0#,2#
DK.BROWN,TRIM4#
64377ACUSHION, PACKAGE TRAY TRIM
64706BCOVER SUB-ASSY, LUGGAGE COMPARTMENT TRIM, REAR
W(RUN FLATS TIRE),MEDIUM CHARCOAL,TRIM0#,2#,4#
W(RUN FLATS TIRE),MEDIUM CHARCOAL,TRIM0#,20,21
MEDIUM CHARCOAL,TRIM0#,2#,4#,5#
MEDIUM CHARCOAL,TRIM0#,2#,4#
MEDIUM CHARCOAL,TRIM0#,20,21
64711MAT, LUGGAGE COMPARTMENT FLOOR
W(RUN FLATS TIRE),MEDIUM CHARCOAL,TRIM0#,20,21
sub64711-24151
W(RUN FLATS TIRE),MEDIUM CHARCOAL,TRIM0#,20,21
W(RUN FLATS TIRE),MEDIUM CHARCOAL,TRIM0#,2#,4#
MEDIUM CHARCOAL,TRIM0#,20,21
MEDIUM CHARCOAL,TRIM0#,2#,4#,5#
MEDIUM CHARCOAL,TRIM0#,2#,4#
64712COVER, LUGGAGE COMPARTMENT TRIM, RH
MEDIUM CHARCOAL,TRIM0#,20,21
MEDIUM CHARCOAL,TRIM0#,2#,4#,5#
MEDIUM CHARCOAL,TRIM0#,2#,4#
64712CCLIP(FOR LUGGAGE COMPARTMENT TRIM COVER)
64713COVER, LUGGAGE COMPARTMENT TRIM, LH
MEDIUM CHARCOAL,TRIM0#,20,21
MEDIUM CHARCOAL,TRIM0#,2#,4#,5#
MEDIUM CHARCOAL,TRIM0#,2#,4#
64714DCOVER, LUGGAGE COMPARTMENT TRIM, SIDE, RH
MEDIUM CHARCOAL,TRIM00,20,21
MEDIUM CHARCOAL,TRIM0#,2#,4#
BEIJING OR CHINA SPEC,MEDIUM CHARCOAL,TRIM0#,2#,4#
64715DCOVER, LUGGAGE COMPARTMENT TRIM, SIDE, LH
MEDIUM CHARCOAL,TRIM0#,20,21
MEDIUM CHARCOAL,TRIM0#,2#,4#,5#
MEDIUM CHARCOAL,TRIM0#,2#,4#
64716CCLIP(FOR LUGGAGE COMPARTMENT TRIM REAR COVER)
64717ACOVER, LUGGAGE COMPARTMENT TRIM, FRONT
MEDIUM CHARCOAL,TRIM0#,20,21
MEDIUM CHARCOAL,TRIM0#,2#,4#,5#
MEDIUM CHARCOAL,TRIM0#,2#,4#
64717BCLIP(FOR LUGGAGE COMPARTMENT TRIM FRONT COVER)
64718BCOVER, LUGGAGE TRIM SERVICE HOLE
MEDIUM CHARCOAL,TRIM0#,2#,4#,5#
MEDIUM CHARCOAL,TRIM0#,2#,4#
MEDIUM CHARCOAL,TRIM0#,20,21
64719ACOVER, LUGGAGE COMPARTMENT DOOR
MEDIUM CHARCOAL,TRIM0#,20,21
MEDIUM CHARCOAL,TRIM0#,2#,4#,5#
MEDIUM CHARCOAL,TRIM0#,2#,4#
64719BCLIP(FOR LUGGAGE COMPARTMENT DOOR)
64721ACLIP(FOR LUGGAGE COMPARTMENT TRIM INNER COVER)
64721BCOVER, LUGGAGE COMPARTMENT TRIM, NO.1
MEDIUM CHARCOAL,TRIM0#,20,21
MEDIUM CHARCOAL,TRIM0#,2#,4#,5#
MEDIUM CHARCOAL,TRIM0#,2#,4#
64722BCOVER, LUGGAGE COMPARTMENT TRIM, NO.2
MEDIUM CHARCOAL,TRIM0#,2#,4#
MEDIUM CHARCOAL,TRIM0#,20,21
MEDIUM CHARCOAL,TRIM0#,2#,4#,5#
64723ACOVER, LUGGAGE COMPARTMENT TRIM, INNER LOWER
MEDIUM CHARCOAL,TRIM0#,20,21
MEDIUM CHARCOAL,TRIM0#,2#,4#,5#
MEDIUM CHARCOAL,TRIM0#,2#,4#
W(NAVIGATION SYSTEM),MEDIUM CHARCOAL,TRIM0#,2#,4#,5#
W(NAVIGATION SYSTEM),MEDIUM CHARCOAL,TRIM0#,2#,4#
W(NAVIGATION SYSTEM),MEDIUM CHARCOAL,TRIM0#,20,21
MEDIUM CHARCOAL,TRIM0#,20,21
64751ABRACKET, LUGGAGE COMPARTMENT COVER, NO.1
64753BPLATE, REAR FLOOR FINISH SIDE, RH
MD.CHARCOAL,TRIM0#,20,21
MD.CHARCOAL,TRIM0#,2#,4#,5#
MD.CHARCOAL,TRIM0#,2#,4#
64754BPLATE, REAR FLOOR FINISH SIDE, LH
MD.CHARCOAL,TRIM0#,20,21
MD.CHARCOAL,TRIM0#,2#,4#,5#
MD.CHARCOAL,TRIM0#,2#,4#
64757PROTECTOR, LUGGAGE COMPATMENT COVER, NO.1
MD.CHARCOAL,TRIM0#,20,21,RH
MD.CHARCOAL,TRIM0#,2#,4#,5#,RH
MD.CHARCOAL,TRIM0#,2#,4#,RH
MD.CHARCOAL,TRIM0#,2#,4#,5#,LH
MD.CHARCOAL,TRIM0#,2#,4#,LH
MD.CHARCOAL,TRIM0#,20,21,LH
64769FKNOB, LUGGAGE TRIM SERVICE HOLE COVER
64770COVER ASSY, SPARE WHEEL
64831CWEATHERSTRIP, BACK WINDOW GLASS, RH
64832BWEATHERSTRIP, BACK WINDOW GLASS, LH
64907CSTOPPER SUB-ASSY, TONNEAU COVER, RH
MD.CHARCOAL,TRIM0#,2#,4#,5#
MD.CHARCOAL,TRIM0#,20,21
MD.CHARCOAL,TRIM0#,2#,4#
64909BSTOPPER SUB-ASSY, TONNEAU COVER, LH
MD.CHARCOAL,TRIM0#,2#,4#,5#
MD.CHARCOAL,TRIM0#,2#,4#
MD.CHARCOAL,TRIM0#,20,21
64910NCOVER ASSY, TONNEAU
MEDIUM CHARCOAL,TRIM0#,2#,4#,5#
MEDIUM CHARCOAL,TRIM0#,20,21
MEDIUM CHARCOAL,TRIM0#,2#,4#
64937BCAP, TONNEAU COVER HOLDER
MD.CHARCOAL,TRIM0#,2#,4#,5#
MD.CHARCOAL,TRIM0#,20,21
MD.CHARCOAL,TRIM0#,2#,4#
74649GRIP, LUGGAGE COMPARTMENT DOOR ASSIST
MD.CHARCOAL,TRIM0#,2#,4#,5#
MD.CHARCOAL,TRIM0#,2#
MD.CHARCOAL,TRIM0#,2#,4#
75219CCOVER, TOOL BOX
8401
9010906293
main90109-06293
9011906494
main90119-06494
9015960350
main90159-60350
9017906206
main90179-06206
9017906274
main90179-06274
9046705145
main90467-05145
9046706172
main90467-06172
9046711085
main90467-11085
9046712069
main90467-12069
9046805060
main90468-05060
9053019001
main90530-19001
9053020016
main90530-20016
91621J0612
main91621-J0612
9356855012
main93568-55012
60 parts on this diagram · 1 diagram in section
