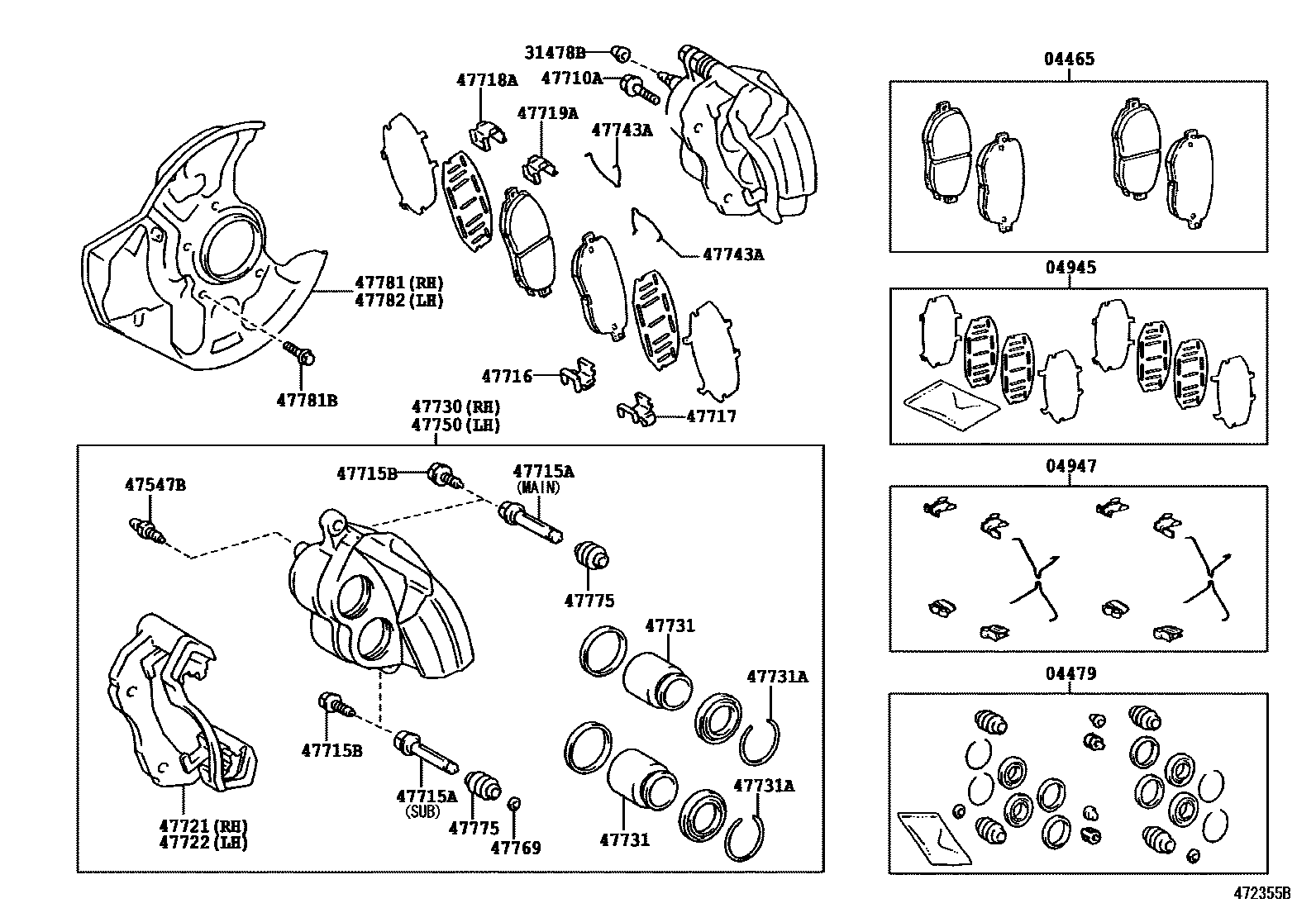

FRONT DISC BRAKE CALIPER & DUST COVER

04465PAD KIT, DISC BRAKE, FRONT

main04465-22311iUZZ40..ARL200208-200212

MARK NBK PN529H,SINGAPORE SPEC

sub04465-22312

main04465-22311iUZZ40..ARL200208-200212

MARK NBK PN529H,HONG KONG SPEC

sub04465-22312

main04465-22312iUZZ40..LHD..EUR200708-201007

MARK NBK PN529AH,TAIWAN SPEC

main04465-22312iUZZ40..ARL200212-200508

MARK NBK PN529AH,SINGAPORE SPEC

main04465-22312iUZZ40..RHD200508-201007

MARK NBK PN529AH,HONG KONG OR SINGAPORE SPEC

main04465-22312iUZZ40..ARL200212-200508

MARK NBK PN529AH,HONG KONG SPEC

main04465-30231iUZZ40..ARL200105-200208

MARK NBK PN529,HONG KONG SPEC

sub04465-22311

main04465-30231iUZZ40..RHD..EUR200105-200208

MARK NBK PN529,SINGAPORE SPEC

sub04465-22311

main04465-30272iUZZ40200212-201007

MARK TEXTAR T4146

main04465-30290iUZZ40..GCC200205-200212

MARK NBK PN532H

main04465-30320iUZZ40..ARL,EUR200105-200212

MARK NBK PN532H

04479CYLINDER KIT, DISC BRAKE, FRONT

main04478-30240iUZZ40200605

main04479-30191iUZZ40200105-200605

sub04478-30240

04945SHIM KIT, ANTI SQUEAL, FRONT

main04945-30120iUZZ40..RHD..5FC..EUR200105-200208

HONG KONG SPEC

sub04945-30140

main04945-30120iUZZ40..5FC..ARL200105-200208

SINGAPORE SPEC

sub04945-30140

main04945-30120iUZZ40200212-200508

sub04945-30140

main04945-30130iUZZ40..5FC200105-200212

sub04945-30120

main04945-30140iUZZ40..ARL200208-200508

HONG KONG SPEC

main04945-30140iUZZ40..RHD..EUR200208-200508

SINGAPORE SPEC

main04945-30140iUZZ40200508

04947FITTING KIT, DISC BRAKE, FRONT

main04947-30120iUZZ40200105-200508

31478BCAP, BLEEDER PLUG(FOR FRONT DISC BRAKE)

main31478-30010iUZZ40200105-200508

47547BPLUG, BLEEDER(FOR FRONT DISC BRAKE)

main47547-27030iUZZ40200105-200508

47710ABOLT, HEXAGON(FOR FRONT DISC BRAKE CALIPER)

main90105-12228iUZZ40200105-200508

*12-1.25PX32-24

47715APIN, FRONT DISC BRAKE CYLINDER SLIDE

main47715-22070iUZZ40200105-200508

SUB

main47715-30060iUZZ40200105-200508

MAIN

47715BBOLT(FOR FRONT DISC BRAKE CYLINDER SLIDE)

main90105-08164iUZZ40200105-200508

47716PLATE, PAD SUPPORT, NO.1(FOR FRONT DISC BRAKE)

main47716-30120iUZZ40200105-200508

47717PLATE, PAD SUPPORT, NO.2(FOR FRONT DISC BRAKE)

main47716-30130iUZZ40200105-200508

47718APLATE, PAD SUPPORT, NO.3(FOR FRONT DISC BRAKE)

main47717-50051iUZZ40200105-200508

47719APLATE, PAD SUPPORT, NO.4(FOR FRONT DISC BRAKE)

main47717-50061iUZZ40200105-200508

47721MOUNTING, FRONT DISC BRAKE CYLINDER, RH

main47721-30180iUZZ40..RHD..EUR200105-200508

SINGAPORE SPEC

main47721-30180iUZZ40..RHD..EUR200105-200508

HONG KONG SPEC

main47721-30180iUZZ40..RHD200508

HONG KONG OR SINGAPORE SPEC

main47721-30180iUZZ40..LHD..EUR200708

TAIWAN SPEC

main47721-30220iUZZ40200105-200508

47722MOUNTING, FRONT DISC BRAKE CYLINDER, LH

main47722-30100iUZZ40..LHD..EUR200708

TAIWAN SPEC

main47722-30100iUZZ40..ARL200105-200508

SINGAPORE SPEC

main47722-30100iUZZ40..ARL200105-200508

HONG KONG SPEC

main47722-30100iUZZ40..RHD200508

HONG KONG OR SINGAPORE SPEC

main47722-30120iUZZ40200105-200508

47730CYLINDER ASSY, FRONT DISC BRAKE, RH

main47730-30430iUZZ40..LHD..EUR200708

TAIWAN SPEC

main47730-30430iUZZ40..ARL200105-200508

SINGAPORE SPEC

main47730-30430iUZZ40..ARL200105-200508

HONG KONG SPEC

main47730-30430iUZZ40..RHD200508

HONG KONG OR SINGAPORE SPEC

main47730-30500iUZZ40..ARL,EUR200105-200508

main47730-30510iUZZ40..GCC200205-200508

main47730-30510iUZZ40..LHD..EUR200608

ISRAEL SPEC

47731PISTON, FRONT DISC BRAKE

main47731-30170iUZZ40200105-200508

sub47731-30140

47731ARING, SET(FOR FRONT DISC BRAKE PISTON)

main90520-52006iUZZ40200105-200508

47743ASPRING, ANTI-SQUEAL(FOR FRONT DISC BRAKE)

main47743-30020iUZZ40200105-200508

47750CYLINDER ASSY, DISC BRAKE, LH

main47750-30430iUZZ40..RHD200508

HONG KONG OR SINGAPORE SPEC

main47750-30430iUZZ40..LHD..EUR200708

TAIWAN SPEC

main47750-30430iUZZ40..ARL200105-200508

SINGAPORE SPEC

main47750-30430iUZZ40..ARL200105-200508

HONG KONG SPEC

main47750-30500iUZZ40..ARL,EUR200105-200508

main47750-30510iUZZ40..GCC200205-200508

main47750-30510iUZZ40..LHD..EUR200608

ISRAEL SPEC

47769BUSH, CYLINDER SLIDE, NO.1(FOR FRONT DISC BRAKE)

main47769-50010iUZZ40200105-200508

47775BOOT, BUSH DUST(FOR FRONT DISC BRAKE)

main47775-30070iUZZ40200105-200604

sub47775-50010

main47775-50010iUZZ40200605

47781COVER, DISC BRAKE DUST, FRONT RH

main47781-30210iUZZ40200105-200508

47781BBOLT(FOR DUST COVER SETTING)

main90148-60028iUZZ40200105-200508

*6-1.0PX14-10.5

47782COVER, DISC BRAKE DUST, FRONT LH

main47782-30210iUZZ40200105-200508

25 parts on this diagram · 1 diagram in section
