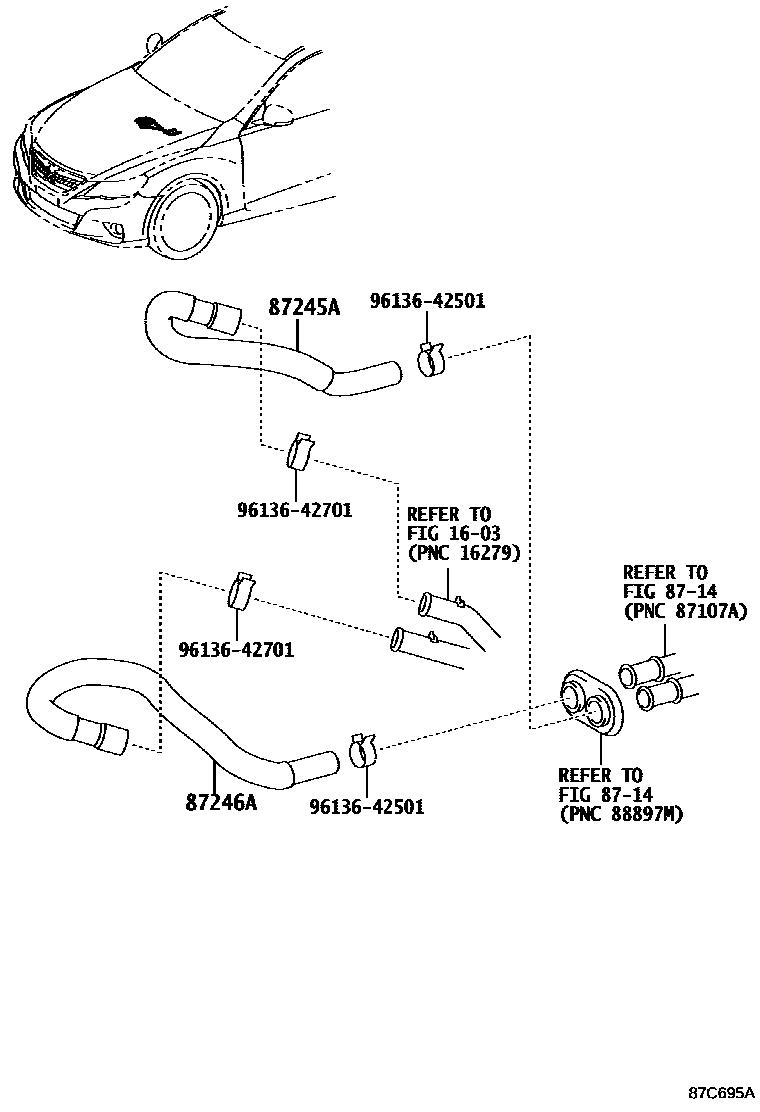

HEATING & AIR CONDITIONING - WATER PIPING

1603RADIATOR & WATER OUTLET

→ Go to FIG 16-03

8714HEATING & AIR CONDITIONING - COOLER UNIT

→ Go to FIG 87-14

87245AHOSE, HEATER WATER, INLET A

main87245-53180iGRX130201112-201208

87246AHOSE, HEATER WATER, OUTLET A

main87245-30A40iGRX130201112-201208

9613642501

main96136-42501

9613642701

main96136-42701

6 parts on this diagram · 1 diagram in section
