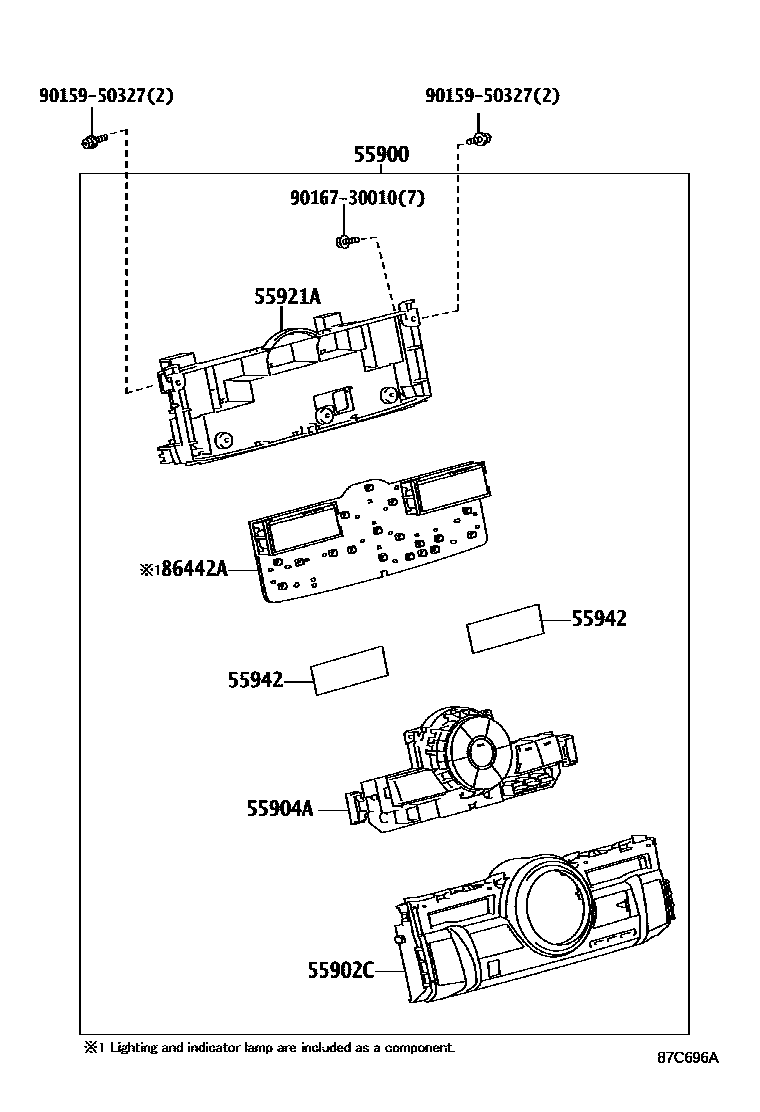

HEATING & AIR CONDITIONING - CONTROL & AIR DUCT

0001 1HEATER CONTROL 0002 1AIR DUCT 0003 1SNESOR

55900CONTROL ASSY, AIR CONDITIONER

main55900-22661iGRX130201112-201208

main55900-22700iGRX130201208-201611

55902CPANEL SUB-ASSY, AIR CONDITIONER

main55902-22170iGRX130201112-201208

main55902-22171iGRX130201208

55904AHOUSING SUB-ASSY, HEATER CONTROL

main55904-22170iGRX130201112-201208

55921ARETAINER, HEATER CONTROL

main55921-22111iGRX130201112-201208

55942GUARD, HEATER CONTROL

main55942-22020iGRX130201112-201208

86442ABOARD, HEATER CONTROL SWITCH

main86442-22030iGRX130201112-201208

main86442-22050iGRX130201208

9015950327

main90159-50327

9016730010

main90167-30010

8 parts on this diagram · 3 diagrams in section
