AIR BAG

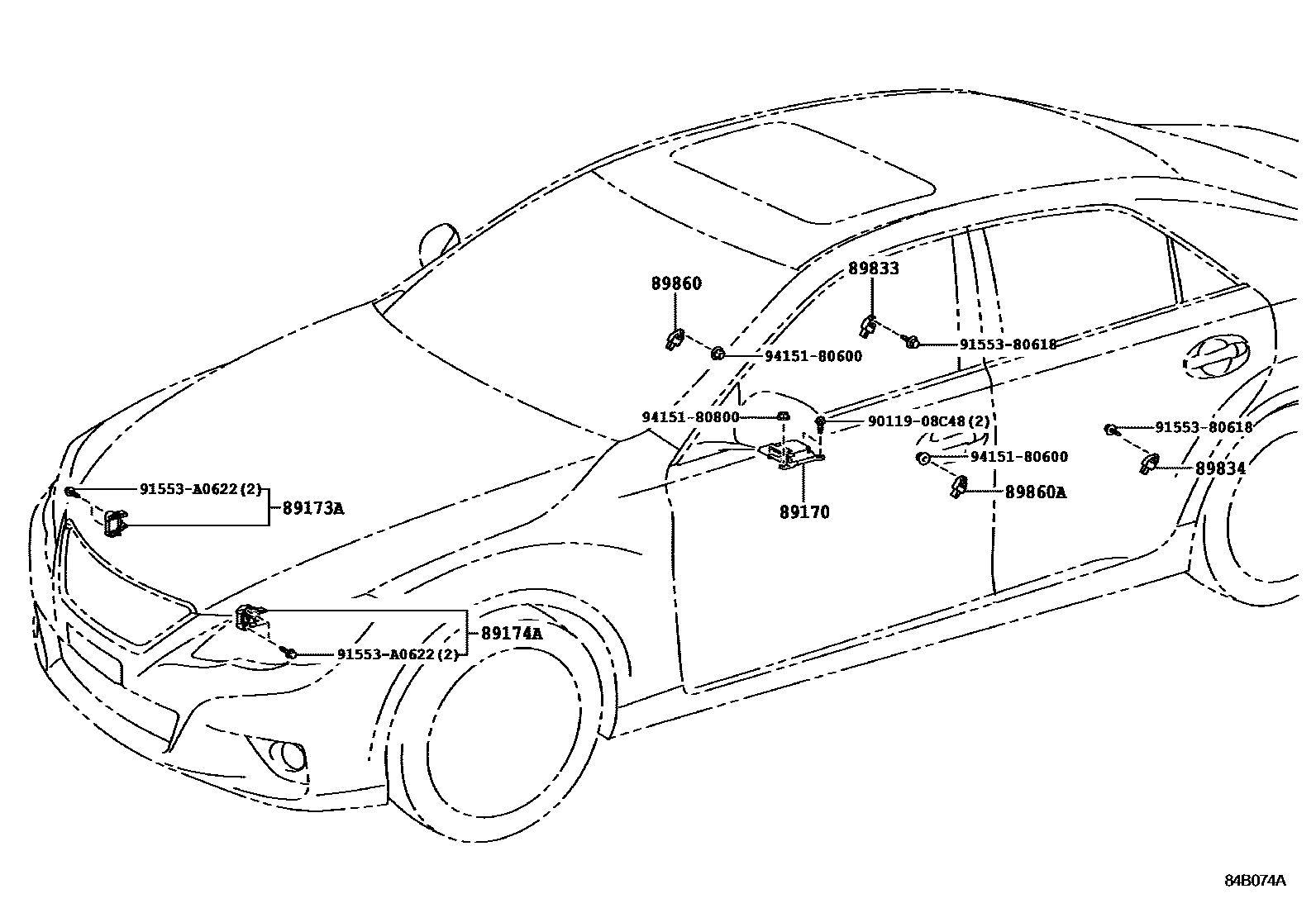

Parts diagram

89170SENSOR ASSY, AIRBAG

main89170-22110i201208

main89170-22150i201112-201208

89173ASENSOR, AIRBAG, FRONT RH

main89173-39385i201112-201208

main89173-39415i201208

89174ASENSOR, AIRBAG, FRONT LH

main89173-39385i201112-201208

main89173-39415i201208

89833SENSOR, AIRBAG, REAR RH

main89831-30020i201208

main89831-47010i201112-201208

89834SENSOR, AIRBAG, REAR LH

main89831-30020i201208

main89831-47010i201112-201208

89860SENSOR ASSY, SIDE AIRBAG, RH

main89831-30010i201208

main89831-33010i201112-201208

89860ASENSOR ASSY, SIDE AIRBAG, LH

main89831-30010i201208

main89831-33010i201112-201208

9011908C48

main90119-08C48

9155380618

main91553-80618

91553A0622

main91553-A0622

9415180600

main94151-80600

9415180800

main94151-80800

12 parts on this diagram · 1 diagram in section
