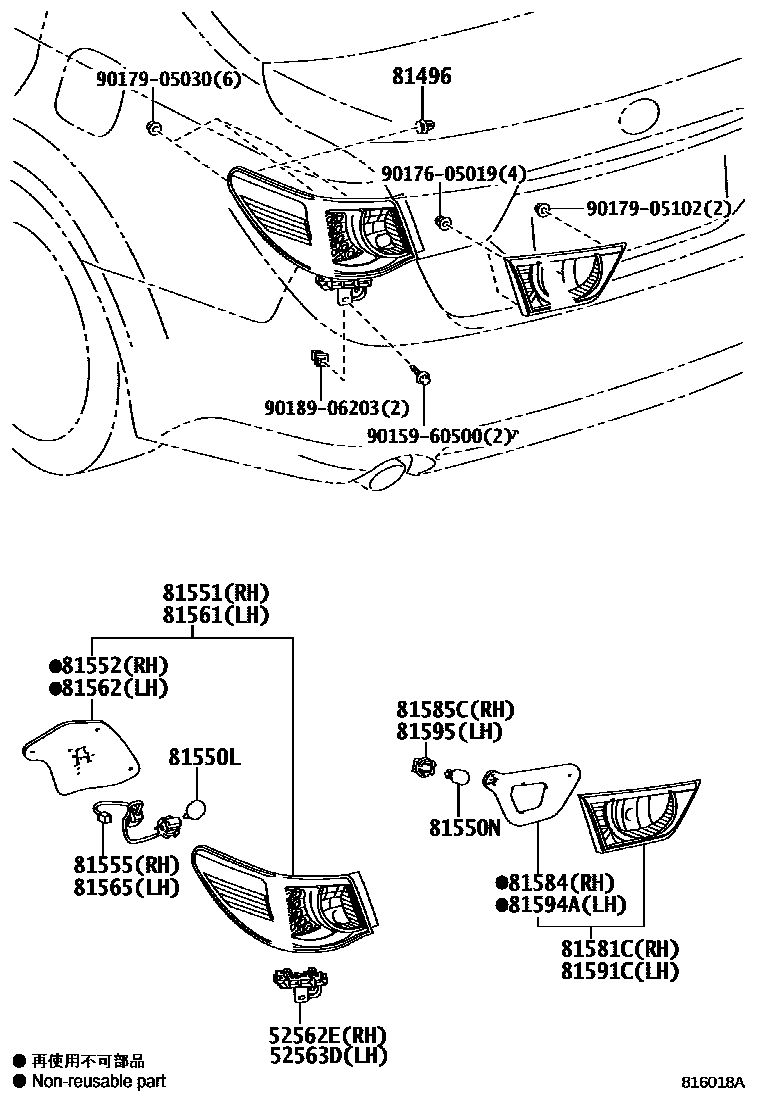

REAR COMBINATION LAMP

0001 1 0002 1

52562ERETAINER, REAR BUMPER, UPPER RH

main52562-22040iGRX130201112-201208

main52562-22050iGRX130201208-201611

52563DRETAINER, REAR BUMPER, UPPER LH

main52563-22030iGRX130201208-201611

main52563-22040iGRX130201112-201208

81496GUIDE, REAR COMBINATION LAMP

main81496-60010×2iGRX130201112-201208

81550LBULB, REAR TURN SIGNAL LAMP

main90981-13043×2iGRX130201112-201208

main90981-15021×2iGRX130201208-201611

81550NBULB, BACK UP LAMP

main90981-11059×2iGRX130201208-201611

81551LENS, REAR COMBINATION LAMP, RH

main81551-22A40supersedes 81551-22A50iGRX130201112-201208

S PACKAGE

81552GASKET, REAR COMBINATION LAMP LENS, RH

main81552-22A30iGRX130201112-201208

main81552-22A50iGRX130201208

81555SOCKET & WIRE SUB-ASSY, REAR COMBINATION LAMP, RH

main81555-22A30iGRX130201112-201208

main81555-22A50iGRX130201208-201611

81561LENS, REAR COMBINATION LAMP, LH

main81561-22A40supersedes 81561-22A50iGRX130201112-201208

S PACKAGE

81562GASKET, REAR COMBINATION LAMP LENS, LH

main81552-22A30iGRX130201112-201208

main81552-22A50iGRX130201208

81565SOCKET & WIRE SUB-ASSY, REAR COMBINATION LAMP, LH

main81555-22A30iGRX130201112-201208

main81555-22A50iGRX130201208-201611

81581CLENS AND BODY, REAR LAMP, RH

main81581-22130supersedes 81581-22120iGRX130201112-201208

S PACKAGE

81584PACKING, REAR LAMP RH

main81584-22120iGRX130201112-201208

main81584-22160iGRX130201208-201611

81585CSOCKET & WIRE, REAR LAMP, RH

main90075-99005iGRX130201112-201208

81591CLENS, REAR LAMP, LH

main81591-22130supersedes 81591-22120iGRX130201112-201208

S PACKAGE

81594AGASKET, REAR LAMP LH

main81594-22120iGRX130201112-201208

main81594-22160iGRX130201208-201611

81595SOCKET & WIRE, REAR LAMP, LH

main90075-99005iGRX130201112-201208

9015960500

main90159-60500

9017605019

main90176-05019

9017905030

main90179-05030

9017905102

main90179-05102

9018906203

main90189-06203

22 parts on this diagram · 2 diagrams in section
