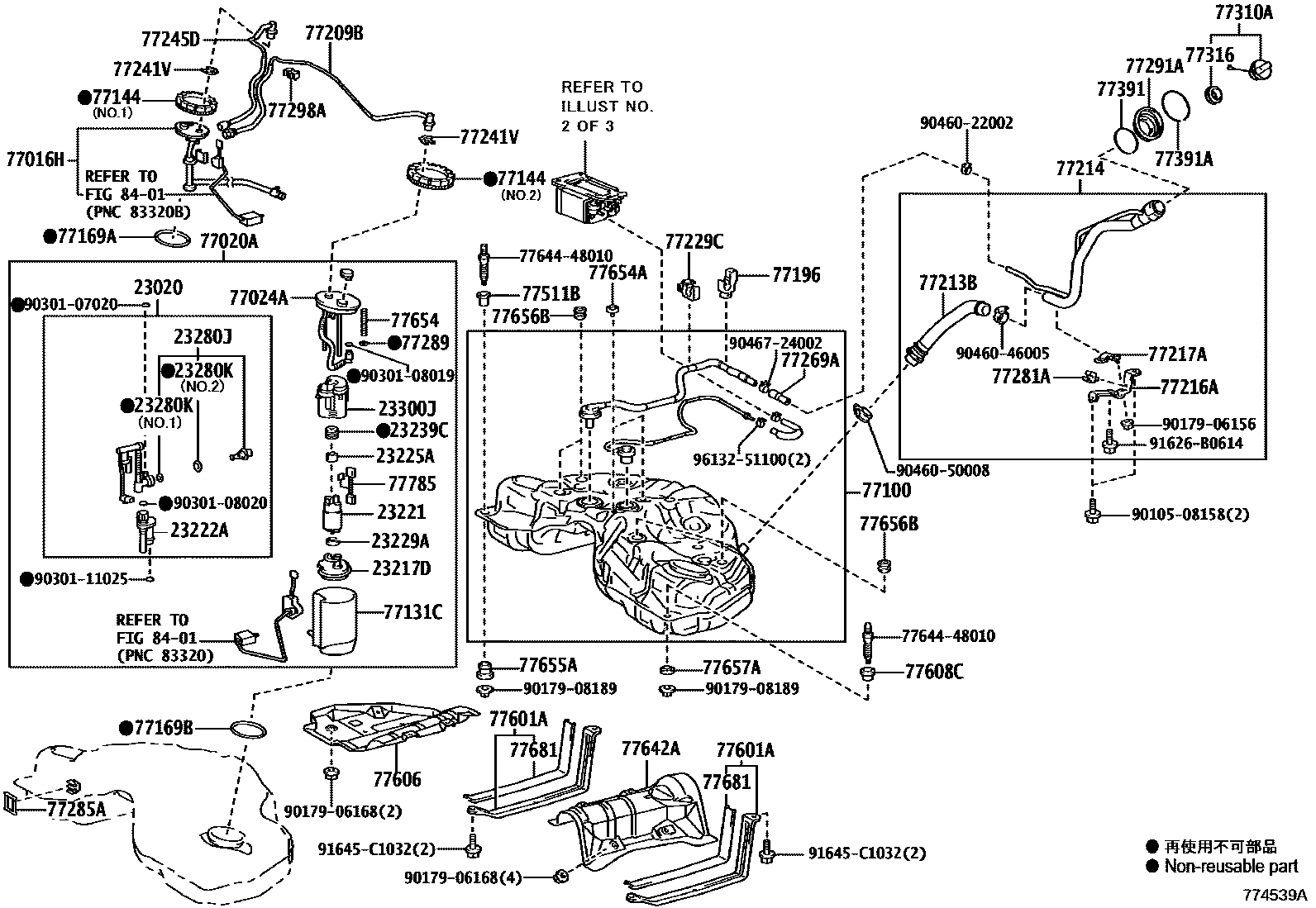

FUEL TANK & TUBE

23020REGULATOR ASSY, FUEL PRESSURE W/JET PUMP

main23020-31030i201208

23217DFILTER, FUEL PUMP

main23217-31100i201112-201208

23221PUMP, FUEL

main23221-31340i201112-201208

sub23220-31340

23222ATUBE, FUEL RETURN JET

main23222-31020i201112-201208

23225ASPACER, FUEL PUMP

main23225-21010i201112-201208

23229ACLIP(FOR FUEL PUMP FILTER)

main23229-16010i201112-201208

23239CSEAL, FUEL PUMP FILTER

main23239-21010i201112-201208

23280JREGULATOR ASSY, FUEL PRESSURE

main23280-31020i201112-201208

23280KRING, O(FOR FUEL PRESSURE REGULATOR)

main90301-04013i201208

NO.1

main90301-15024i201112-201208

NO.2

23300JFILTER ASSY, FUEL

main23300-31140i201112-201208

77016HTUBE SUB-ASSY, FUEL RETURN VENT

main77016-30080i201112-201208

77020ATUBE ASSY, FUEL SUCTION W/PUMP & GAGE

main77020-30292i201112-201208

77024APLATE SUB-ASSY, FUEL SUCTION

main77024-30110i201112-201208

77100TANK ASSY, FUEL

main77001-30561i201112-201208

77131CSUB-TANK, FUEL, NO.1

main77131-30071i201112-201208

77144RETAINER, FUEL PUMP GAUGE

main77144-30020i201112-201208

NO.1

main77144-47020i201208

NO.2

77169AGASKET, FUEL SUCTION TUBE SET

main77169-30010i201112-201208

77169BGASKET, FUEL SUCTION TUBE SET, NO.1

main77169-47030i201112-201208

77196CLAMP, EVAPORATION VENT TUBE, NO.1

main77196-30050i201112-201208

77209BTUBE SUB-ASSY, FUEL PUMP

main77209-30180i201112-201208

77213BHOSE, FUEL TANK TO FILLER PIPE

main77213-30191i201112-201208

77214PIPE, FUEL TANK FILLER

main77210-22080i201112-201202

main77210-22081i201203-201208

77216ASUPPORT, FUEL TANK FILLER PIPE, NO.1

main77216-30050i201112-201202

main77216-30051i201208

77217ASUPPORT, FUEL TANK FILLER PIPE, NO.2

main77217-30130i201112-201202

main77217-30131i201203-201208

77229CCLAMP, BREATHER TUBE

main77229-30050i201112-201208

77241VCLIP, TUBE JOINT

main77241-33011×2i201112-201208

77245DTUBE, FUEL TANK RETURN VENT

main77245-30170i201112-201208

77269AHOSE, FUEL TANK BREATHER

main77269-30060i201112-201208

77281ACLAMP, FUEL FILLER PIPE

main77281-50020i201112-201208

77285ASUPPORT, FUEL RETURN AND MAIN TUBE

main77285-30230i201112-201208

77289HOLDER, FUEL TANK PIPE SETTING

main77289-52090i201112-201208

77291ASHIELD, FUEL TANK FILLER PIPE

main77291-22110i201112-201208

77298ACLAMP, FUEL TUBE, NO.4

main77298-30180i201112-201208

77310ACAP ASSY, FUEL TANK

main77300-52030i201112-201208

77316GASKET, FUEL TANK CAP

main77316-52040i201112-201208

77391RING, FUEL INLET BOX

main77391-12020i201112-201208

77391ARING, FUEL INLET BOX

main77391-46010i201112-201208

77511BBRACKET, FUEL TANK

main77511-48030i201112-201208

77601ABAND SUB-ASSY, FUEL TANK, NO.1

main77601-30171×2i201112-201208

77606PROTECTOR SUB-ASSY, FUEL TANK, NO.1

main77606-30190i201112-201208

77608CCUSHION SET, FUEL TANK

main77608-48010i201112-201208

77642APROTECTOR, FUEL TANK, NO.2

main77642-30030i201112-201208

77654CUSHION, FUEL TANK, NO.2

main77652-30090i201112-201208

77654ACUSHION, FUEL TANK, NO.4

main77654-30020×2i201112-201208

77655ACUSHION, FUEL TANK, NO.5

main77655-30080i201112-201208

77656BCUSHION, FUEL TANK, NO.6

main77656-30030×4i201112-201208

77657ACUSHION, FUEL TANK, NO.5

main77655-48010i201112-201208

77681SEAT, FUEL TANK BAND, RH

main77681-30010×2i201112-201208

77785HARNESS, FUEL PUMP

main77785-30040i201112-201208

sub77785-30041

8401

7764448010BOLT, FUEL TANK

main77644-48010

9010508158

main90105-08158

9017906156

main90179-06156

9017906168

main90179-06168

9017908189

main90179-08189

9030107020

main90301-07020

9030108019

main90301-08019

9030108020

main90301-08020

9030111025

main90301-11025

9046022002

main90460-22002

9046046005

main90460-46005

9046050008

main90460-50008

9046724002

main90467-24002

91626B0614

main91626-B0614

91645C1032

main91645-C1032

9613251100

main96132-51100

66 parts on this diagram · 3 diagrams in section
