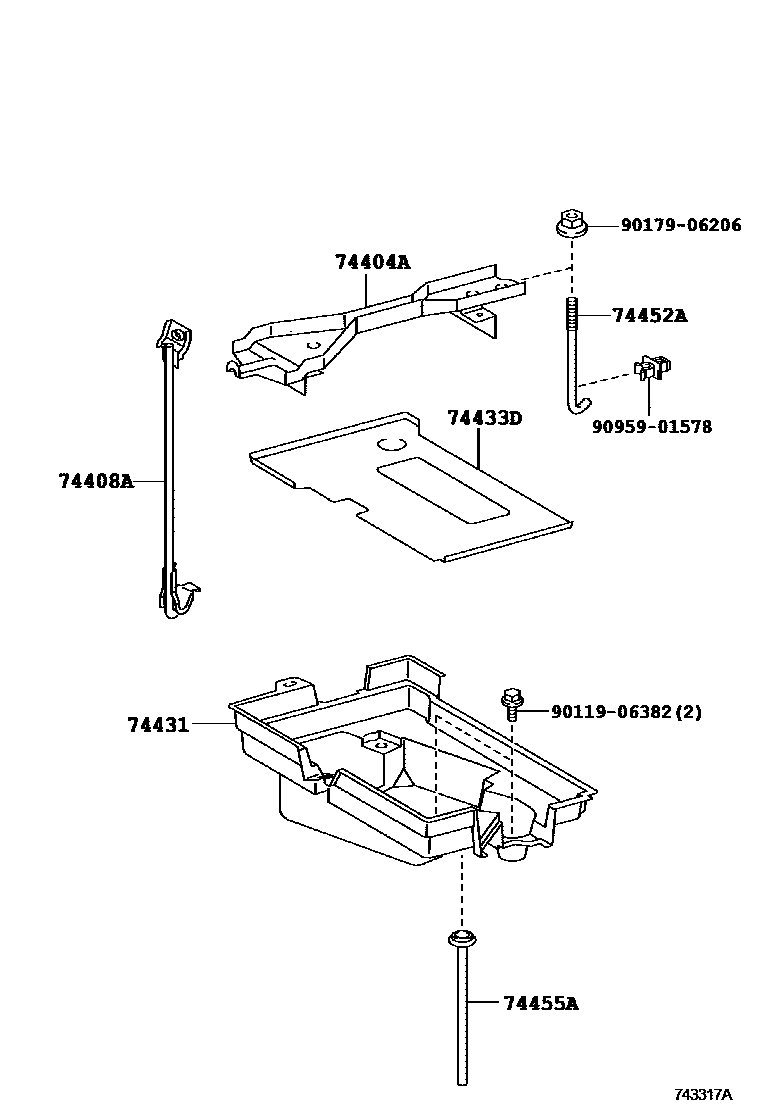

BATTERY CARRIER

74404ACLAMP SUB-ASSY, BATTERY

main74404-22370iGRX130201112-201208

74408ABOLT SUB-ASSY, BATTERY CLAMP, NO.2

main74408-22031iGRX130201112-201208

74431TRAY, BATTERY

main74431-30191iGRX130201112-201208

74433DSUPPORT, BATTERY TRAY,NO.1

main74433-30022iGRX130201112-201208

74452ABOLT, BATTERY CLAMP, NO.2

main74452-30010iGRX130201112-201208

74455AHOSE, BATTERY DRAIN

main74455-30020iGRX130201112-201208

9011906382

main90119-06382

9017906206

main90179-06206

9095901578

main90959-01578

9 parts on this diagram · 1 diagram in section
