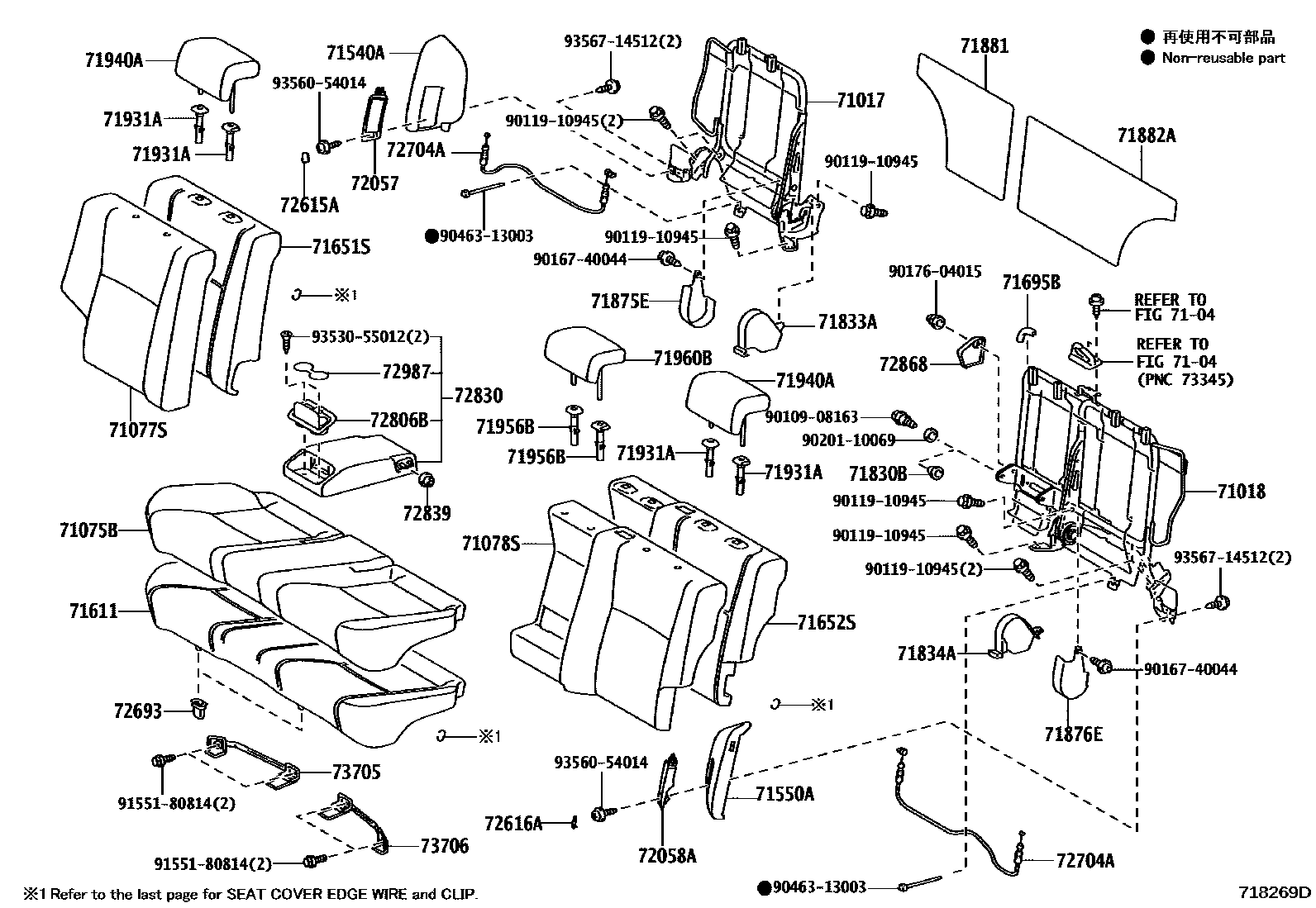

REAR SEAT & SEAT TRACK

0001 1 0002 1SEAT COVER EDGE WIRE & CLIP

71017FRAME SUB-ASSY, REAR SEATBACK, RH

main71017-22480iGRX130201112-201208

71018FRAME SUB-ASSY, REAR SEATBACK, LH

main71018-22050iGRX130201112-201208

7104SEAT BELT & CHILD RESTRAINT SEAT

→ Go to FIG 71-04

71075BCOVER, REAR SEAT CUSHION (FOR BENCH TYPE)

main71075-22A30-C0iGRX130201112-201208

BLACK,TRIM2#

main71075-22A40-C1iGRX130201208-201611

BLACK,TRIM2#

71077SCOVER, REAR SEATBACK, RH (FOR SEPARATE TYPE)

main71077-22A60-C0iGRX130201112-201208

BLACK,TRIM2#

main71077-22B40-C2iGRX130201208-201611

BLACK,TRIM2#

71078SCOVER, REAR SEATBACK, LH(FOR SEPARATE TYPE)

main71078-22100-C0iGRX130201112-201208

BLACK,TRIM2#

main71078-22190-C2iGRX130201208-201611

BLACK,TRIM2#

71540ABACK ASSY, REAR SIDE SEAT, RH

main71540-22060-C1iGRX130201112-201208

BLACK,TRIM2#

main71540-22070-C1iGRX130201208-201611

BLACK,TRIM2#

71550ABACK ASSY, REAR SIDE SEAT, LH

main71550-22060-C1iGRX130201112-201208

BLACK,TRIM2#

main71550-22070-C1iGRX130201208-201611

BLACK,TRIM2#

71611PAD, REAR SEAT CUSHION

main71503-22150iGRX130201112-201208

71651SPAD, REAR SEATBACK, RH(FOR SEPARATE TYPE)

main71651-22210iGRX130201112-201208

71652SPAD, REAR SEATBACK, LH(FOR SEPARATE TYPE)

main71652-22110iGRX130201112-201208

71695BPROTECTOR, REAR SEAT, NO.1 LH

main71695-22020iGRX130201112-201208

71830BBUSH(FOR REAR SEAT ARMREST)

main90386-10033iGRX130201112-201208

71833ACOVER, REAR SEAT RECLINING, NO.1 RH

main71833-22030-C0iGRX130201112-201611

BLACK,TRIM2#

71834ACOVER, REAR SEAT RECLINING, NO.1 LH

main71834-22040-C0iGRX130201112-201611

BLACK,TRIM2#

71875ECOVER, RECLINING ADJUSTER INSIDE, RH

main71875-22090iGRX130201112-201208

71876ECOVER, RECLINING ADJUSTER INSIDE, LH

main71876-22080iGRX130201112-201208

71881BOARD, REAR SEATBACK, RH

main71881-22020iGRX130201112-201208

71882ABOARD, REAR SEATBACK, LH

main71882-22020iGRX130201112-201208

71931ASUPPORT, REAR SEAT HEADREST

main71930-44020-C0iGRX130201112-201611

W(LOCK),BLACK,TRIM2#

main71931-47010-C0iGRX130201112-201611

W/O(LOCK),BLACK,TRIM2#

71940AHEADREST ASSY, REAR SEAT

main71940-22590-C0iGRX130201112-201208

BLACK,TRIM2#

main71940-22640-C2iGRX130201208-201611

BLACK,TRIM2#

71956BSUPPORT, REAR SEAT HEADREST

main71930-44020-C0iGRX130201112-201611

W(LOCK),BLACK,TRIM2#

main71931-47010-C0iGRX130201112-201611

W/O(LOCK),BLACK,TRIM2#

71960BHEADREST ASSY, REAR SEAT, CENTER

main71960-22040-C0iGRX130201112-201208

BLACK,TRIM2#

main71960-22050-C3iGRX130201208-201611

BLACK,TRIM2#

72057LEVER SUB-ASSY, REAR SEAT LOCK CONTROL, RH

main72057-22010-C0iGRX130201112-201611

BLACK,TRIM2#

72058ALEVER SUB-ASSY, REAR SEAT LOCK CONTROL, LH

main72058-22010-C0iGRX130201112-201611

BLACK,TRIM2#

72615ACOVER, REAR SEATBACK LOCK STRIKER, RH

main72615-22010-C0iGRX130201112-201611

BLACK,TRIM2#

72616ACOVER, REAR SEATBACK LOCK STRIKER, LH

main72615-22010-C0iGRX130201112-201611

BLACK,TRIM2#

72693HOOK, REAR SEAT CUSHION LOCK

main72693-12080iGRX130201112-201208

72704ACABLE, REAR SEAT RECLINING CONTROL

main72704-22010iGRX130201112-201208

72806BHOLDER SUB-ASSY, REAR SEAT CENTER ARMREST CUP

main72806-32010-C0iGRX130201112-201611

BLACK,TRIM2#

72830ARMREST ASSY, REAR SEAT, CENTER

main72830-22820-C0iGRX130201112-201208

BLACK,TRIM2#

main72830-22830-C3iGRX130201208-201611

BLACK,TRIM2#

72839SHIM, REAR SEAT ARMREST HINGE

main72839-22010iGRX130201112-201611

72868COVER, CENTER ARMREST HINGE, RH

main72868-22010-C0iGRX130201112-201611

BLACK,TRIM2#

72987COVER, REAR SEAT CENTER ARMREST

main72987-22010-C0iGRX130201112-201208

BLACK,TRIM2#

main72987-22010-C3iGRX130201208-201611

BLACK,TRIM2#

73705BRACKET SUB-ASSY, CHILD RESTRAINT SEAT ANCHOR, RH

main73705-30030iGRX130201112-201208

73706BRACKET SUB-ASSY, CHILD RESTRAINT SEAT ANCHOR, LH

main73706-30030iGRX130201112-201208

9010908163

main90109-08163

9011910945

main90119-10945

9016740044

main90167-40044

9017604015

main90176-04015

9020110069

main90201-10069

9046313003

main90463-13003

9155180814

main91551-80814

9353055012

main93530-55012

9356054014

main93560-54014

9356714512

main93567-14512

46 parts on this diagram · 2 diagrams in section
