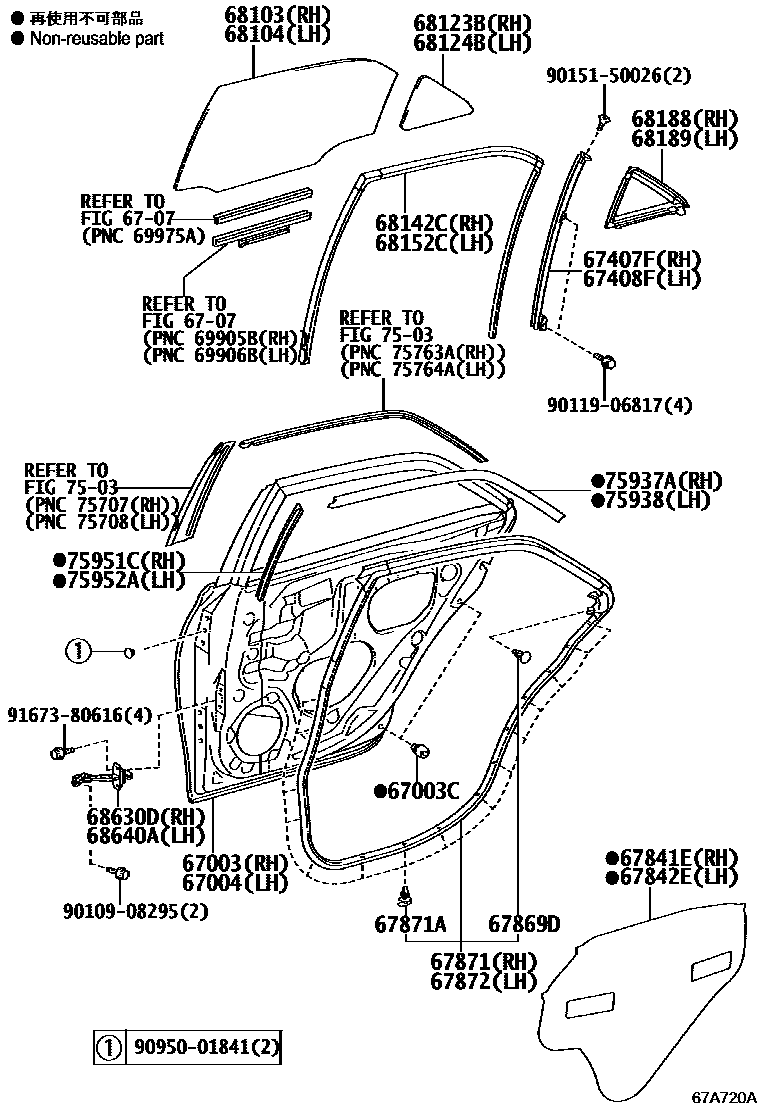

REAR DOOR PANEL & GLASS

0001 1DOOR PANEL 0002 1DOOR TRIM

67003PANEL SUB-ASSY, REAR DOOR, RH

main67003-22460iGRX130201112-201611

67003CCUSHION, REAR DOOR PANEL

main90541-09069iGRX130201112-201208

67004PANEL SUB-ASSY, REAR DOOR, LH

main67004-22470iGRX130201112-201208

6707REAR DOOR WINDOW REGULATOR & HINGE

→ Go to FIG 67-07

67407FFRAME SUB-ASSY, REAR DOOR WINDOW, REAR LOWER RH

main67407-22201iGRX130201112-201208

67408FFRAME SUB-ASSY, REAR DOOR WINDOW, REAR LOWER LH

main67408-22201iGRX130201112-201208

67841ECOVER, REAR DOOR SERVICE HOLE, RH

main67841-22310iGRX130201112-201208

67842ECOVER, REAR DOOR SERVICE HOLE, LH

main67842-22210iGRX130201112-201208

67869DCLIP, DOOR WEATHERSTRIP

main67868-30030iGRX130201112-201208

67871WEATHERSTRIP, REAR DOOR, RH

main67871-22320iGRX130201112-201208

67871ARETAINER(FOR REAR DOOR WEATHERSTRIP)

main67867-12150iGRX130201112-201208

67872WEATHERSTRIP, REAR DOOR, LH

main67872-22320iGRX130201112-201208

68103GLASS SUB-ASSY, REAR DOOR, RH

main68113-22470iGRX130201112-201611

68104GLASS SUB-ASSY, REAR DOOR, LH

main68114-22470iGRX130201112-201611

68123BGLASS, REAR DOOR QUARTER WINDOW, RH

main68123-22300iGRX130201112-201208

68124BGLASS, REAR DOOR QUARTER WINDOW, LH

main68124-22300iGRX130201112-201208

68142CRUN, REAR DOOR GLASS, RH

main68142-22180iGRX130201112-201308

main68142-22181iGRX130201309

68152CRUN, REAR DOOR GLASS, LH

main68152-22140iGRX130201112-201308

main68152-22141iGRX130201309

68188WEATHERSTRIP, REAR DOOR QUARTER WINDOW, RH

main68188-22120iGRX130201112-201208

68189WEATHERSTRIP, REAR DOOR QUARTER WINDOW, LH

main68189-22110iGRX130201112-201208

68630DCHECK ASSY, REAR DOOR, RH

main68630-22170iGRX130201112-201208

68640ACHECK ASSY, REAR DOOR, LH

main68640-22070iGRX130201112-201208

7503SIDE MOULDING

→ Go to FIG 75-03

75937ATAPE, BLACK OUT, INNER UPPER RH

main75987-22190iGRX130201112-201611

75938TAPE, BLACK OUT, INNER UPPER LH

main75988-22150iGRX130201112-201611

75951CTAPE, BLACK OUT, INNER FRONT RH

main75977-22040iGRX130201112-201611

75952ATAPE, BLACK OUT, INNER FRONT LH

main75978-22040iGRX130201112-201611

9010908295

main90109-08295

9011906817

main90119-06817

9015150026

main90151-50026

9095001841

main90950-01841

9167380616

main91673-80616

32 parts on this diagram · 2 diagrams in section
