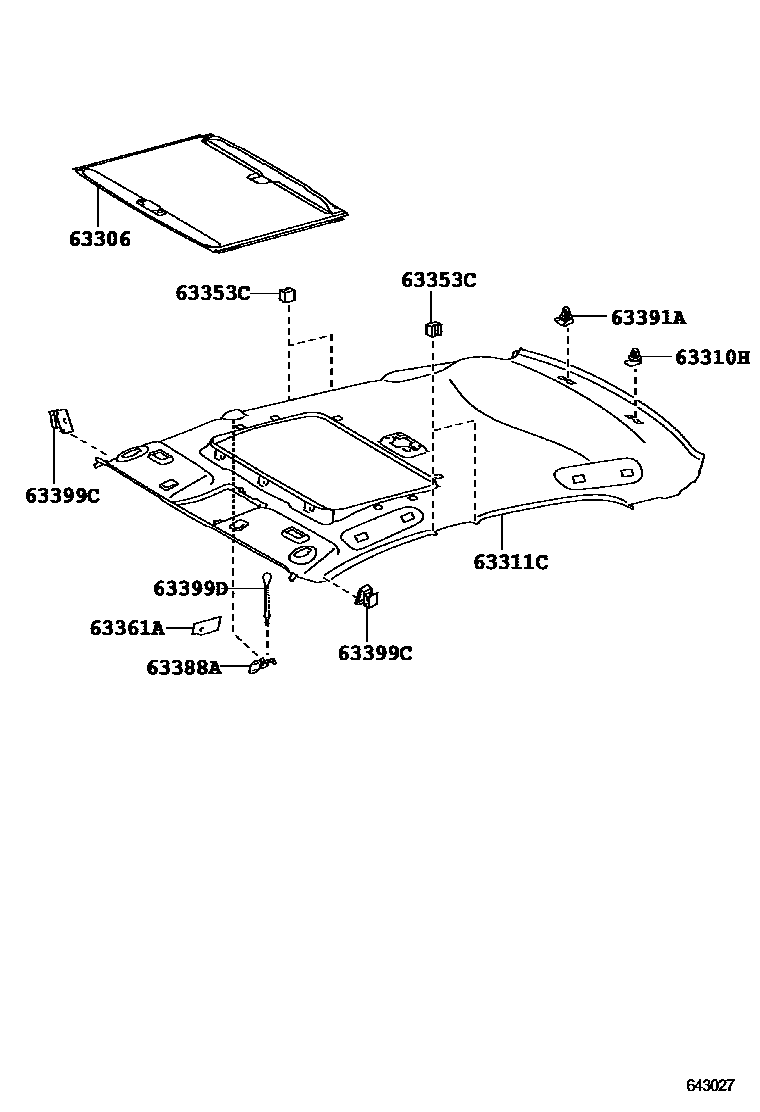

ROOF HEADLINING & SILENCER PAD

63306TRIM SUB-ASSY, SUNSHADE

main63306-12100-B5iGRX130201112-201208

LIGHT GRAY,TRIM2#

63310HCLIP(FOR ROOF HEADLINING)

main90467-09126iGRX130201112-201208

63311CHEADLINING, ROOF

main63311-22610-B0iGRX130201112-201208

LIGHT GRAY,TRIM2#

63353CPAD, ROOF HEADLINING, CENTER

main63353-22020×4iGRX130201112-201208

63361ASUPPORT, ROOF HEADLINING

main63361-22300iGRX130201112-201208

63388ACOVER, ROOF HEADLINING HOLDER

main63388-22030-B0iGRX130201112-201208

LIGHT GRAY,TRIM2#

63391ACLIP(FOR ROOF HEADLINING TRIM)

main90467-10181iGRX130201112-201208

63399CCLIP, ROOF HEADLINING

main63399-22020×2iGRX130201112-201208

63399DCLIP, ROOF HEADLINING

main63399-22010iGRX130201112-201208

9 parts on this diagram · 1 diagram in section
