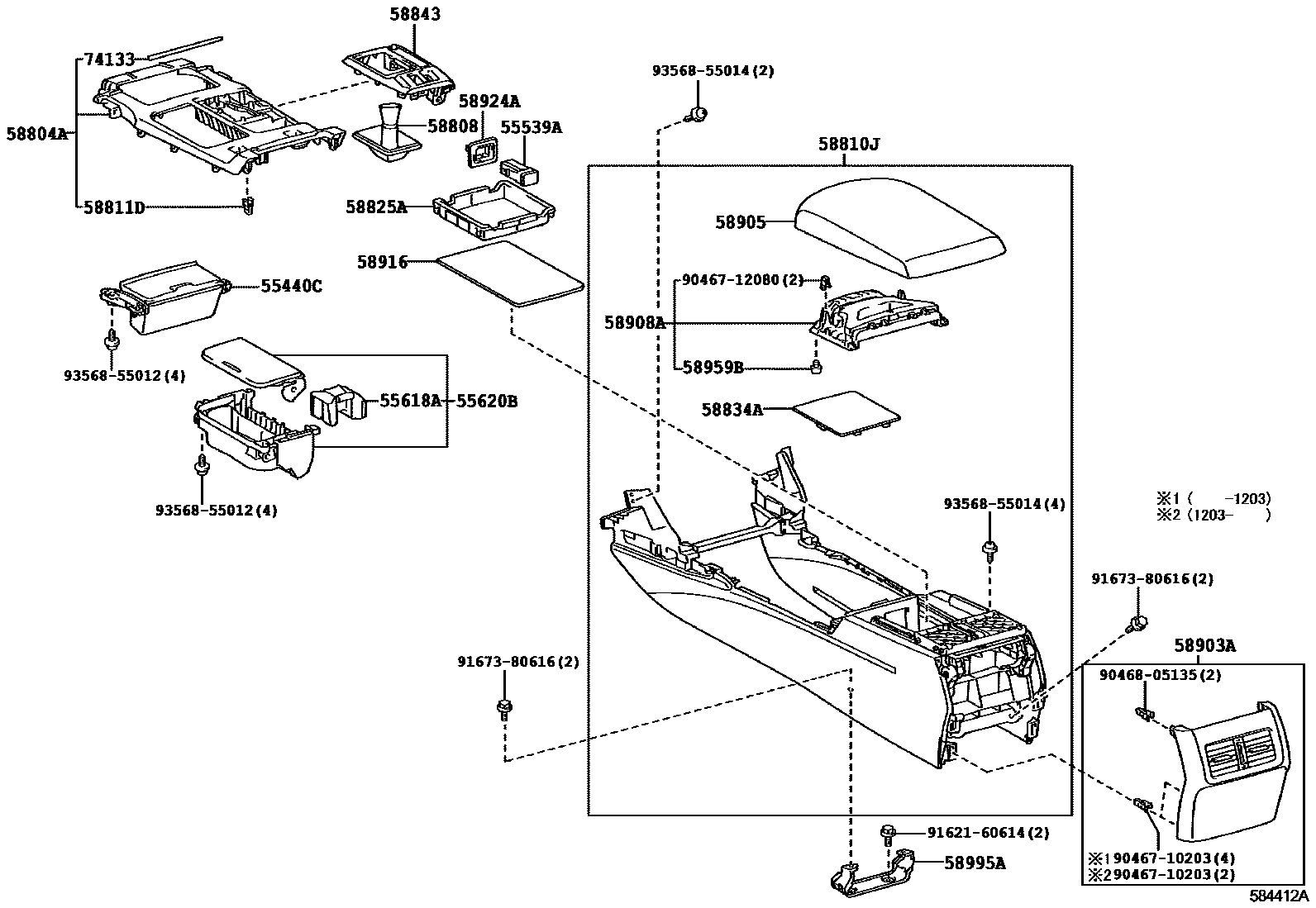

CONSOLE BOX & BRACKET
55440CBOX ASSY, INSTRUMENT PANEL
GRAY,TRIM2#
BLACK,TRIM2#
55539ACOVER, SPARE SWITCH HOLE
55618AHOLDER, CONSOLE BOX CUP
55620BHOLDER, INSTRUMENT PANEL CUP
GRAY,TRIM2#
BLACK,TRIM2#
58804APANEL SUB-ASSY, CONSOLE, UPPER
GRAY,TRIM2#
BLACK,TRIM2#
58808COVER SUB-ASSY, SHIFTING HOLE
58810JBOX ASSY, CONSOLE
58811DCLIP(FOR CONSOLE BOX)
58825APOCKET, CONSOLE BOX
58834ACOVER, CONSOLE, LOWER
58903APANEL SUB-ASSY, CONSOLE REAR END
BLACK,TRIM2#
58905DOOR SUB-ASSY, CONSOLE COMPARTMENT
58908ALOCK SUB-ASSY, CONSOLE COMPARTMENT DOOR
58916MAT, BOX BOTTOM
58924APANEL, CONSOLE REAR END, NO.2
58959BCUSHION, CONSOLE COMPARTMENT DOOR
58995ABRACKET, CONSOLE BOX MOUNTING, NO.1
74133SEAL, FRONT ASH RECEPTACLE
9046710203
main90467-10203
9046712080
main90467-12080
9046805135
main90468-05135
9162160614
main91621-60614
9167380616
main91673-80616
9356855012
main93568-55012
9356855014
main93568-55014
26 parts on this diagram · 1 diagram in section
