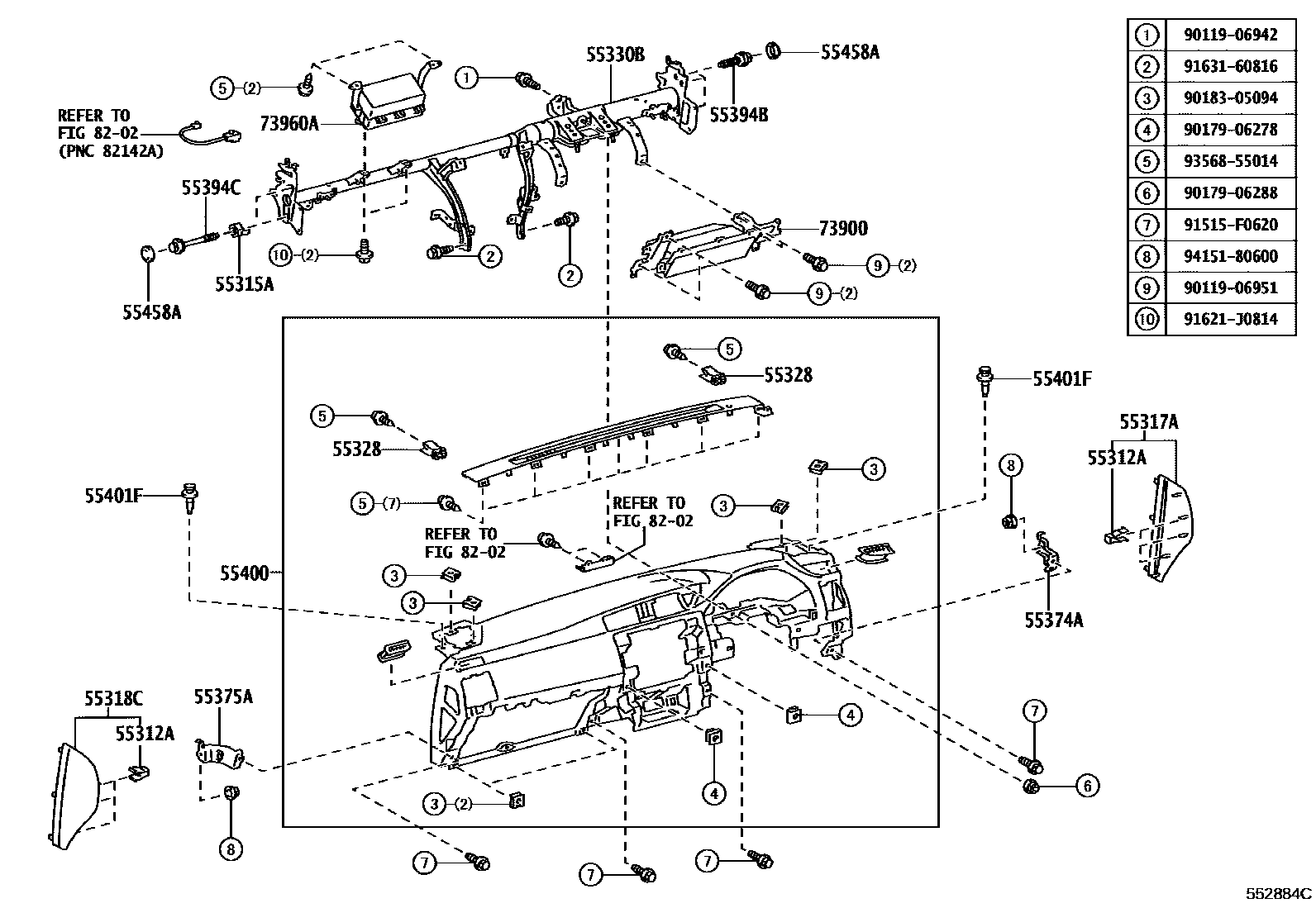

INSTRUMENT PANEL & GLOVE COMPARTMENT

0001 1 0002 1DRIVER SIDE 0003 1CENTER 0004 1PASSENGER SIDE

55312ACLIP, INSTRUMENT PANEL

main90467-13082-A0×6iGRX130201112-201208

MELLOW WHITE

55315ASPACER, INSTRUMENT PANEL, NO.1

main55315-53040×2iGRX130201112-201208

55317APANEL, INSTRUMENT SIDE, RH

main55317-22050-C0iGRX130201112-201208

BLACK,TRIM2#

55318CPANEL, INSTRUMENT SIDE, LH

main55318-22060-C0iGRX130201112-201208

BLACK,TRIM2#

55328PIN, INSTRUMENT PANEL, NO.1

main55328-60090×2iGRX130201112-201208

55330BREINFORCEMENT ASSY, INSTRUMENT PANEL

main55330-22200iGRX130201112-201208

55374ABRACKET, INSTRUMENT PANEL LOWER MOUNTING, RH

main55374-30270iGRX130201112-201208

55375ABRACKET, INSTRUMENT PANEL LOWER MOUNTING, LH

main55375-22110iGRX130201112-201208

55394BBOLT, INSTRUMENT PANEL

main55394-22030×3iGRX130201112-201208

55394CBOLT, INSTRUMENT PANEL

main55394-22040×2iGRX130201112-201208

55400PAD ASSY, INSTRUMENT PANEL SAFETY

main55400-22060-C0iGRX130201112-201208

BLACK,TRIM2#

main55400-22080-C0iGRX130201208-201611

BLACK,TRIM2#

55401FCLIP(FOR SAFETY PAD)

main52161-16010×2iGRX130201112-201208

sub52161-0K040

55458ACAP, INSTRUMENT PANEL SAFETY PAD

main55458-22110×5iGRX130201112-201208

73900AIRBAG ASSY, INSTRUMENT PANEL, LOWER NO.1

main73900-22050-C0iGRX130201112-201208

BLACK,TRIM2#

sub73900-22040

73960AAIRBAG ASSY, INSTRUMENT PANEL PASSENGER W/O DOOR

main73960-22040iGRX130201112-201208

8202

9011906942

main90119-06942

9011906951

main90119-06951

9017906278

main90179-06278

9017906288

main90179-06288

9018305094

main90183-05094

91515F0620

main91515-F0620

91621J0814

main91621-J0814

9163160816

main91631-60816

9356855014

main93568-55014

9415180600

main94151-80600

26 parts on this diagram · 4 diagrams in section
