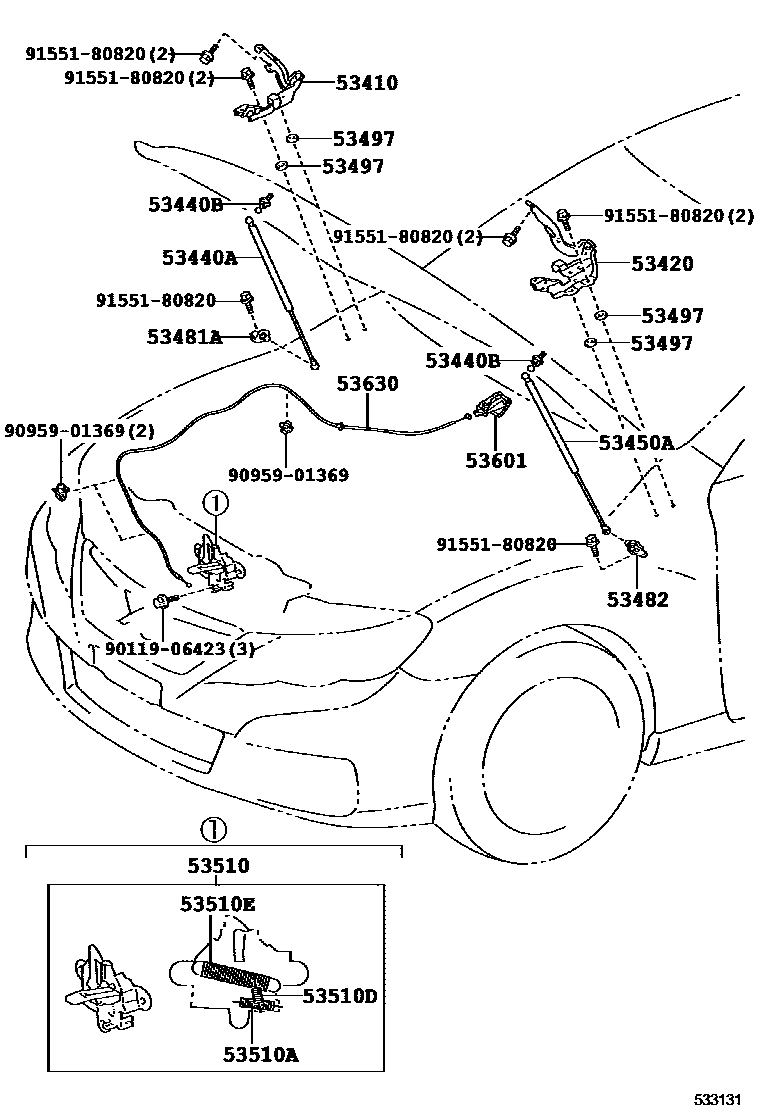

HOOD LOCK & HINGE

53410HINGE ASSY, HOOD, RH

main53410-22190iGRX130201112-201208

53420HINGE ASSY, HOOD, LH

main53420-22190iGRX130201112-201208

53440ASUPPORT ASSY, HOOD, RH

main53440-0W240iGRX130201112-201208

53440BBOLT, HOOD SUPPORT, NO.1

main68961-23010×2iGRX130201112-201208

53450ASUPPORT ASSY, HOOD, LH

main53450-0W200iGRX130201112-201208

53481ABRACKET, HOOD SUPPORT, RH

main53481-33010iGRX130201112-201208

53482BRACKET, HOOD SUPPORT, LH

main53481-33010iGRX130201112-201208

53497PAD, HOOD HINGE, NO.1

main53497-50020×4iGRX130201112-201208

T=1.0

53510LOCK ASSY, HOOD

main53510-22410iGRX130201112-201208

main53510-22430iGRX130201208

53510ASPRING, TENSION(FOR HOOD LOCK)

main90506-09055iGRX130201112-201208

WD=0.9,CW=21

53510DSPRING, TENSION(FOR HOOD LOCK)

main90506-12063iGRX130201112-201208

WD=1.2,CW=8.5

53510ESPRING, TENSION(FOR HOOD LOCK)

main90506-18067iGRX130201112-201208

WD=1.8,CW=13

53601LEVER SUB-ASSY, HOOD LOCK CONTROL

main53601-52010-C0iGRX130201112-201208

BLACK,TRIM2#

53630CABLE ASSY, HOOD LOCK CONTROL

main53630-22260iGRX130201112-201208

9011906423

main90119-06423

9095901369

main90959-01369

9155180820

main91551-80820

17 parts on this diagram · 1 diagram in section
